Velodyne VA 1012 - Installation Using FROM AMPLIFIER Inputs

INSTAL LATI ON OF VA 101 2 USING FROM AMPLIFIER INPUTS
Figure 1 shows an easy way to connect your VA 1012 to a receiver or integrated amplifier. You can also
connect your satellites directly to your receiver or amplifier along with the subwoofer.
Observe right and
left channel designations above terminals. Red term in als are positive, black terminals are
negative
(c ommon).
AMPLIFIER OR RECEI V ER
R L
. - -
•
'J
-
T S
EA'
S
RGe E
'1
117 VAC
50160 HZ
2A MPSMA X
SATELLITE SPE AKERS
R IG HT
+ -
II ,
FROM
AMPLIfiER
(LEFT I [I'll HTI
LE FT
+ -
I Q ) I
LINE IN
1'::'1
NOTE:
VA 1012
REAR PANEL
REDT
EAM IN ALS ARE
VE, BLACK POSITI
TERMI NALS ARE NEGATIVE

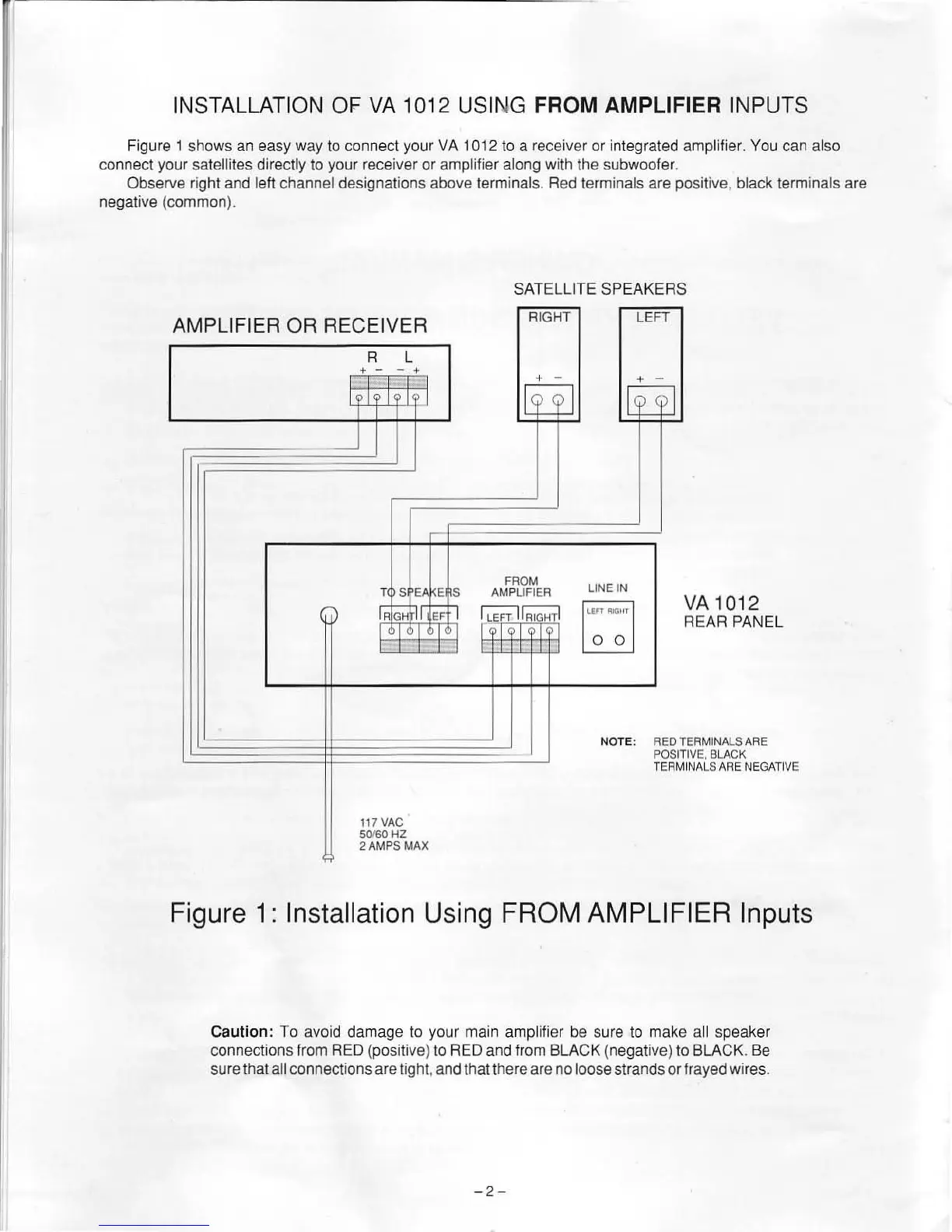

Figure 1: Installation Using FROM AMPLIFIER Inputs
Caution: To avoid damage to your main amplifier be sure to make all speaker
connections from RED (positive) to RED and from BLACK (negative) to BLACK. Be
sure thaI all connections are tig ht. and that there are no loose strands or frayed wi res.
-2 -
