Venitem GIUDECCA - Correct Mounting Directions; Installation Depth Limit; Built-in Box Orientation; Protective Cover Installation

3

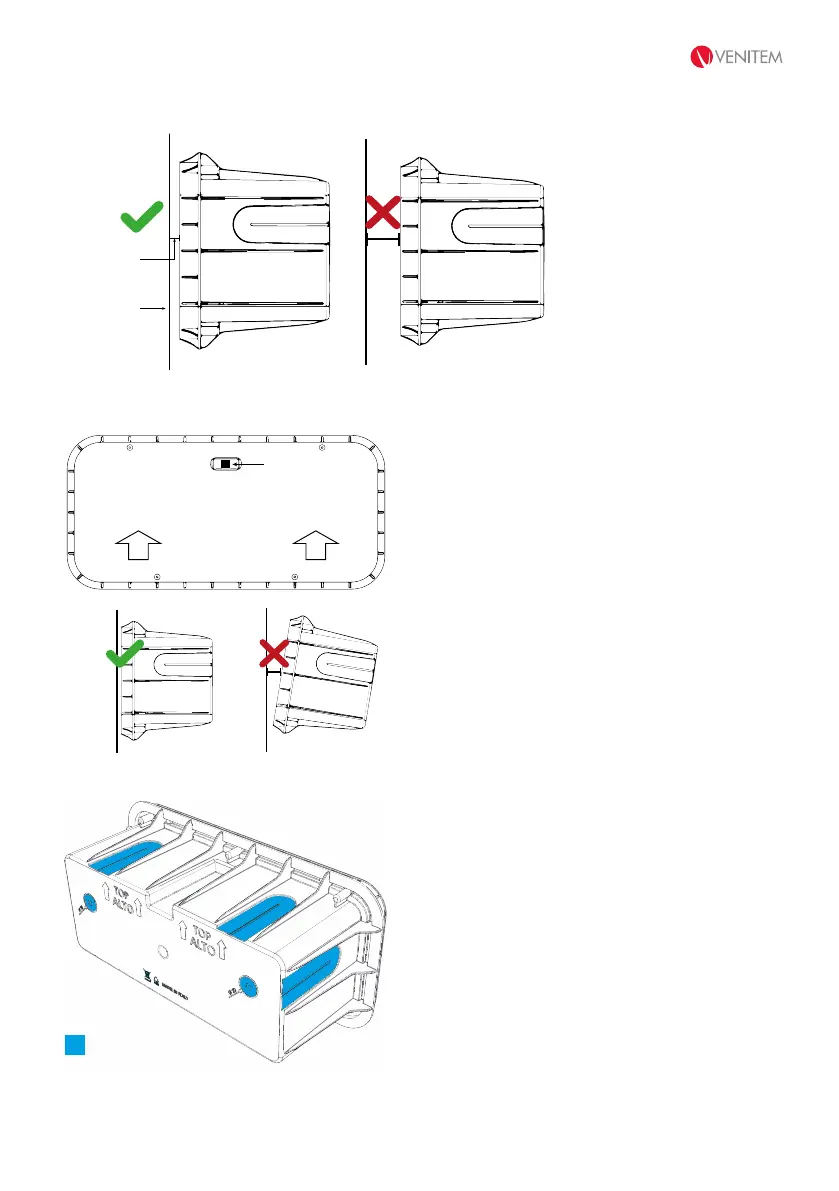

2. Install the built-in box according to direction and
correct spirit level orientation.
3. To avoid box damaging and contamination with
construction material, install the protective cover
using the 4 screws provided.
4. Pay attention at box drilling. Holes must be drilled
only where indicated, otherwise internal components
may be improperly housed. Drill only where strictly
necessary.
MAX 5 mm
Flush
Drillable area
Spirit level
ALTO/UP
MAX 5 mm
Flush
Drillable area
Spirit level
ALTO/UP
MAX 5 mm
Flush
Drillable area
Spirit level
ALTO/UP
DIRECTIONS FOR A CORRECT MOUNTING
MAX 5 mm
Filomuro
Zona forabile
Livella a bolla
ALTO/UP
MAX 5 mm
Filomuro
Zona forabile
Livella a bolla
ALTO/UP
MAX 5 mm
Filomuro
Zona forabile
Livella a bolla
ALTO/UP
1. To ensure a correct functioning
of the tamper, maximum
installation depth from flush is
5 mm.
