Venmar vanEE 1000 HE - 3.2 Performance Charts

3.0 Technical Data (cont’d)
9
Models numbers: Venmar 1.3 HE and vänEE 1000 HE
Electrical requirements: 120 volts, 1.2 Amps
Exhaust Air Transfer Ratio: 0.02

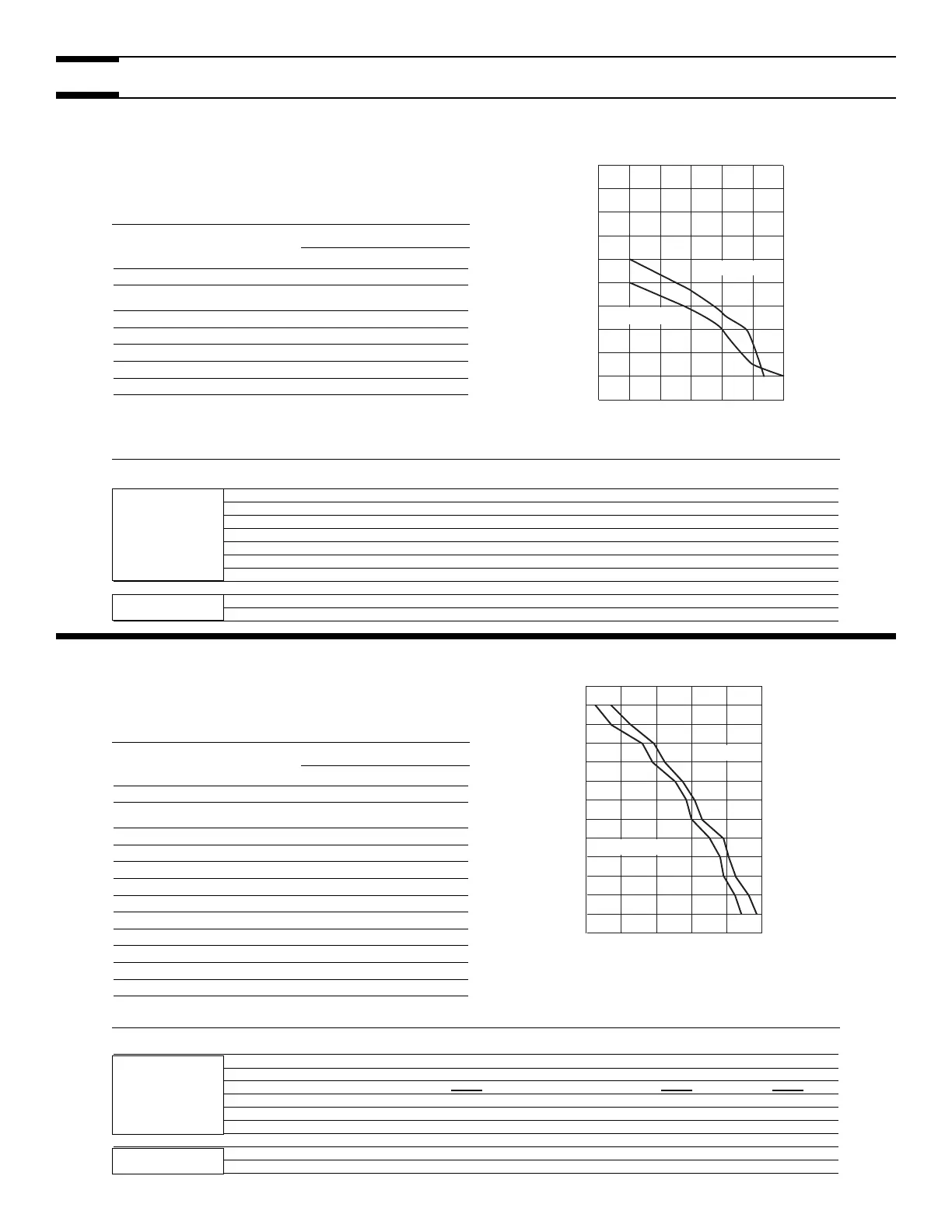

3.2 Performance Charts
VG0007A
VENTILATION PERFORMANCE
External Static Net Supply Gross Air Flow
Pressure Air Flow Supply Exhaust
Pa in. w.g. l/s cfm l/s cfm l/s cfm
25 0.1 72 152 73 155 75 159
50 0.2 69 145 70 148 69 146
75 0.3 67 141 68 144 66 140
100 0.4 63 133 64 136 60 127
125 0.5 58 123 59 125 50 106
150 0.6 49 104 50 106 3 6
External Static Pressure - Pascals
(250 Pascals = 1” of water)
Gross Airflow - l/s
(0.47 l/s = 1 cfm)
225
200
175
150
125
100
75
50
25
250
0
45
50
55 60 65
70 75
EXHAUST
SUPPLY
ENERGY PERFORMANCE
Supply Net Average Sensible Recovery Apparent Sensible Latent Recovery
Temperature Airflow Power Efficiency Effectiveness Moisture Transfer
°C °F l/s cfm Watts % %
0 32 30 64 103 81 92 0.02
0 32 46 99 115 76 85 0.03
0 32 54 106 117 72 80 0.02
-25 -13 30 64 110 69 89 0.11
-25 -13
-25 -13
Total Recovery Efficiency
35 95 34 72 105 23
35 95 50 106 109 26
HEATING
COOLING
Model numbers: Venmar 1.8 HE and vänEE 2000 HE
Electrical requirements: 120 volts, 2.5 Amps
Exhaust Air Transfer Ratio: 0.06
VG0006A
VENTILATION PERFORMANCE
External Static Net Supply Gross Air Flow
Pressure Air Flow Supply Exhaust
Pa in. w.g. l/s cfm l/s cfm l/s cfm
25 0.1 109 231 116 246 107 227
50 0.2 107 227 114 242 103 218
75 0.3 99 209 105 222 97 206
100 0.4 93 197 99 210 93 197
125 0.5 89 189 95 201 88 186
150 0.6 81 171 86 182 81 172
175 0.7 75 159 80 169 76 161
200 0.8 68 143 72 153 69 146
225 0.9 62 131 66 140 58 123
250 1.0 55 116 58 123 50 106
275 1.1 43 92 46 97 35 74
External Static Pressure - Pascals
(250 Pascals = 1” of water)
Gross Airflow - l/s
(0.47 l/s = 1 cfm)
Gross Airflow - L/s
325
300
275
250
225
200
175
150
125
100
75
50
25
0
20 40 60 80 100 120
•
••
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
EXHAUST
SUPPLY
ENERGY PERFORMANCE
Supply Net Average Sensible Recovery Apparent Sensible Latent Recovery
Temperature Airflow Power Efficiency Effectiveness Moisture Transfer
°C °F l/s cfm Watts % %
0 32 52 111 158 84 95 0.05
0 32 55 117 84
0 32 71 151 184 79 90 0.03
0 32 84 179 210 79 89 0.12
-25 -13 57 121 176 72 88 -0.04
Total Recovery Efficiency
35 95 55 117 160 13
35 95 76 162 198 15
HEATING
COOLING
