INSTALLATION, USE,
MAINTENANCE MANUAL
Vers. 2018-0
centrifugal fan coil unit
6
RECOMMENDATIONS FOR INSTALLATION
FAN COIL INSTALLATION
Before installing the appliance, ensure that:
1) the place of installation has sufcient space for carrying out installation as
well as routine and extraordinary maintenance work (see Pic. 4).
2) There are no obstructions for air intake and delivery.
3) The water connections are of the sizes, in the position and spaced apart as
required by the appliance (see Dimension).
4) The system pressure does not exceed 8 bar for the water versions.
5) The electricity supply corresponds to the data on the appliance rating plate
and that there is a afety switch readily accessible to the user to cut off the power
supply whenever necessary.
6) The safety switch is in the OFF position so that there is no voltage on the
appliance supply line.
Before installing the appliance, remove the cabinet, if present (Pic.5) and put it
in the packing box to prevent it from being soiled or damaged. (Pic.6)
130 mm
1
5
0
m
m
1
5
0
m
m
150 mm
Pic. 04

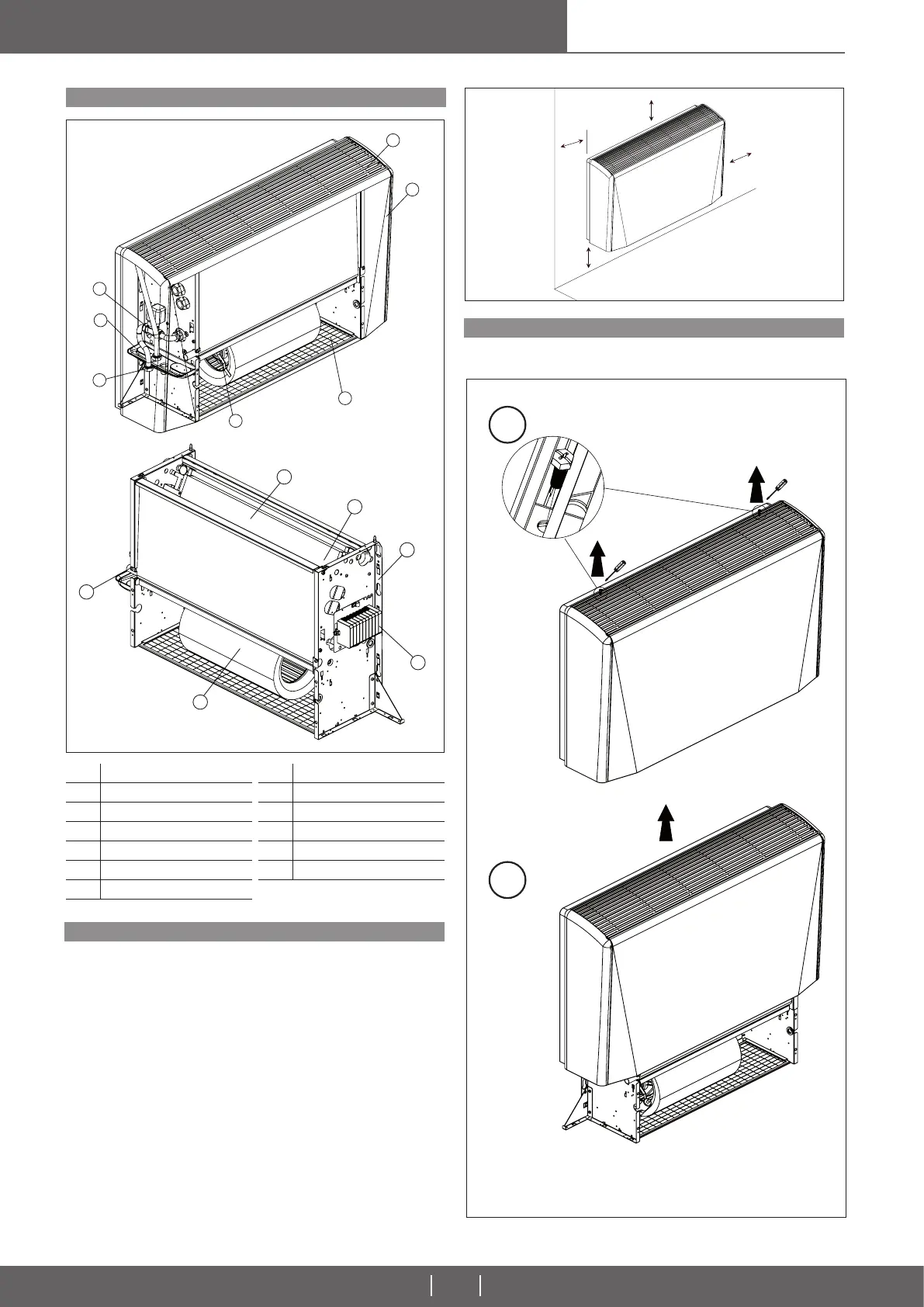

MAIN COMPONENTS
1 Heat exchanger
2 Water low temperature sensor
3 Drain pan
4 Air lter
5 Electric motor
6 Centrifugal fan
7 Condense discharge
8 Valves
9 Auxiliary drain pan
10 Cabinet
11 Bearing structure
12 Terminal board
13 Supply grills
4
5
3
8
9
13
10
6
7
2
12
11
1
Pic. 05
Pic. 03
1
2
