TECHNICAL MANUAL

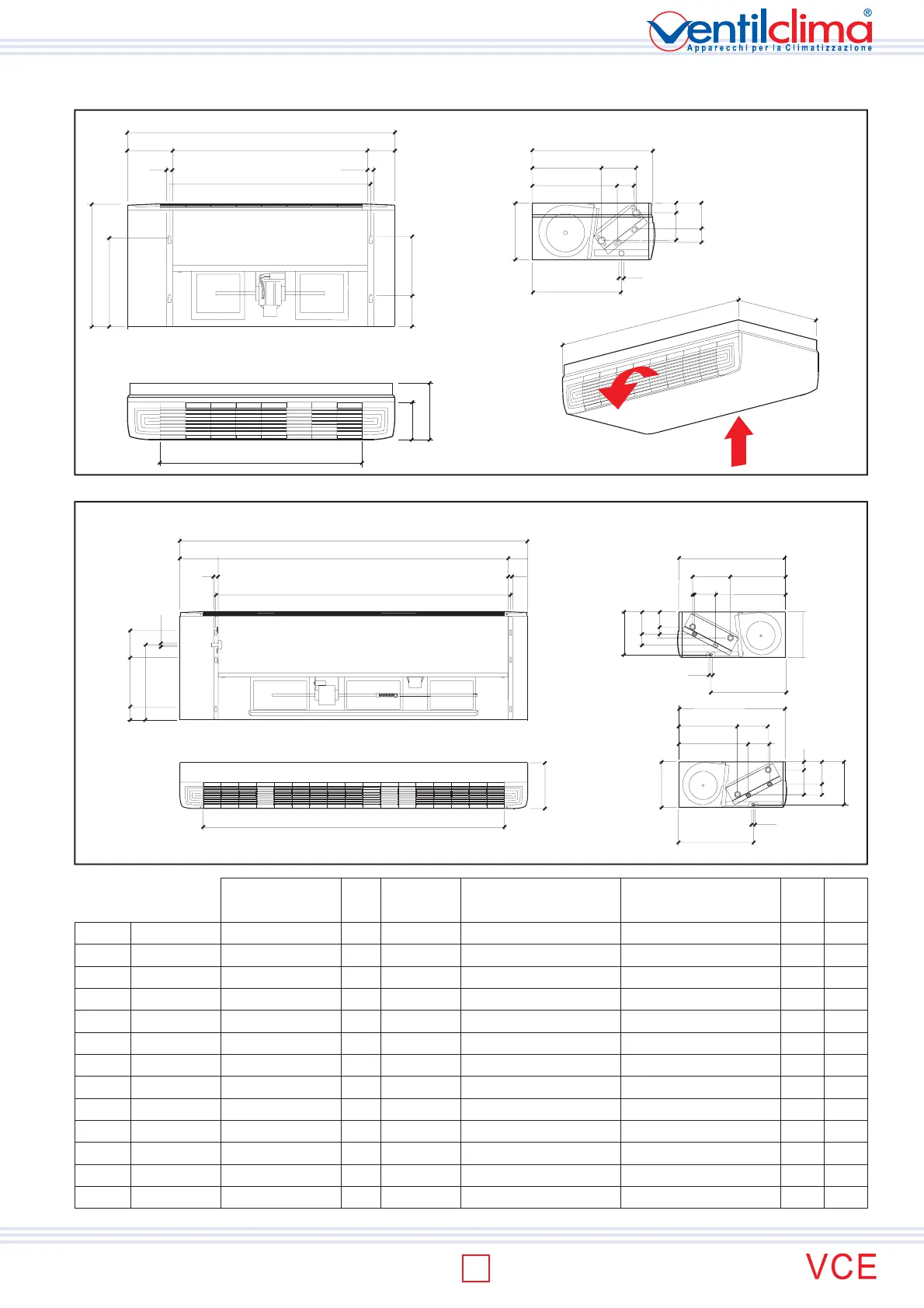

VERSIONE 9 - Horizontal ceiling models with cabinet (bottom air intake with socle)
N.B.: On the models VCE109, VCE119 and VCE129 the fold on the cabinet is not foreseen!
Dimensions Standard coil Auxiliary coilDistance
between slots
N.o
grilles
MOD. CODE H L S C D G N Y A B M X E F I O
VCE19 A0015090019 480 660 225 370 395 233 39 109 274 137 103 53 337 67 4 352
VCE29 A0015090029 480 860 225 570 595 233 39 109 274 137 103 53 337 67 6 352
VCE39 A0015090039 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8 352
VCE49 A0015090049 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8 352
VCE59 A0015090059 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10 352
VCE69 A0015090069 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10 352
VCE79 A0015090079 585 1.260 225 970 995 253 41 107 268 253 101 52 374 124 10 402
VCE89 A0015090089 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12 402
VCE99 A0015090099 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12 402
VCE109 A0015090109 605 1.661 257 1.335 1.362 - - - - - - - - - 14 422
VCE119 A0015090119 605 1.961 257 1.635 1.662 - - - - - - - - - 17 422
VCE129 A0015090129 605 1.961 257 1.635 1.662 - - - - - - - - - 17 422
Conden.
fitting
VCE 19-99
C
D
L
179
108
25
25
O
H
G
122
H
A
B
E
F
M
X
N
Y
Ø 20
O
S
S
148
I
L
H
C
D
L
216
116
25
25
O
72
278 153
Ø 20
I
S
389
120
328
175
77
62
114
H
S
Ø 20
63
O
S
Ø 20
O
H
120
389
215
308
39
62
114
141
LEFT
VERSION
RIGHT
VERSION
236
236
VCE 109-129
range
25
