VentilClima VCE10 - Vertical Recessed Versions and Dimensions

TECHNICAL MANUAL
range

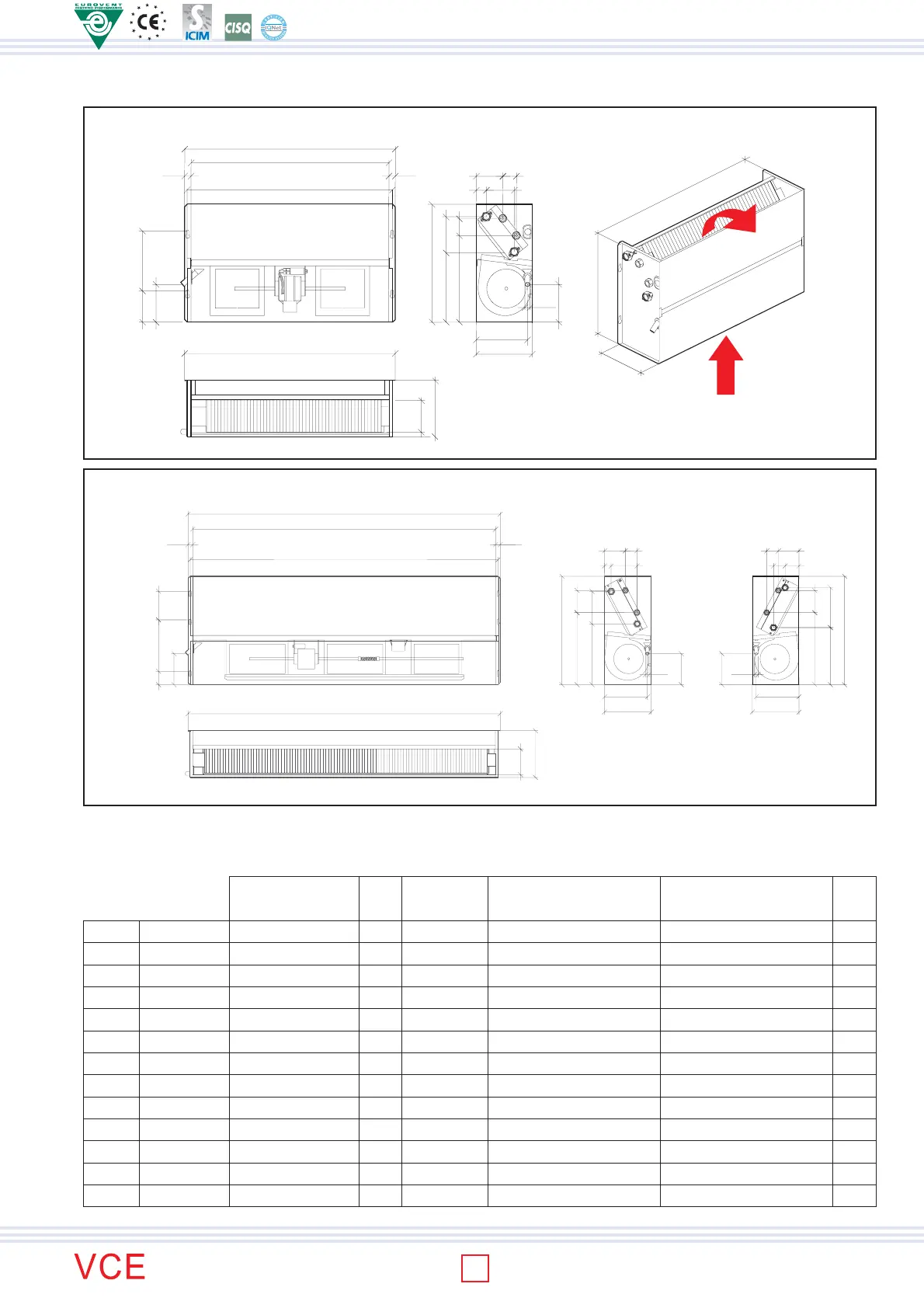

VERSIONE 2 - Versioni verticali ad incasso (mandata dell'aria verso l'alto)
VCE 12-92
S
O
L
C
D
L
25
25
147
122 G
H
A
B
E
F
M
X
N
Y
Ø20
147
200
S
L
H
S
L
S
O
C
D
L
25
25
167
72 278 153
328
175
389
120
112
62
36
141
Ø 20
167
H
231
S
LEFT
VERSION
H
167
Ø 20
231
S
62
111
7563
120
389
215
308
RIGHT
VERSION
VCE 12-92
Dimensions Standard coil Auxiliary coilDistance
between slots
MOD. CODE H L S C D G N Y A B M X E F O
VCE12 A0015090012 460 420 220 370 395 233 39 109 274 137 103 53 337 67 134
VCE22 A0015090022 460 620 220 570 595 233 39 109 274 137 103 53 337 67 134
VCE32 A0015090032 460 820 220 770 795 233 39 109 274 137 103 53 337 67 134
VCE42 A0015090042 460 820 220 770 795 233 39 109 274 137 103 53 337 67 134
VCE52 A0015090052 460 1.020 220 970 995 233 39 109 274 137 103 53 337 67 134
VCE62 A0015090062 460 1.020 220 970 995 233 39 109 274 137 103 53 337 67 134
VCE72 A0015090072 565 1.020 220 970 995 253 41 107 268 253 101 52 374 124 119
VCE82 A0015090082 565 1.220 220 1.170 1.195 253 41 107 268 253 101 52 374 124 119
VCE92 A0015090092 565 1.220 220 1.170 1.195 253 41 107 268 253 101 52 374 124 119
VCE102 A0015090102 585 1.385 252 1.335 1.362 - - - - - - - - - 139
VCE112 A0015090112 585 1.685 252 1.635 1.662 - - - - - - - - - 139
VCE122 A0015090122 585 1.685 252 1.635 1.662 - - - - - - - - - 139
