TECHNICAL MANUAL
range

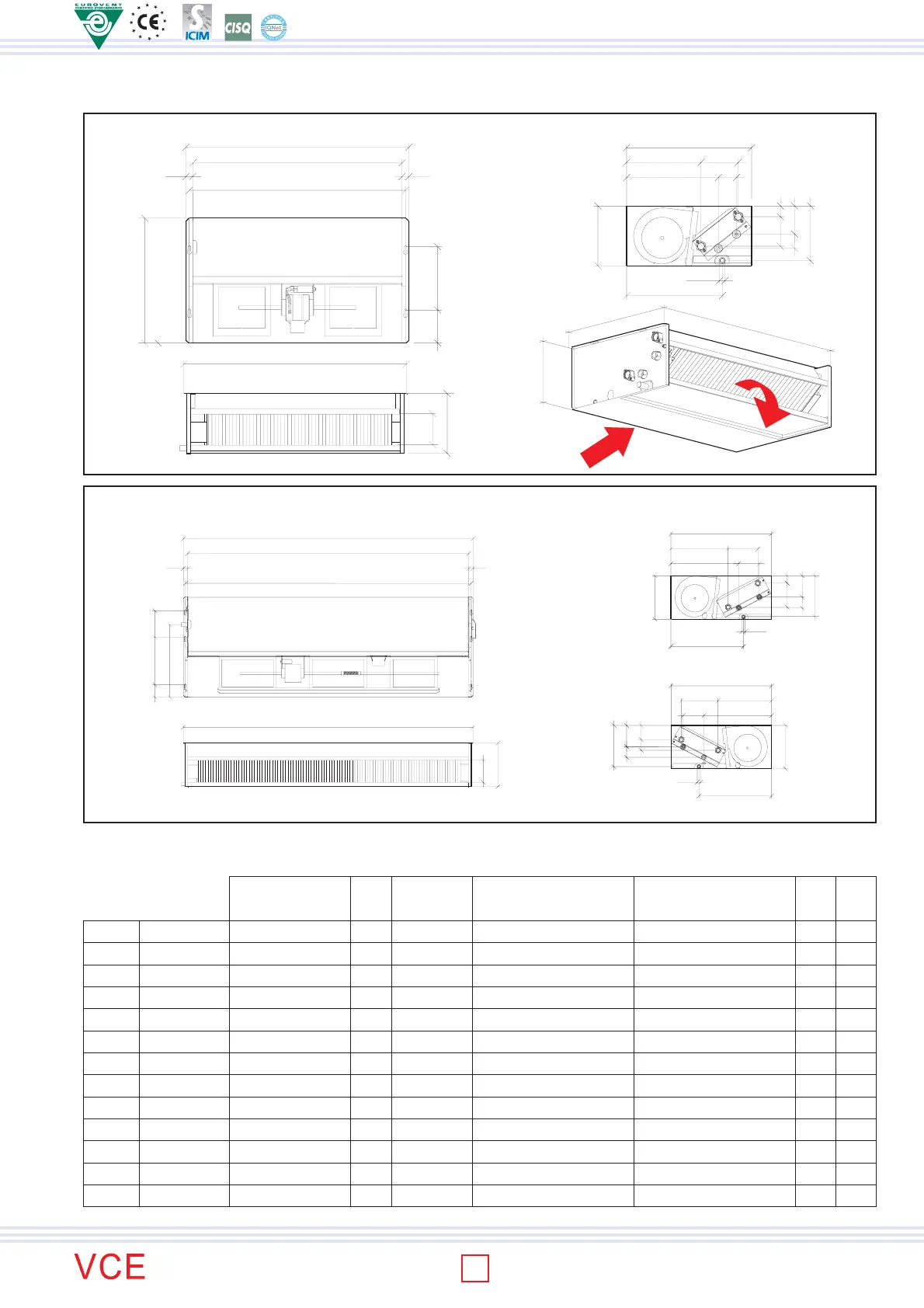

VERSIONE 3 - Horizontal ceiling recessed models (top air dischange)
VCE 13-93
C
D
L
25
25
O
H
G
122
H
A
B
E
F
M
X
N
Y
Ø 20
O
S
201
S
I
L
H
L
S
VCE 103-123
C
D
L
25
25
O
72
278
153
S
I
L
389
120
308
215
75
62
113
H
S
Ø 20
62
O
RIGHT
VERSION
236
O
Ø 20
S
113
141
36
62
120
388
175
328
H
LEFT
VERSION
236
Dimensions Standard coil Auxiliary coilDistance
between slots
MOD. CODICE H L S C D G N Y A B M X E F I O
VCE13 A0015090013 460 420 220 370 395 233 39 109 274 137 103 53 337 67 115 352
VCE23 A0015090023 460 620 220 570 595 233 39 109 274 137 103 53 337 67 115 352
VCE33 A0015090033 460 820 220 770 795 233 39 109 274 137 103 53 337 67 115 352
VCE43 A0015090043 460 820 220 770 795 233 39 109 274 137 103 53 337 67 115 352
VCE53 A0015090053 460 1.020 220 970 995 233 39 109 274 137 103 53 337 67 115 352
VCE63 A0015090063 460 1.020 220 970 995 233 39 109 274 137 103 53 337 67 115 352
VCE73 A0015090073 565 1.020 220 970 995 253 41 107 268 253 101 52 374 124 99 402
VCE83 A0015090083 565 1.220 220 1.170 1.195 253 41 107 268 253 101 52 374 124 99 402
VCE93 A0015090093 565 1.220 220 1.170 1.195 253 41 107 268 253 101 52 374 124 99 402
VCE103 A0015090103 585 1.385 252 1.335 1.362 - - - - - - - - - 129 422
VCE113 A0015090113 585 1.685 252 1.635 1.662 - - - - - - - - - 129 422
VCE123 A0015090123 585 1.685 252 1.635 1.662 - - - - - - - - - 129 422
