VentilClima VCE20 - Horizontal Ceiling Unit Dimensions

TECHNICAL MANUAL

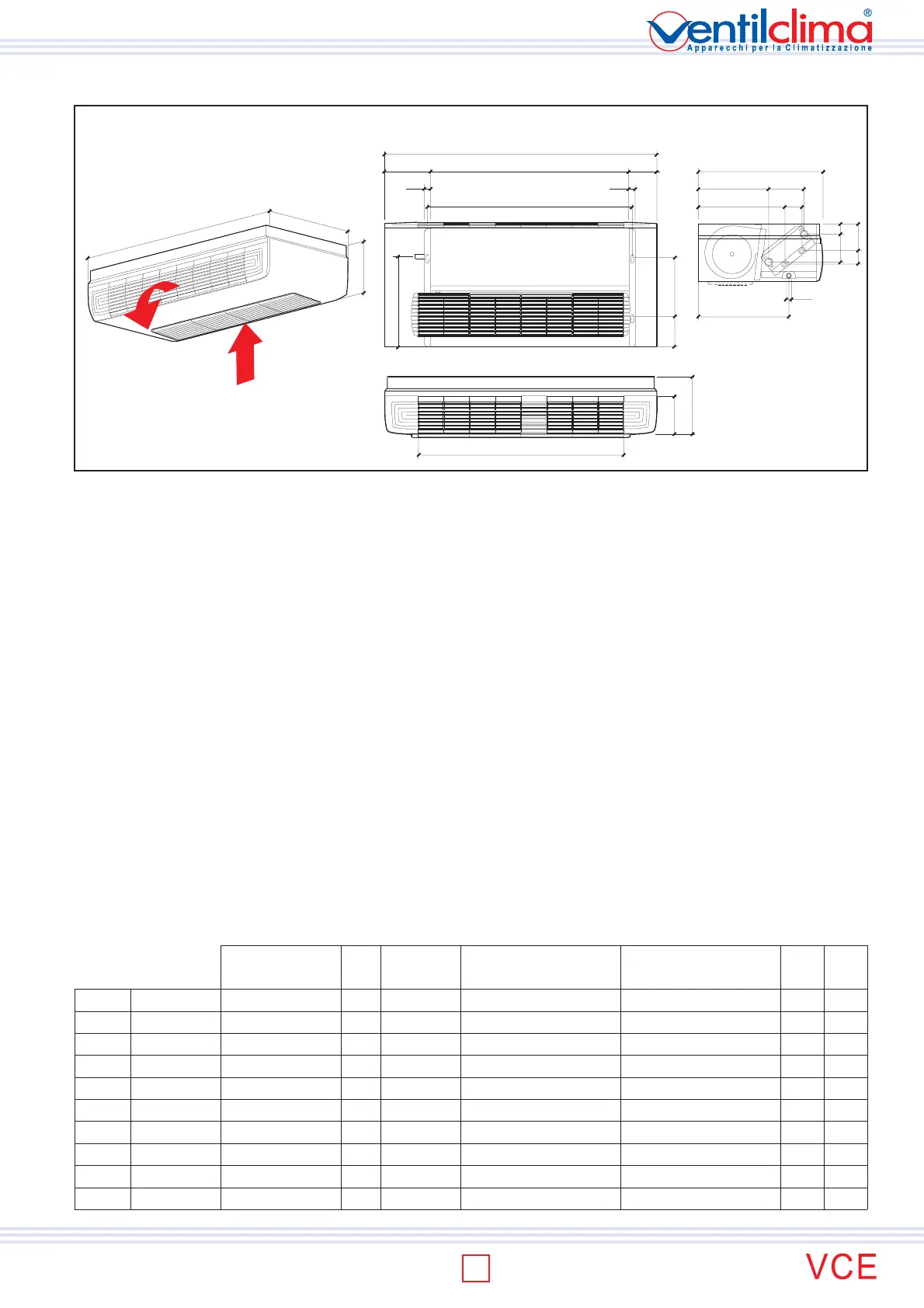

VERSIONE 4 - Horizontal ceiling models with cabinet (bottom air intake)
VCE 14-94
L
H
S
H
A
B
E
F
M
X
N
Y
Ø 20
O
O
C
D
L
179 108
25 25
122 G
I
S
148
Dimensions Standard coil Auxiliary coilDistance
between slots
N.o
grilles
MOD. CODE H L S C D G N Y A B M X E F I O
VCE14 A0015090014 480 660 225 370 395 233 39 109 274 137 103 53 337 67 4 352
VCE24 A0015090024 480 860 225 570 595 233 39 109 274 137 103 53 337 67 6 352
VCE34 A0015090034 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8 352
VCE44 A0015090044 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8 352
VCE54 A0015090054 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10 352
VCE64 A0015090064 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10 352
VCE74 A0015090074 585 1.260 225 970 995 253 41 107 268 253 101 52 374 124 10 402
VCE84 A0015090084 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12 402
VCE94 A0015090094 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12 402
Conden.
fitting
range
23
