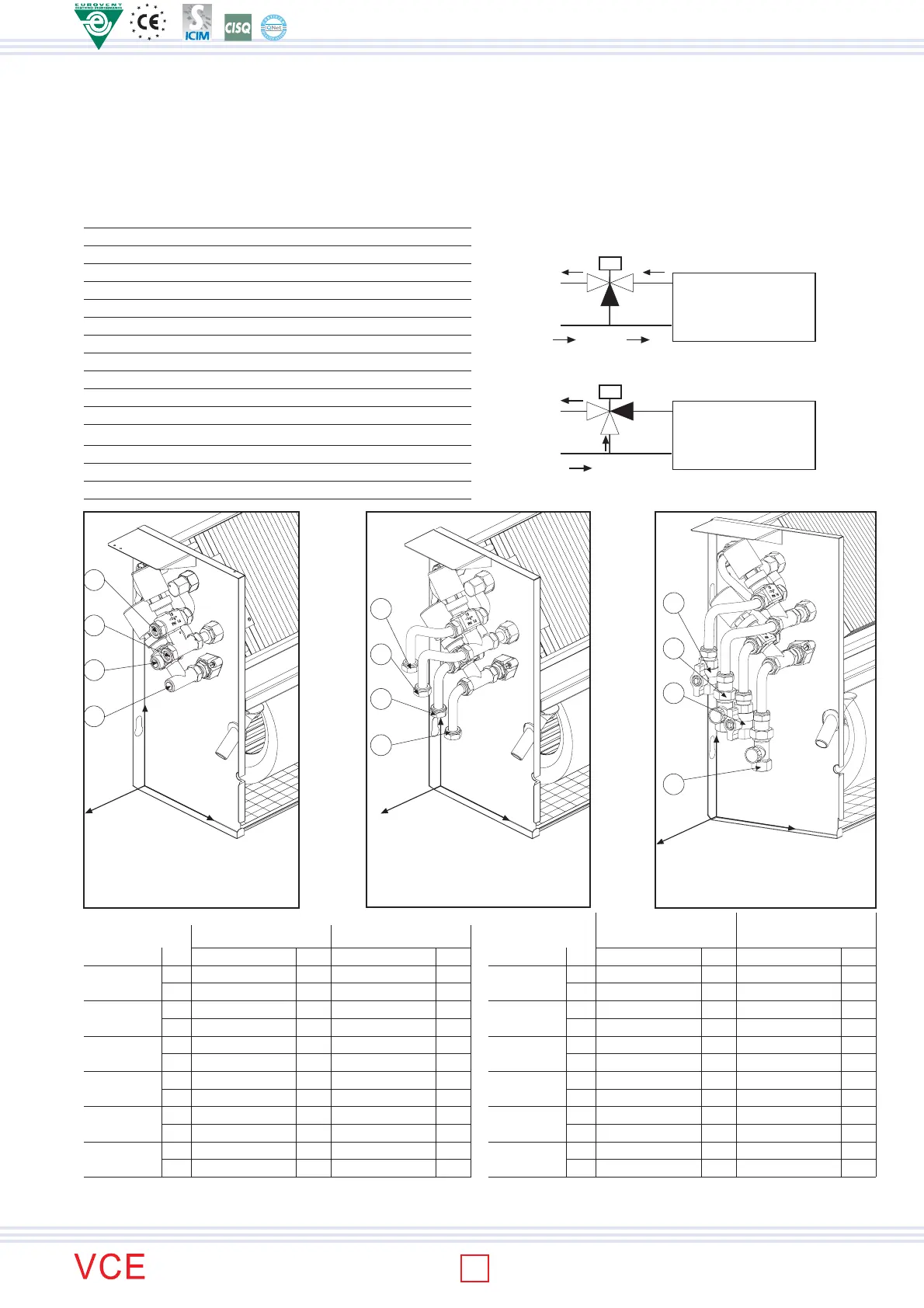

ON/OFF 3-WAY VALVE KIT
On/Off 3-way solenoid valves with bypass (4 fittings) are available.
The valve body is in brass; an on/off electrothermal actuator (power supply 230Vac) controls the membrane. When there is no power supply the
valve is closed.
The electrothermal actuator is silent during operation.
The kit comprises valve body, electrothermal actuator, flared copper pipes, ring nuts and gaskets for fixing to the fan coil.
The valve kit is already installed on the fan coil complete with the water and electrical connections necessary for operation.
The fan coil model and the coil (standard or auxiliary) to which the kit refers must be specified at the time of ordering.
Technical data:
11
12
9
10
X
Z
Y
7
8
5
6
X
Z
Y
3
4
1
2
X
Z
Y
Electrical power supply 230 V/50-60 Hz
Input 3 VA
Breakaway starting current 0,3 A (230 V)
Working current 0,013 A (230 V)
Max travel 4 mm
Pressure 90 N
Opening time 3 min
Max. differential pressure (with valve Ø 1/2) 1,5 bar
Max. differential pressure (with valve Ø 3/4) 0,5 bar
Working room temperature 50°C
Protection rating (vertical inst.) IP43
Protection rating (horizontal inst.) IP40
Insulation Double or reinforced
Connecting cable Two pin Ø 0.5 mm
2
Size 68,5x50x50
1 115 295 90 1/2" M 110 293 110 3/4" M
2 147 270 90 1/2" M 145 273 110 3/4" M
3 130 370 92 1/2" M 120 398 115 3/4" M
4 155 335 92 1/2" M 153 375 115 3/4" M
5 115 225 110 1/2" F 110 255 133 3/4" F
6 147 200 110 1/2" F 145 235 133 3/4" F
7 57 278 120 1/2" F 40 302 145 3/4" F
8 85 250 120 1/2" F 82 277 145 3/4" F
9 115 165 110 1/2" F 110 162 133 3/4" F
10 147 122 110 1/2" F 145 178 133 3/4" F
11 55 220 117 1/2" F 40 205 145 3/4" F
12 87 167 117 1/2" F 82 220 145 3/4" F
F= female gas fittings
M= male gas fittings
STANDARD
STANDARD
STANDARD
AUXILIARY
AUXILIARY
AUXILIARY
COIL Rif. X Y Z Ø X Y Z Ø
1 85 376 125 3/4"M 71 385 124 3/4"M
2 174 328 125 3/4"M 135 307 124 3/4"M
3 140 413 106 1/2"M 139 412 106 1/2"M
4 173 388 106 1/2"M 171 387 106 1/2"M
5 16 274 146 3/4"F 30 263 158 3/4"F
6 176 285 146 3/4"F 137 265 145 3/4"F
7 95 298 171 3/4"F 87 330 158 3/4"F
8 135 303 171 3/4"F 173 345 156 3/4"F
9 16 160 146 1"F 30 148 158 1"F
10 176 187 146 1"F 137 167 145 1"F
11 95 244 171 3/4"F 87 235 158 3/4"F
12 135 209 171 3/4"F 173 291 156 3/4"F
STANDARD
STANDARD
STANDARD
AUXILIARY
AUXILIARY
AUXILIARY
COIL Rif. X Y Z Ø X Y Z Ø
2 valves + copper pipes + ball valve
and holder for 4-pipe system
(standard coil 3 R + auxiliary 1 R)
2 valves + copper pipes
for 4-pipe system
(standard coil 3 R + auxiliary 1 R)
2 valves for 4-pipe system
(standard coil 3 R + auxiliary 1 R)
VCE 10-60 VCE 70-90
VCE 100-120
LEFT side
VCE 100-120
RIGHT side
COIL
ON
COIL
OFF
