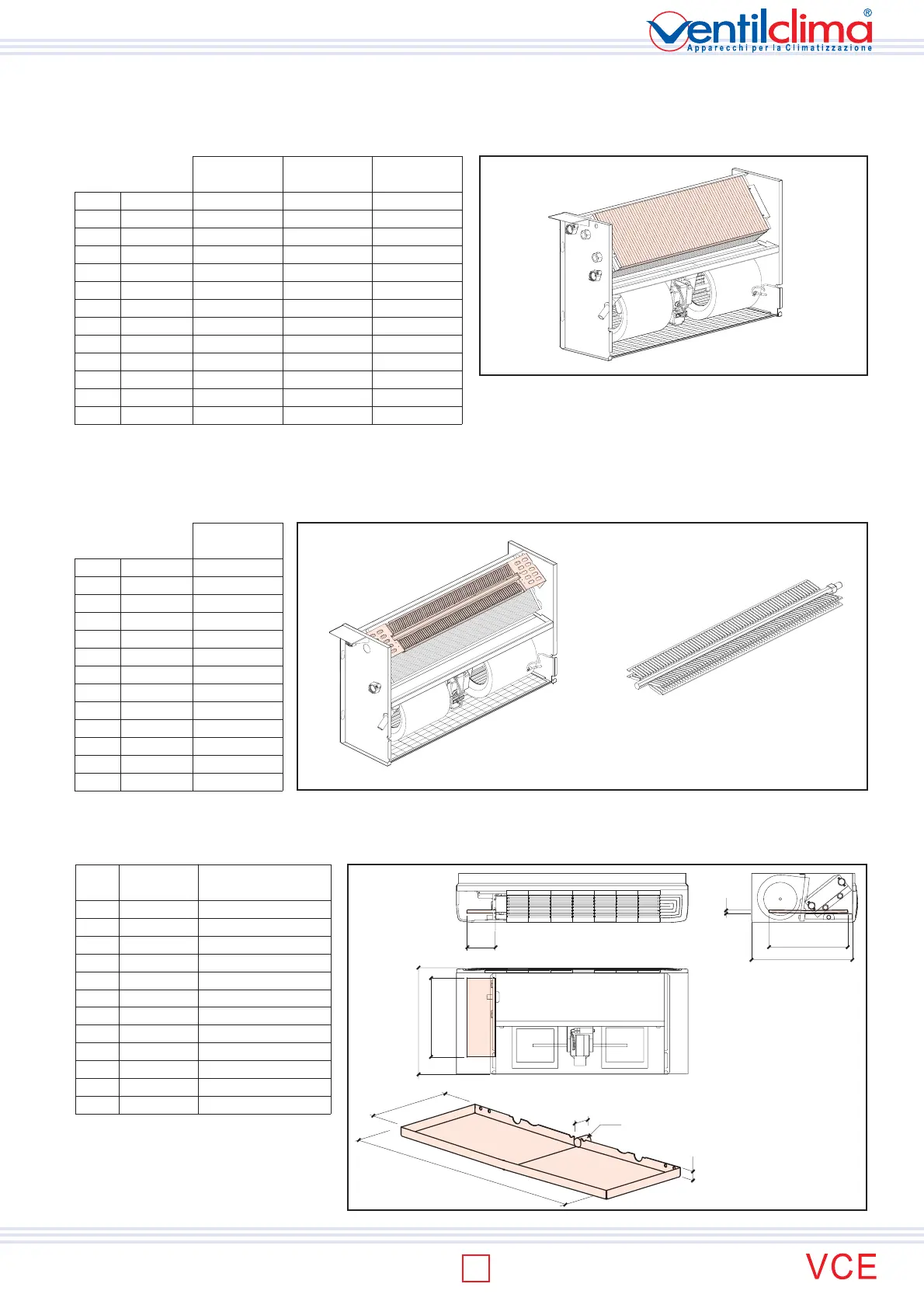

VentilClima VCE20 - Unit Accessories and Panels; Auxiliary Coils, Heaters, and Trays

TECHNICAL MANUAL
360
The technical data refer to the following conditions:
Mmaximum fan speed; indicated water flow rate; inflowing water temperature at
70°C; heat drop of 10°C; inflowing air temperature at 20°C.
ELECTRIC HEATER
The heating element kit is used during heating to integrate the heating power of the main coil or alternatively as the only heating element.
The power of the heating element depends on the size of the fan coil on which it is mounted; the larger the fan coil the greater the power of the
heating element. The kit comprises the heating element with aluminium heatsink, safety thermostat, control relay and relative wiring and is already
built into the fan coil complete with all electrical connections
ELECTRICAL SUPPLY:
230 Vac / 1 / 50 Hz
* On request!
MOD. CODE W kCal/h l/h l/s kPa m.C.A.
VCE10 A0055560001 1.261 1.087 109 0,030 0,3 0,03
VCE20 A0055560002 1.894 1.633 163 0,405 0,7 0,07
VCE30 A0055560003 2.726 2.350 235 0,065 1,7 0,17
VCE40 A0055560004 2.887 2.489 249 0,069 2,0 0,20
VCE50 A0055560005 3.489 3.008 301 0,084 3,4 0,34
VCE60 A0055560006 4.131 3.561 356 0,176 4,2 0,42
VCE70 A0055560007 5.044 4.348 435 0,121 7,5 0,75
VCE80 A0055560008 6.193 5.339 534 0,148 13,9 1,39
VCE90 A0055560009 7.665 6.608 661 0,184 21,7 2,17
VCE100 A0055560010 8.388 7.231 739 0,205 48,4 4,84
VCE110 A0055560011 10.111 8.716 981 0,273 27,0 2,70
VCE120 A0055560012 11.433 9.856 1.008 0,280 34,0 3,40
Heating
capacity
Water
flow
Water pressure
drops
SINGLE ROW AUXILIARY COIL
This is used in 4-pipe systems, which comprise 2 independent water circuits: one for cooling and the other for heating. In this case the auxiliary
coil is used for heating. The constructional characteristics are similar to those of the main coil with brass inlet/outlet headers and air valves. The
fittings have a diameter of 1/2 with internal GAS thread.
The fan coil model in which the auxiliary coil is to be installed must be specified at the time of ordering.
MOD. CODICE W A
VCE10 - --
VCE20 A0055550002 1.000 4,35
VCE30 A0055550003 1.000 4,35
VCE40 A0055550003 1.000 4,35
VCE50 A0055550004 2.000 8,70
VCE60 A0055550004 2.000 8,70
VCE70 A0055550004 2.000 8,70
VCE80 A0055550005 3.000 13,04
VCE90 A0055550005 3.000 13,04
VCE100 * **
VCE110 * **
VCE120 * **
Heating
capacity
360
M1
12
A
M
360
12
A
VCE10 A0055640051 130 480 460
VCE20 A0055640051 130 480 460
VCE30 A0055640051 130 480 460
VCE40 A0055640051 130 480 460
VCE50 A0055640051 130 480 460
VCE60 A0055640051 130 480 460
VCE70 A0055640063 160 585 565
VCE80 A0055640063 160 585 565
VCE90 A0055640063 160 585 565
VCE100 A0055640063 160 605 585
VCE110 A0055640063 160 605 585
VCE120 A0055640063 160 605 585
MOD. CODE A M M1
mm mm mm
25
AUXILIARY CONDENSATE COLLECTING TRAY  horizontal version (INSULATED)
The painted, galvanised sheet metal auxiliary tray is used to collect condensate from the valves and the pipes connecting to the unit. It is suitable
for horizontally mounted fan coils.
Ø 12
range
