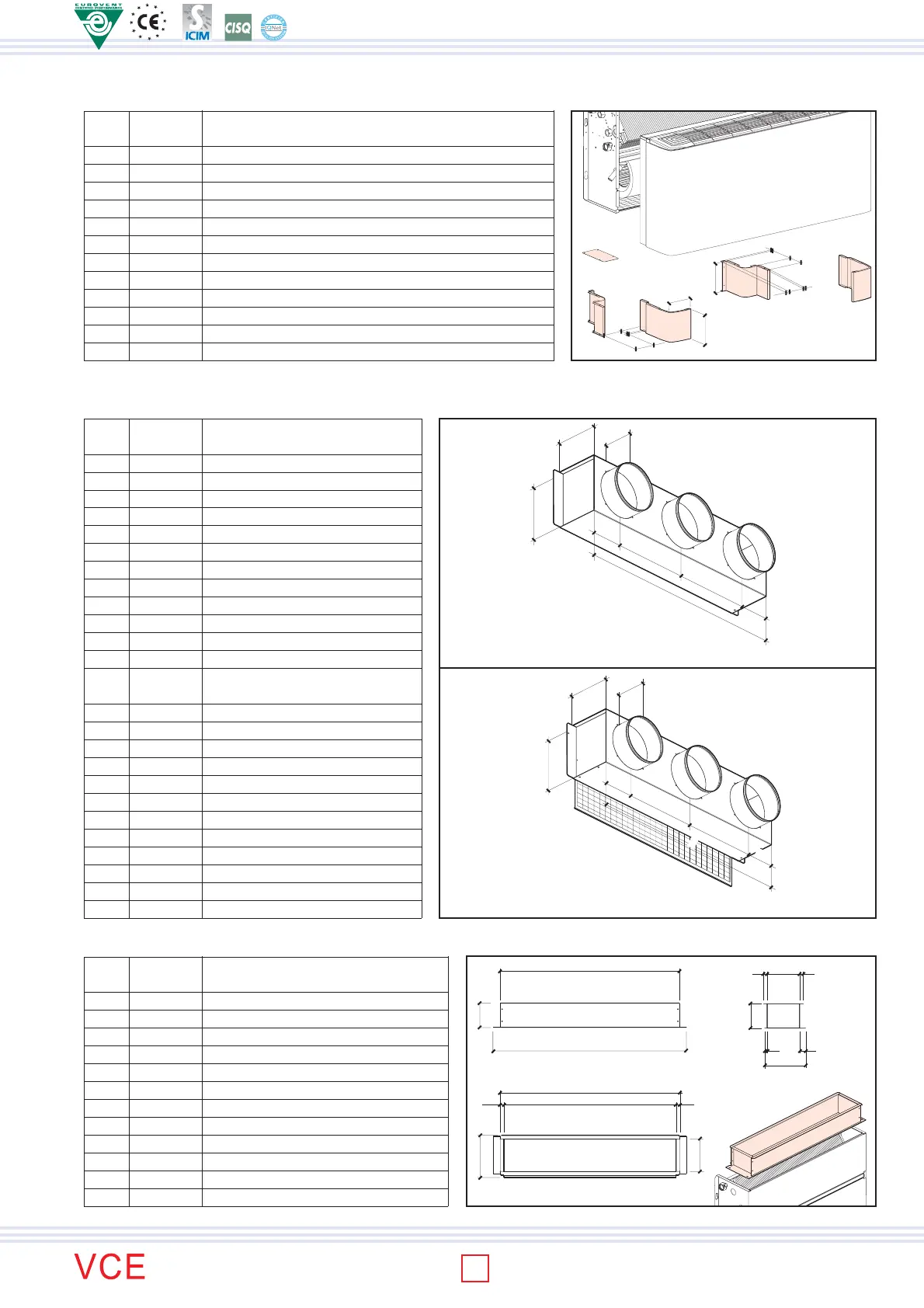

PAIR OF ENAMELLED FEET
Pair of feet in pre-enamelled sheet metal designed to support the fan coil for floor-standing installation.
MOD. CODE A B C D E F G H
mm mm mm mm mm mm mm mm
VCE10 A0055490004 68 10 75 125 225 45 170 110
VCE20 A0055490004 68 10 75 125 225 45 170 110
VCE30 A0055490004 68 10 75 125 225 45 170 110
VCE40 A0055490004 68 10 75 125 225 45 170 110
VCE50 A0055490004 68 10 75 125 225 45 170 110
VCE60 A0055490004 68 10 75 125 225 45 170 110
VCE70 A0055490004 68 10 75 125 225 45 170 110
VCE80 A0055490004 68 10 75 125 225 45 170 110
VCE90 A0055490004 68 10 75 125 225 45 170 110
VCE100 A0055490005 105 14 100 129 256 - - 112
VCE110 A0055490005 105 14 100 129 256 - - 112
VCE120 A0055490005 105 14 100 129 256 - - 112
70
B
C
A
A
B
L
150
OUTLET UNIONS AND INLET UNIONS (WITH AIR FILTER) WITH CIRCULAR FITTINGS
The painted, galvanised sheet metal plenum with circular fittings is used to convey the air with vertical or horizontal built-in fan coil installation.
The air filter may be easily drawn out for inspection or cleaning.
VCE10 A0055500024 - 171,5 195 343 1x160
VCE20 A0055500025 327 108 195 543 2x160
VCE30 A0055500026 263,5 108 195 743 3x160
VCE40 A0055500026 263,5 108 195 743 3x160
VCE50 A0055500027 242,5 108 195 943 4x160
VCE60 A0055500027 242,5 108 195 943 4x160
VCE70 A0055500027 242,5 108 195 943 4x160
VCE80 A0055500028 309 108 195 1.143 4x160
VCE90 A0055500028 309 108 195 1.143 4x160
VCE100 A0055500029 350 157,5 240 1.365 4x200
VCE110 A0055500030 324,3 164 240 1.665 5x200
VCE120 A0055500030 324,3 164 240 1.665 5x200
MOD. CODE A B C L N.xØ
mm mm mm mm n
VCE10 A0055500045 - 171,5 195 343 1x160
VCE20 A0055500046 327 108 195 543 2x160
VCE30 A0055500047 263,5 108 195 743 3x160
VCE40 A0055500047 263,5 108 195 743 3x160
VCE50 A0055500048 242,5 108 195 943 4x160
VCE60 A0055500048 242,5 108 195 943 4x160
VCE70 A0055500048 242,5 108 195 943 4x160
VCE80 A0055500049 309 108 195 1.143 4x160
VCE90 A0055500049 309 108 195 1.143 4x160
VCE100 A0055500050 350 157,5 240 1.365 4x200
VCE110 A0055500051 324,3 164 240 1.665 5x200
VCE120 A0055500051 324,3 164 240 1.665 5x200
B
C
A
A
B
L
150
70
OUTLET
INLET
with AIR FILTER
MOD. CODE A B C L N.xØ
mm mm mm mm n
STRAIGHT OUTLET FITTING
In galvanised sheet metal, it is used to convey air with vertical or horizontal built-in fan coil installation.
Pi
T
P
100
100
15
15
Pi
C
B
P
L
Li
L
13 13
MOD. CODE L Li T P Pi A B C
mm mm mm mm mm mm mm mm
VCE10 A0055500010 343 317 397 170 135 13 25 10
VCE20 A0055490011 543 517 597 170 135 13 25 10
VCE30 A0055490012 743 717 797 170 135 13 25 10
VCE40 A0055490012 743 717 797 170 135 13 25 10
VCE50 A0055490013 943 917 997 170 135 13 25 10
VCE60 A0055490013 943 917 997 170 135 13 25 10
VCE70 A0055490013 943 917 997 170 135 13 25 10
VCE80 A0055490014 1.143 1.117 1.197 170 135 13 25 10
VCE90 A0055490014 1.143 1.117 1.197 170 135 13 25 10
VCE100 A0055490015 1.365 1.335 * 160 149 15 10 *
VCE110 A0055490016 1.665 1.635 * 160 149 15 10 *
VCE120 A0055490016 1.665 1.635 * 160 149 15 10 *
130
130
D
11
C
B
19
E
G
F
H
