VentilClima VCE20 - Page 40

TECHNICAL MANUAL
range

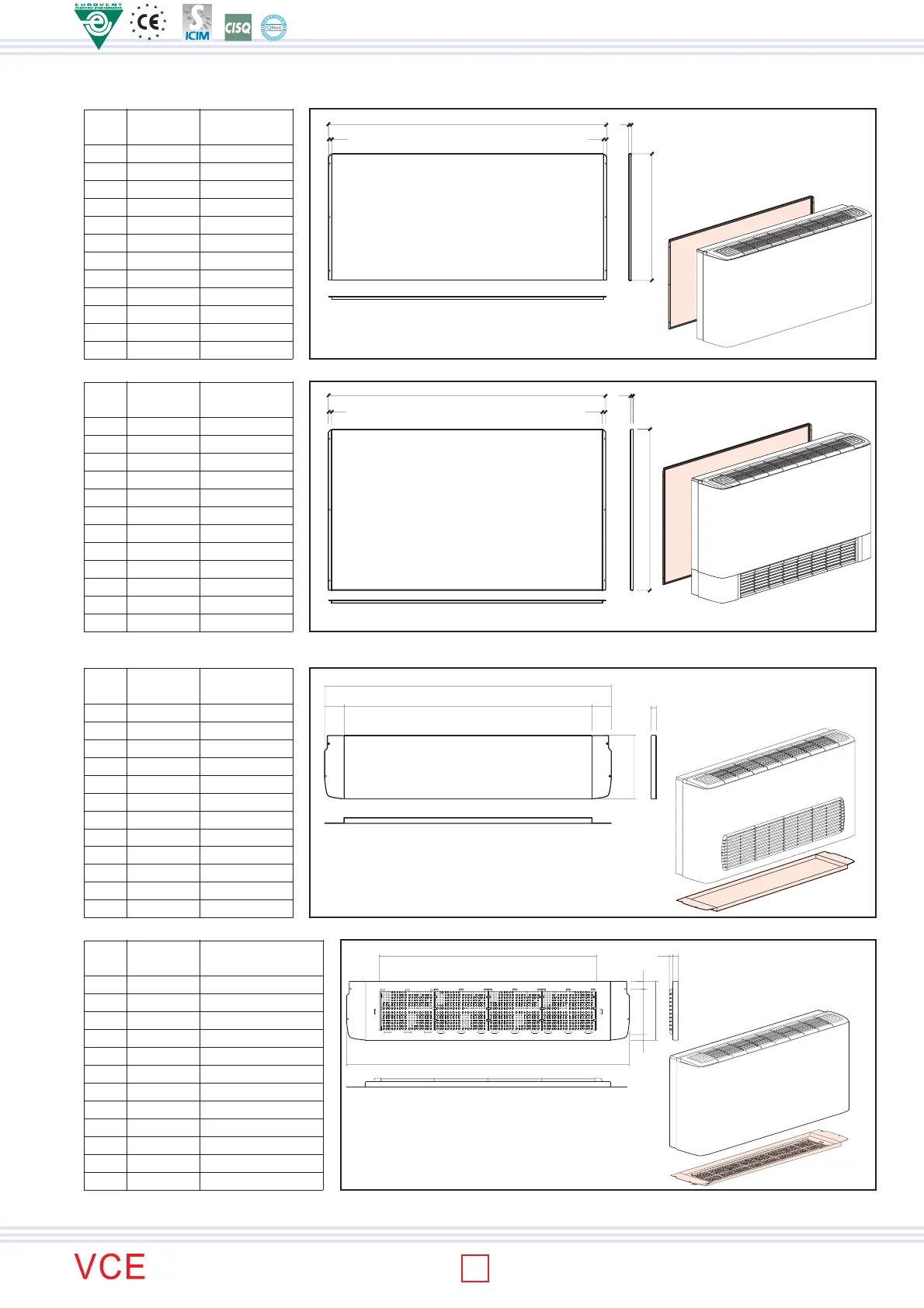

ENAMELLED REAR PANEL (FOR STANDARD CABINET)
Painted sheet metal panel for closing the rear part of the fan coil when exposed (for standard housing).
ENAMELLED REAR PANEL (FOR VERSION x1 or x8)
L
12
12
S
H
L
12
12
S
H
BOTTOM PANEL WITHOUT GRILL
Painted sheet metal panel for closing the bottom part of the fan coil when exposed (for versions with front intake).
BOTTOM PANEL WITH GRILLE AND FILTER
VCE10 A0055510000 637 465 10
VCE20 A0055510001 837 465 10
VCE30 A0055510002 1.037 465 10
VCE40 A0055510002 1.037 465 10
VCE50 A0055510003 1.237 465 10
VCE60 A0055510003 1.237 465 10
VCE70 A0055510004 1.237 570 10
VCE80 A0055510005 1.437 570 10
VCE90 A0055510005 1.437 570 10
VCE100 A0055510006 1.657 600 12
VCE110 A0055510007 1.957 600 12
VCE120 A0055510007 1.957 600 12
MOD. CODE L H S
mm mm mm
VCE10 A0055510064 637 595 10
VCE20 A0055510065 837 595 10
VCE30 A0055510066 1.037 595 10
VCE40 A0055510066 1.037 595 10
VCE50 A0055510067 1.237 595 10
VCE60 A0055510067 1.237 595 10
VCE70 A0055510068 1.237 700 10
VCE80 A0055510069 1.437 700 10
VCE90 A0055510069 1.437 700 10
VCE100 A0055510070 1.657 730 12
VCE110 A0055510071 1.957 730 12
VCE120 A0055510071 1.957 730 12
VCE10 A0055510010 655 511 220
VCE20 A0055510011 855 711 220
VCE30 A0055510012 1.055 911 220
VCE40 A0055510012 1.055 911 220
VCE50 A0055510013 1.255 1.111 220
VCE60 A0055510013 1.255 1.111 220
VCE70 A0055510013 1.255 1.111 220
VCE80 A0055510014 1.455 1.311 220
VCE90 A0055510014 1.455 1.311 220
VCE100 A0055510015 1.665 1.521 240
VCE110 A0055510016 1.965 1.821 240
VCE120 A0055510016 1.965 1.821 240
MOD. CODE L Li P
mm mm mm
L
72
72
20
Li
P
L
20
P
Li
14
P1
30
20
VCE10 A0055510017 655 412 220 170
VCE20 A0055510018 855 612 220 170
VCE30 A0055510019 1.055 812 220 170
VCE40 A0055510019 1.055 812 220 170
VCE50 A0055510020 1.255 1.012 220 170
VCE60 A0055510020 1.255 1.012 220 170
VCE70 A0055510020 1.255 1.012 220 170
VCE80 A0055510021 1.455 1.212 220 170
VCE90 A0055510021 1.455 1.212 220 170
VCE100 A0055510022 1.665 1.412 240 190
VCE110 A0055510023 1.965 1.612 240 190
VCE120 A0055510023 1.965 1.612 240 190
MOD. CODE L Li P Pi
mm mm mm mm
MOD. CODE L H S
mm mm mm
ISO 9001:2000 - Cert. n. 1368/1
40
