TECHNICAL MANUAL
WHITE LACQUERED WOOD PANEL
An elegant white lacquered wood panel for installation in environments where the design is particularly important. The wood panel allows the fan
coil to be fully concealed by closing off the recess in which it is installed.
It is fixed directly onto the fan coil by hidden self-tapping screws. The air intake grille (with filter) and outlet louvres are inserted in the panel. By
turning the outlet louvres the airflow may be directed upwards or downwards.
The panels are only available for version 7 (fan coil with front outlet).

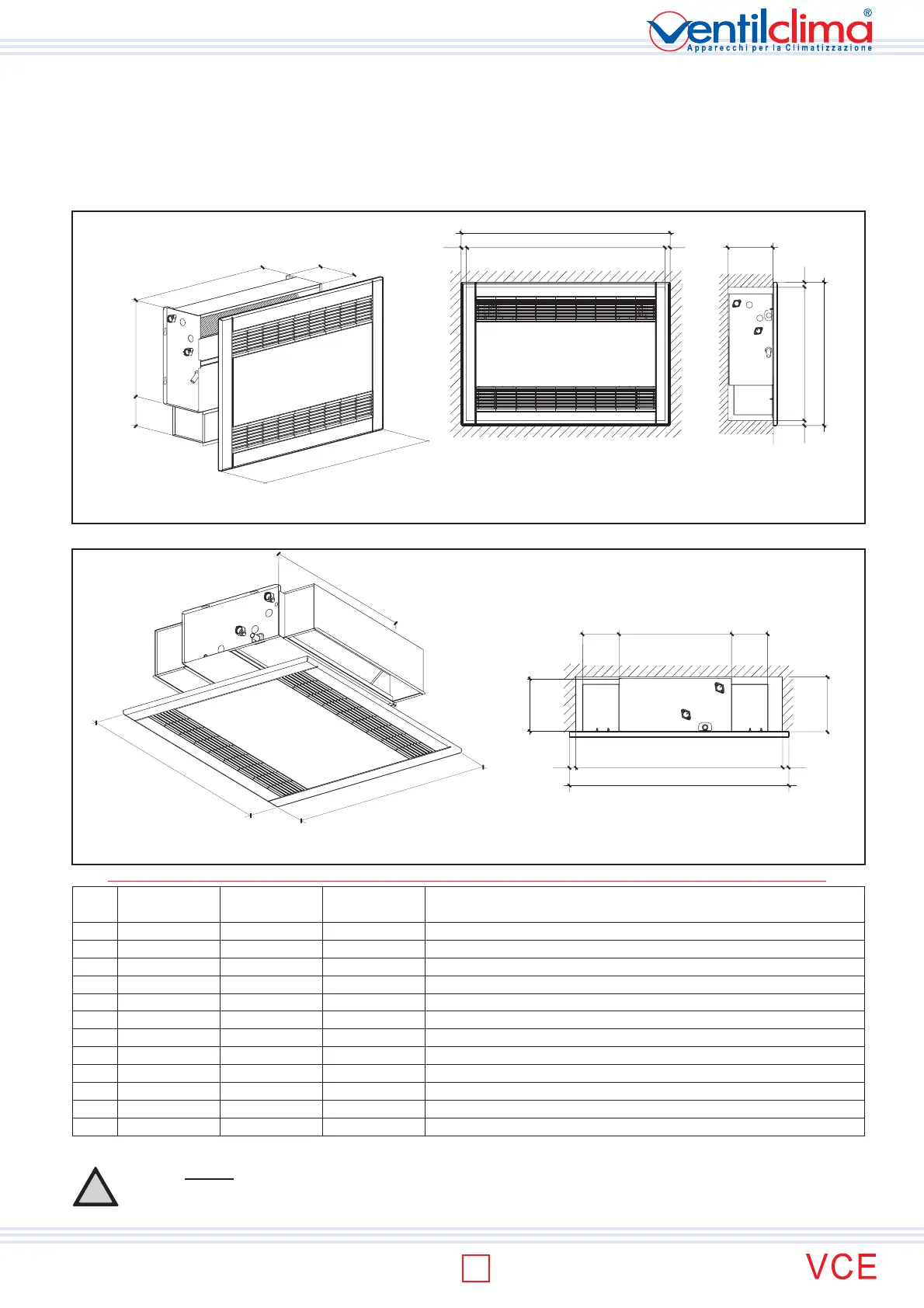

Panel for version 7
N, ..., N3 = MINIMUM recess size
P, ..., P1= Panel length
M, ..., M2 = Fan coil size
!
Panel for version 2 or 3
Notes: for the version x2, the panel is available until the size 90. For the version x3, the panel is available until the size 60!
M2
P1
N
25
25
P
N2
N1
25
25
M
P
M1
M2
P2
N3
25
25
N1
M1
* Not available
MOD. CODE (version 7) CODE (version 2) CODE (version 3) N N1 N2 N3 P P1 P2 M M1 M2
mm mm mm mm mm mm mm mm mm mm
VCE10 A0055510024 A0055510038 A0055510038 600 670 227 830 650 720 880 420 220 460
VCE20 A0055510025 A0055510039 A0055510039 800 670 227 830 850 720 880 620 220 460
VCE30 A0055510026 A0055510040 A0055510040 1.000 670 227 830 1.050 720 880 820 220 460
VCE40 A0055510026 A0055510040 A0055510040 1.000 670 227 830 1.050 720 880 820 220 460
VCE50 A0055510027 A0055510041 A0055510041 1.200 670 227 830 1.250 720 880 1.020 220 460
VCE60 A0055510027 A0055510041 A0055510041 1.200 670 227 830 1.250 720 880 1.020 220 460
VCE70 A0055510052 A0055510053 * 1.200 775 227 935 1.250 825 985 1.020 220 565
VCE80 A0055510028 A0055510042 * 1.400 775 227 935 1.450 825 985 1.220 220 565
VCE90 A0055510028 A0055510042 * 1.400 775 227 935 1.450 825 985 1.220 220 565
VCE100 * * * * * * * * * * 1.380 256 585
VCE110 * * * * * * * * * * 1.680 256 585
VCE120 * * * * * * * * * * 1.680 256 585
