TECHNICAL MANUAL
range
PRE-ENAMELLED WHITE SHEET METAL PANEL
Built-in fan coils (wall or ceiling mounted) should be concealed for aesthetic and safety purposes. The sheet metal panel does this by fully closing
off the recess housing the appliance. The panel is made in pre-enamelled white sheet metal. It is fixed directly onto the fan coil with hidden self-
tapping screws. The air intake grille (with filter) and outlet louvres are inserted in the panel. By turning the outlet louvres the air flow may be directed
upwards or downwards. There are two types of panels for each size of fan coil: version 7 (fan coil with front outlet) and version 2 and 3 (fan coil
with vertical or horizontal outlet complete with 90° elbow).

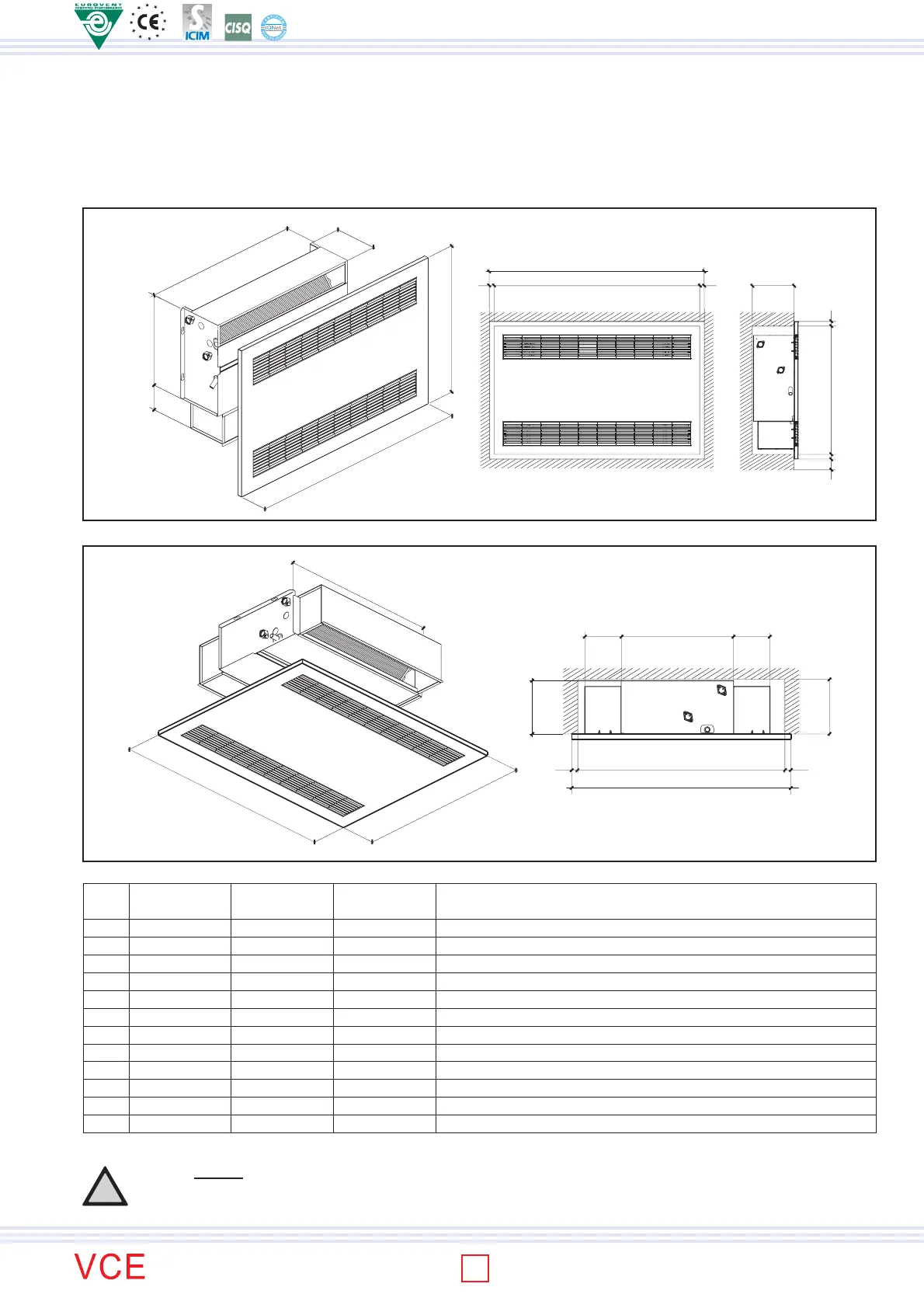

Panel for version 7
M2
165
M
M1
P1
P
N
25
25
P
N2
N1
25
25
100
Panel for version 2 or 3
165
165
M2
P2
N3
25
25
N2
M1
P2
P
M
* Not available
MOD. CODE (version 7) CODE (version 2) CODE (version 3) N N1 N2 N3 P P1 P2 M M1 M2
mm mm mm mm mm mm mm mm mm mm
VCE10 A0055510024 A0055510038 A0055510038 700 685 225 845 750 735 895 420 220 460
VCE20 A0055510025 A0055510039 A0055510039 900 685 225 845 950 735 895 620 220 460
VCE30 A0055510026 A0055510040 A0055510040 1.100 685 225 845 1.150 735 895 820 220 460
VCE40 A0055510026 A0055510040 A0055510040 1.100 685 225 845 1.150 735 895 820 220 460
VCE50 A0055510027 A0055510041 A0055510041 1.300 685 225 845 1.350 735 895 1.020 220 460
VCE60 A0055510027 A0055510041 A0055510041 1.300 685 225 845 1.350 735 895 1.020 220 460
VCE70 A0055510052 A0055510053 A0055510053 1.300 790 225 950 1.350 840 1.000 1.020 220 565
VCE80 A0055510028 A0055510042 A0055510042 1.500 790 225 950 1.550 840 1.000 1.220 220 565
VCE90 A0055510028 A0055510042 A0055510042 1.500 790 225 950 1.550 840 1.000 1.220 220 565
VCE100 * * * * * * * * * * 1.380 256 585
VCE110 * * * * * * * * * * 1.680 256 585
VCE120 * * * * * * * * * * 1.680 256 585
!
N, ..., N3 = MINIMUM recess size
P, ..., P1= Panel length
M, ..., M2 = Fan coil size
ISO 9001:2000 - Cert. n. 1368/1
