TECHNICAL MANUAL

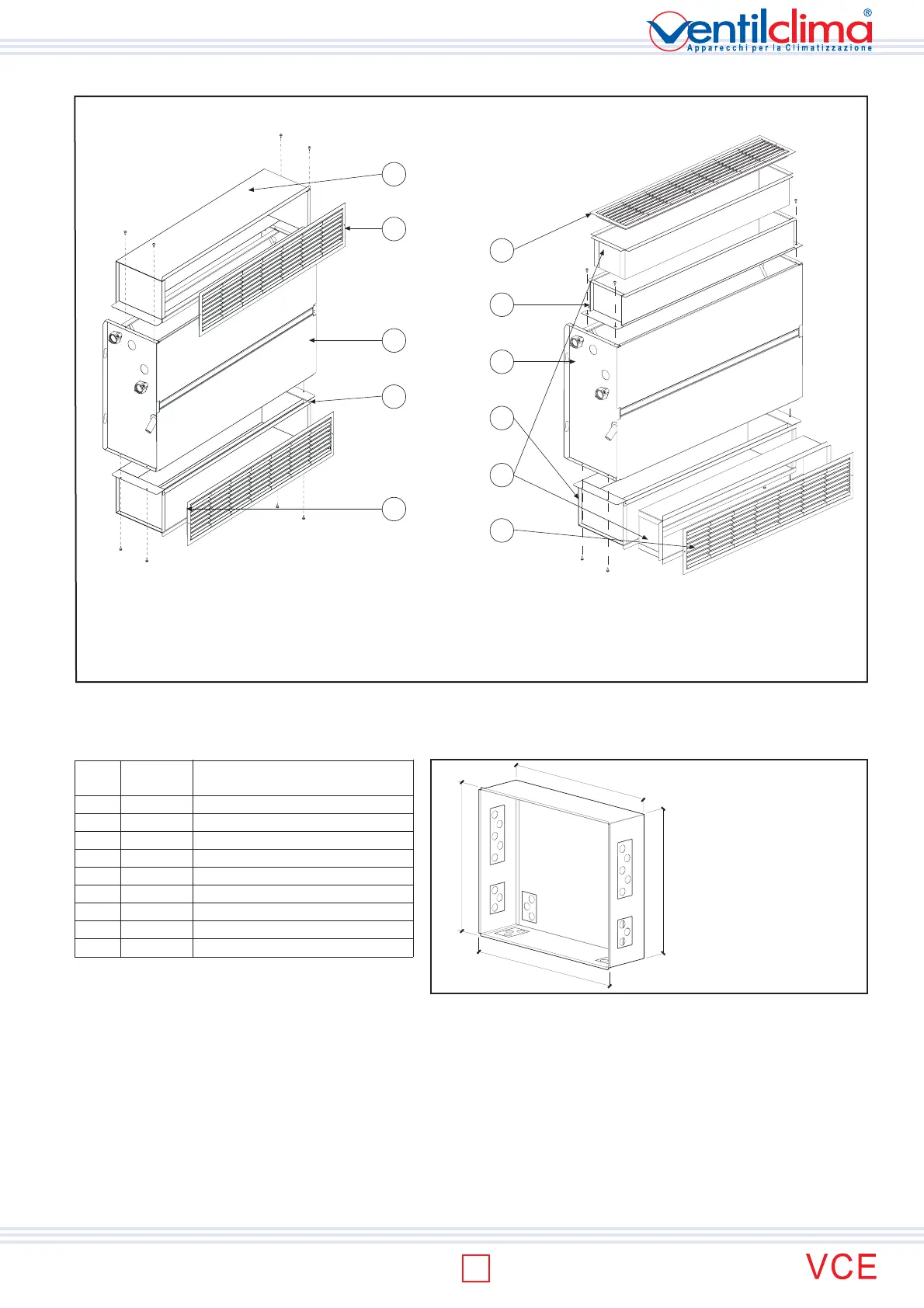

EXAMPLE OF USE OF FITTINGS AND GRILLES/LOUVRES
A Elbow on outlet E Outlet louvres (without air filter)
B Elbow on intake F Intake grille (with air filter)
C Straight fitting on outlet G Fan coil
D Telescopic extension for straight fittings and elbows
A
E
G
B
F
E
C
G
B
D
F
SPECIAL STEEL BOX FOR VCEx7
The galvanized sheet metal box is used to ease the installation of the recessed fan coil version X7 (frontal air supply) inside the niche.
MOD. CODE L H P M N
mm mm mm mm mm
VCE17 A0055430001 610 675 225 630 690
VCE27 A0055430002 810 675 225 830 690
VCE37 A0055430003 1.010 675 225 1.030 690
VCE47 A0055430003 1.010 675 225 1.030 690
VCE57 A0055430004 1.210 675 225 1.230 690
VCE67 A0055430004 1.210 675 225 1.230 690
VCE77 A0055430005 1.210 780 225 1.230 795
VCE87 A0055430006 1.410 780 225 1.430 795
VCE97 A0055430006 1.410 780 225 1.430 795
L
M
H
N
* NOT available for models
VCE100-120 and for version 2
and 3 .
range
37
