TECHNICAL MANUAL
REMOTE CONTROL CD1
DESCRIPTION
The remote control, by means of 2 switches, allows the remote control
of a 3 speeds fancoil. A switch selects the function OFF/Summer/Winter,
while the other selects one of the three speeds.
LEGENDA:
PE PROTECTIVE CONDUCTOR
(yellow/green)
N NEUTRAL
L PHASE
M FAN MOTOR
Com COMMON (white)
I MINIMUM SPEED
II MEDIUM SPEED
III MAXIMUM SPEED
T1 AUTOTRANSFORMER
(not installed in all models)
ST1 WATER LOW TEMPERATURE
THERMOSTAT
TECHNICAL DATA
Electrical supply: 230 ±10%V/1/50-60Hz
Max power dissipation: 1VA
Outlet: Relay 5 A, 250 V
Settings: OFF-Summer-Winter
Temperature limits: 0-50°C
Humidity limits: 10-90%U.R.
Container: ABS IP30
Dimensions: 90 x 65 x 30 mm
Weight: 130 g

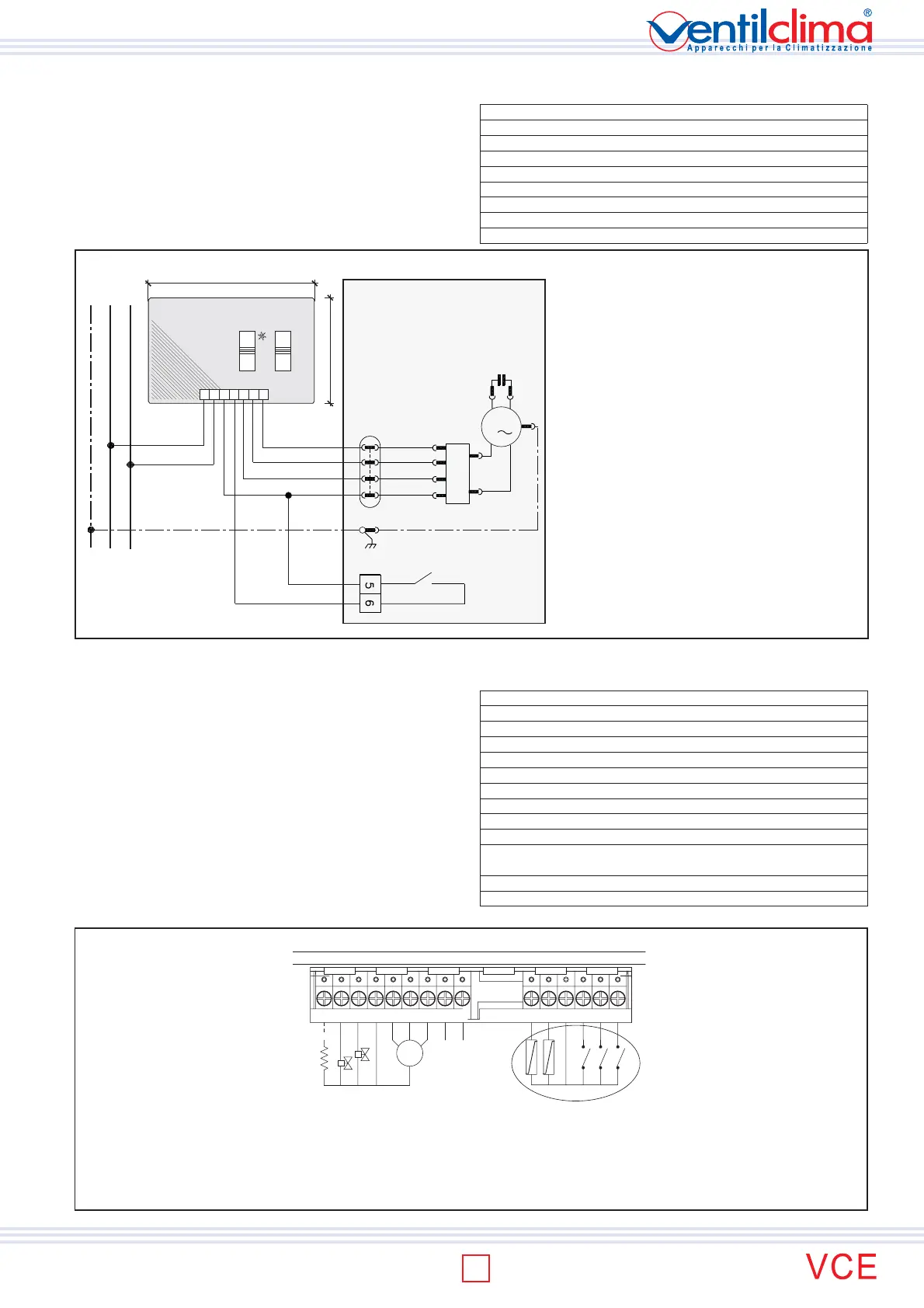

Connecting example:
CD8
REMOTE CONTROL CD8
DESCRIPTION
The remote control, by means of 3 switches and a knob, allows the
remote control of a 3 speeds fancoil:
1° switch: ON/OFF/ECONOMY function
2° switch: change speeds (automatic/minimum/medium/maximum)
3° switch: SUMMER/WINTER/ELECTRICAL HEATER function
Knob: can be regulate the temperature between 15°C÷30°C when
heating and between 20°C÷30°C when cooling.
Control board - on board installation possibility.
Therminal block with all connections:
TECHNICAL DATA
Electrical supply: 230Vac +/-10%, 50 60Hz
Absorption: 0.8 VA +/- 15%
Fan output: TRIAC 250Vac, 3(2.5)A max
Valves output: TRIAC 0,6A
Auxiliary output: TRIAC 0,6A max
Temperature adjustment range: +15...+30°C
Antifreeze temperature: 4°C
Temperature limits: +0 . +50°C
Humidity limits: 0 . 95 % U.R.
Container: IP30
Connections: Screw terminals for wires
with section of 1,5 mmq
Dimensions: 122 x 68 x 29 mm ( LxHxP)
Weight: 120 gr
ST1
OFF
I
III
II
L
N
90 mm
65 mm
CD1
123456 7
230 Vac/50Hz
PE
I
II
III
Com
Q
FANCOIL
T1
123456L
MM
M
1
C
4
1
2
3
LN
I
II
III
M
Shielded cable
Auxiliary heating element
Cooling valve
Heating valve
Power supply 230Vac
±10% - 50-60 Hz
Motor
Remote air sensor
Water sensor
Common in
Summer/winter SW
Economy
Window or
remote on/off
123456789 131415161718
Common out
range
45
