Air Conditioner Service Manual
21

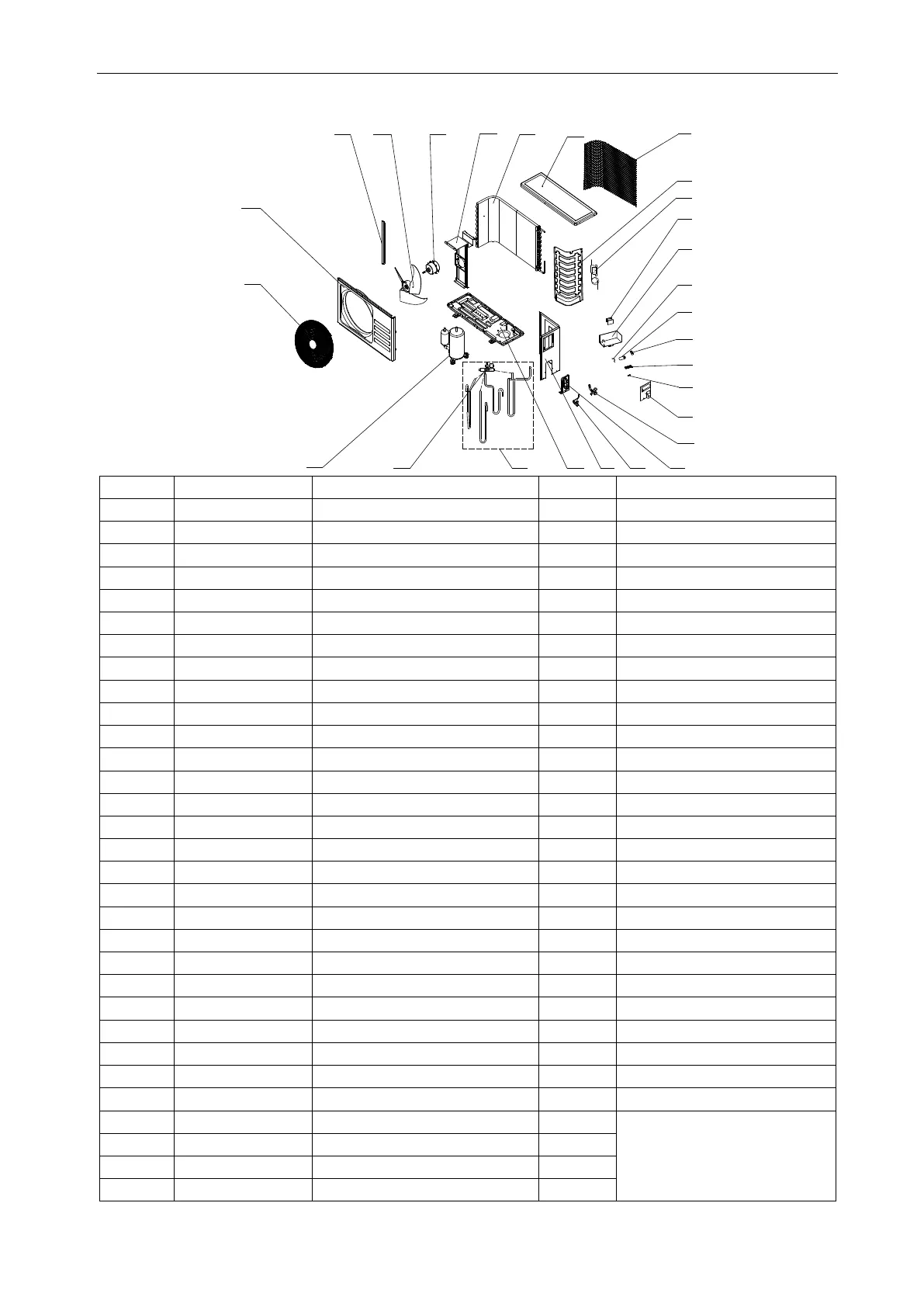

Outdoor Unit- VAC-24CHSA/XA21 PLUS
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
24
4
3
2
25
26
1
27
No.
Part No.
Part Name Q’ty Remark
1 42011-000111 Grille 1 Optional
2 41207-000018 Top Cover 1
3 92011-000371 Condenser 1
4 41203-000039 Outdoor Motor Supporter 1
5 22001-000018 Outdoor Motor 1
6 42004-000085 Propeller Fan 1
7 41205-000127 Left Grille Supporter 1
8 41206-000039 Front Plate 1
9 42011-000067 Fan Guard 1
10 92014-000017 Compressor 1
11 92008-000180 4-way Valve 1
12 92007-000796 4-way Valve Assembly 1
13 41202-000019 Base 1
14 41205-000057 Right Plate 1
15 92008-000018 Two-way Valve 1
16 41204-000013 Valve Supporter 1
17 92008-000116 Three-way Valve 1
18 41201-000005 Electrical Box Cover 1
19 42001-000106 Cable Clamp 1
20 11304-100010 Terminal 1
21 10303-100017 Fan Motor Capacitor 1
22 22003-000006 Compressor Capacitor 1
23 42001-000030 Capacitor Strip 1
24 41211-000084 Electrical Parts Box 1
25 22008-000003 AC Contactor 1
26 92007-001879 Capillary Assembly 1
27 41208-000119 Partition plate 1
28 A1201-008097 Cabinet Carton 1
Not show in explosion View
29 41213-000005 Upper Cover 1
30 A1202-000011 Lower Foaming 1
31 A2005-000487 Base Carton 1
