Venting VAC-12CHSA/XA21 PLUS - Product Dimensions

Air Conditioner Service Manual
7

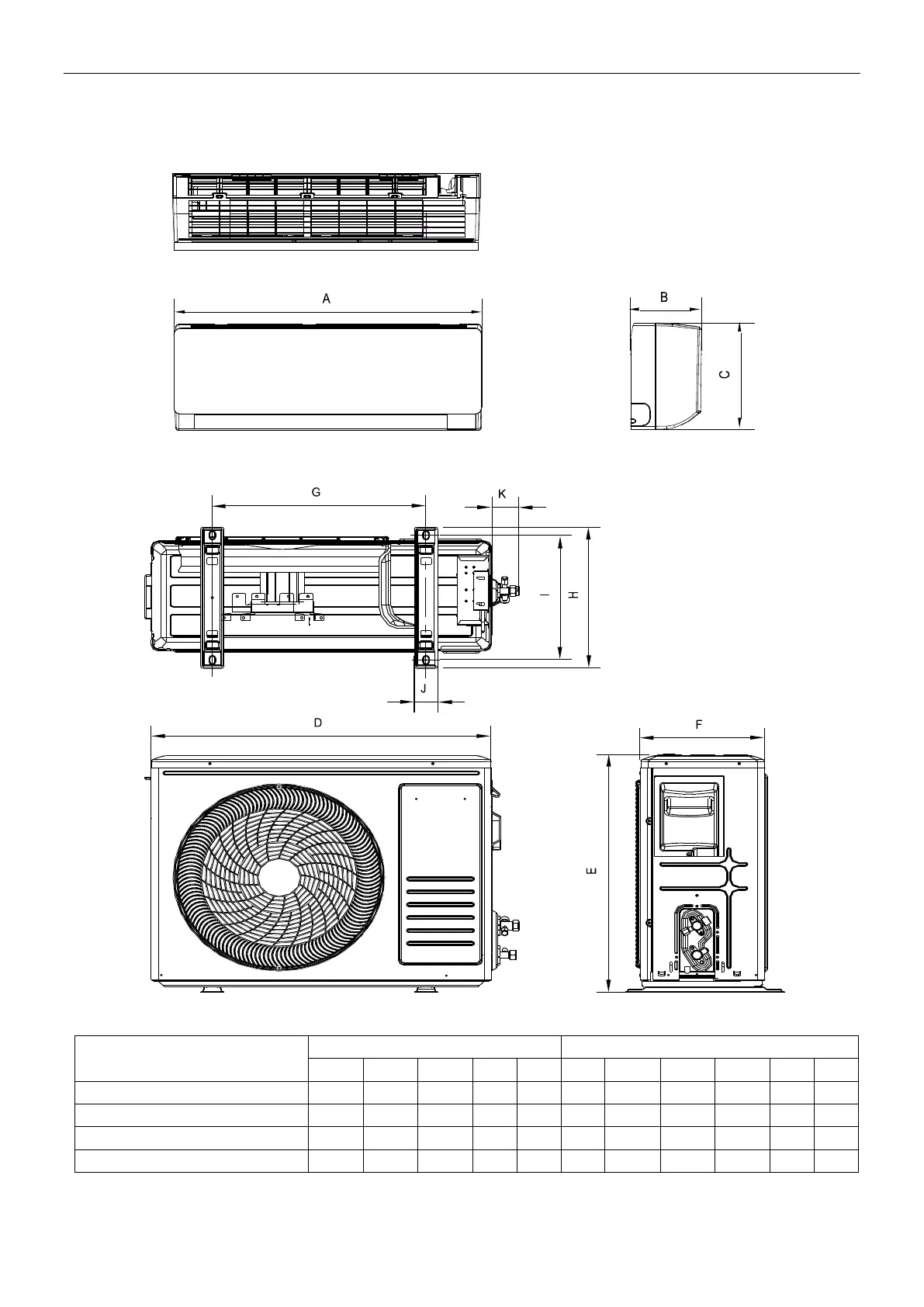

2. Product Dimensions
Indoor Unit:
Outdoor Unit:
Model
Indoor unit
Outdoor unit
A
B
C
D
E
F
G
H
I
J
K
VAC-09CHSA/XA21 PLUS
698
255
190
600
500
230
375
276
256
52
55
VAC-12CHSA/XA21 PLUS
777
250
205
700
550
256
439.2
302
277.8
48
55
VAC-18CHSA/XA21 PLUS
910
292
205
760
550
256
508
302
277.8
48
55
VAC-24CHSA/XA21 PLUS
1010
315
220
900
650
315
623
399
349
65
63
