6).The plug must be accessible also after the
appliance has been installed so that it can be
pulled out if necessary.
7).An efficient earth connection must be
ensured.
8).If the power cable is damaged, it must be
replaced by an authorized Service Centre.
9.2.4 Refrigerant piping connection

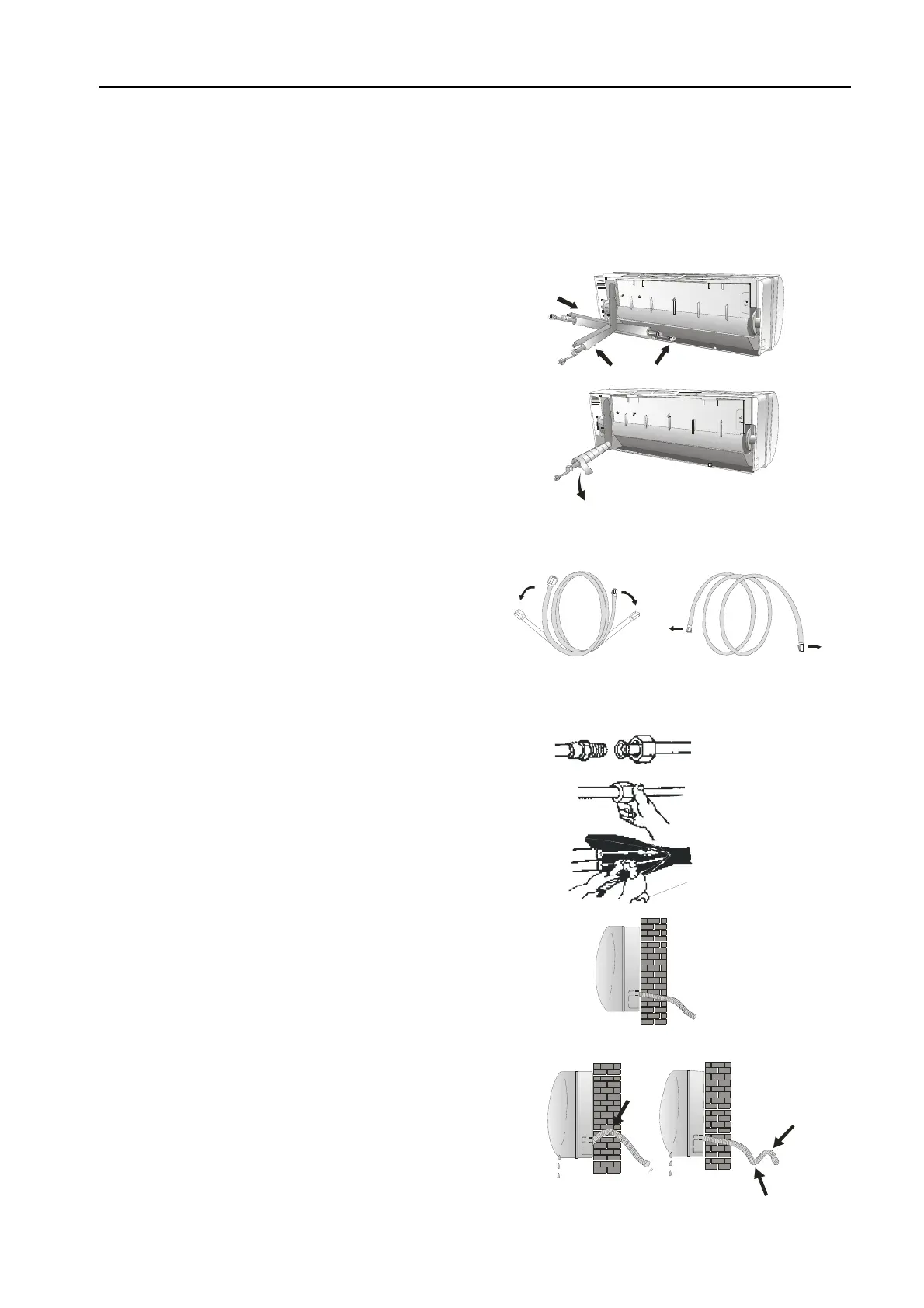

The piping can be run in the 3 directions
indicated by numbers in the picture. When the
piping is run in direction 1 or 3, cut a notch
along the groove on the side of the indoor unit
with a cutter.
Run the piping in the direction of the wall hole
and bind the copper pipes, the drain pipe and
the power cables together with the tape with the
drain pipe at the bottom, so that water can flow
freely.
9.2.5 Connecting the pipes.
z Do not remove the cap from the pipe
until connecting it, to avoid dampness
or dirt from entering.
z If the pipe is bent or pulled too often, it
will become stiff. Do not bend the pipe
more than three times at one point.
z When extending the rolled pipe,
straighten the pipe by unwinding it
gently as shown in the picture.
9.2.6 Connections to the indoor unit
1).Remove the indoor unit pipe cap (check that
there is no debris inside).
2).Insert the fare nut and create a flange at the
extreme end of the connection pipe.
3).Tighten the connections by using two
wrenches working in opposite directions.
9.2.7 Indoor unit condensed water drainage
The indoor unit condensed water drainage is
fundamental for the success of the installation.
1).Place the drain hose below the piping,
taking
carenottocreatesiphons.
2).Thedrainhosemustslantdownwardstoaid
drainage.
3).Donotbendthedrainhoseorleaveit
protruding ortwistedanddonotputtheend
ofitinwater.Ifanextensionisconnectedto
thedrainhose, ensurethatitislaggedwhen
itpassesintothe indoorunit.
3
2
1
Shape the connection pipe
NO
YES
Extending the rolled pipe
torque wrench
YES
NO NO
