22245
C200
4-19-02C
11-22-02D

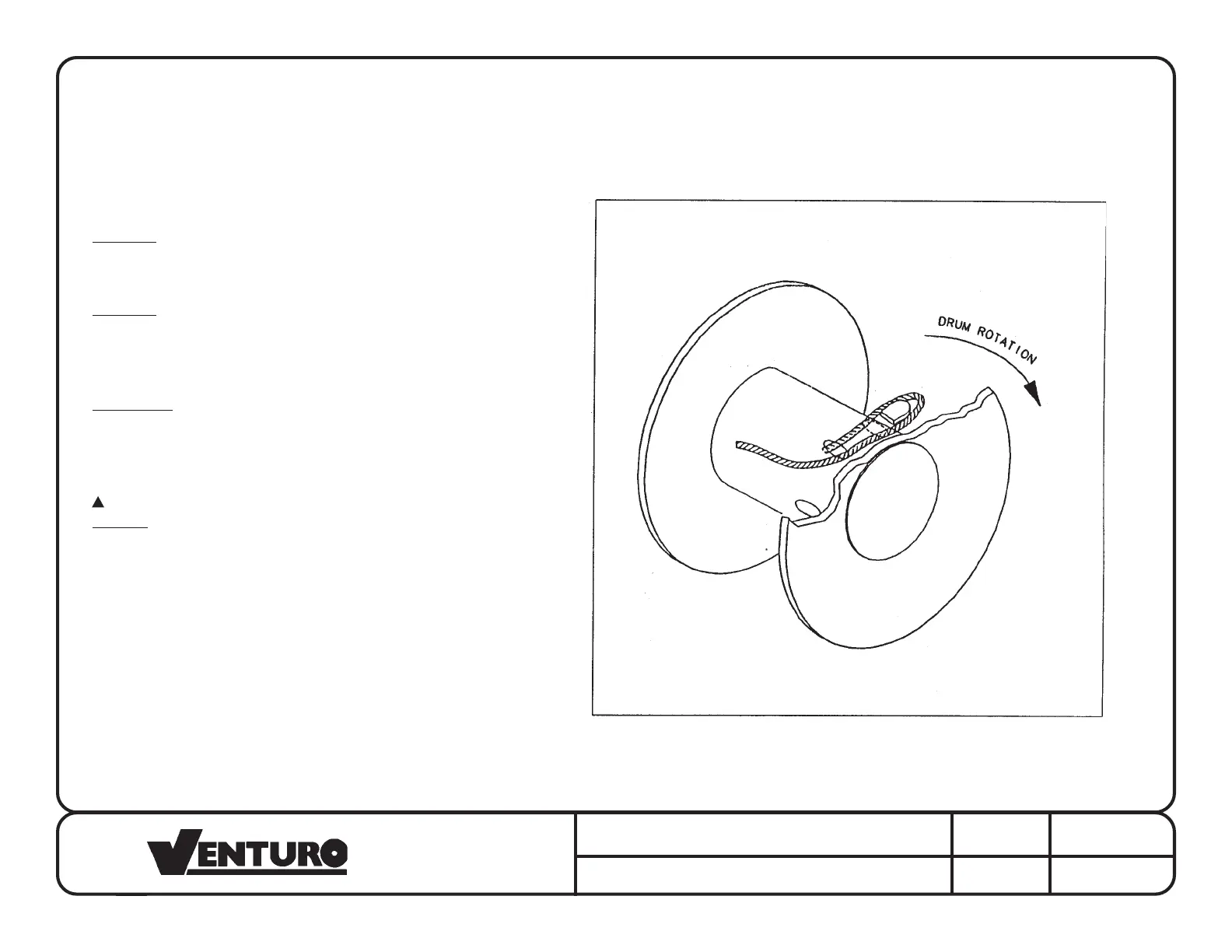

WIRE ROPE INSTALLATION DRAWING
ET/HT25K(X),HT40KX, HT50KX
SUPERCEDES
TITLE
DATE
SECTION
CINCINNATI, OHIO
MANUFACTURING, INC.
STEP 1: INSERT WIRE ROPE END THROUGH
ANTI-TWO-BLOCK WEIGHT.
STEP 2: INSERT WIRE ROPE END INTO POCKET
OPENING AND THROUGH WEDGE
POCKET.
CAUTION: IF THE WIRE ROPE IS NOT INSTALLED
FOR THE CORRECT DRUM ROTATION,
THE WINCH BRAKE VALVE WILL NOT
HOLD THE LOAD.
NOTE: ON THE ET25K(X) A 7/16" HEX NUT
WILL BE USED IN LIEU OF A WEDGE.
WIRE ROPE INSTALLATION
