Table 1-8
Available NetBackup 5240 Appliance PCIe-based I/O
configuration options (continued)
Slot
8 ***
Slot
7 **
Slot
6
Slot
5
Slot
4
Slot
3
Slot
2
Slot
1 *
I/O
configuration
option
**** I/O configuration option notes:
A NetBackup 5240 Appliance using configuration H does not support Fibre Channel Replication (FCR) as a Target.
A NetBackup 5240 Appliance using configurations D, E, H, and K can be configured as a dual port or as a quad
port Fibre Transport Media Server (FTMS) server.
You can use the Initiator ports for tape-out operations and VMware Datastores in the following scenarios:
If you do not configure the appliance as an FTMS server.
If you configure the appliance as a dual port FTMS server.
You can also use the ports as a Fibre Channel Replication Initiator, or in combination with the previously mentioned
uses.
NetBackup 5330 Appliance compute node PCIe slot I/O configuration
options

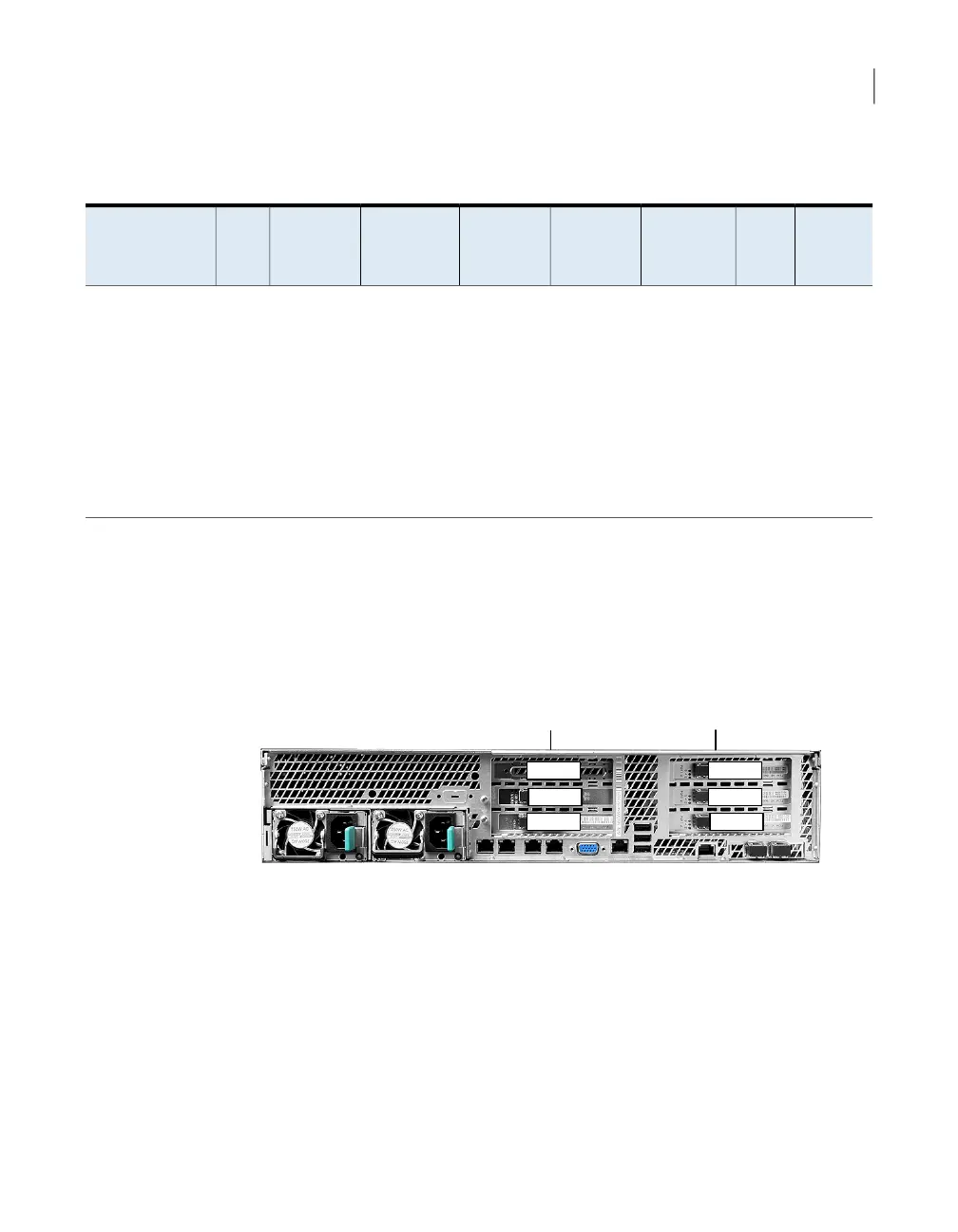

The rear panel of the NetBackup 5330 Appliance compute node contains six PCIe
slots that are numbered 1 to 6. Slots 1, 2, and 3 are located in PCIe Riser Assembly
2. Slots 4, 5, and 6 are located in PCIe Riser Assembly 1.
Riser 2 Riser 1
Slot 1
Slot 2
Slot 3
Slot 6
Slot 4
Slot 5
All PCIe slots are populated with an 8 Gb Fibre Channel (FC) host bus adapter
(HBA) card or a 10 Gb Ethernet network interface card (NIC). Slots 1 and 4 are
reserved exclusively for attachment to the Primary Storage Shelf.
For complete information about FC HBA card usage, see the NetBackup Appliance
Fibre Channel Guide.
Table 1-9 describes the default PCIe slot I/O configuration options for the NetBackup
5330 Appliance.
23Introducing Fibre Channel support on NetBackup Appliance
Supported data transfer methods for NetBackup appliances
