RS-485
Reader
Standard
Wiegand
Reader
Verkada/RS-485 Reader Wiegand Reader
Wire Color Signal
Green Data 0
White/Gray Data 1
Brown Red LED
Orange Green LED
Red 12V Power+
Black 12V Power-
Wire Color Signal
Red 12V Power+
Black 12V Power-
Green B
White A

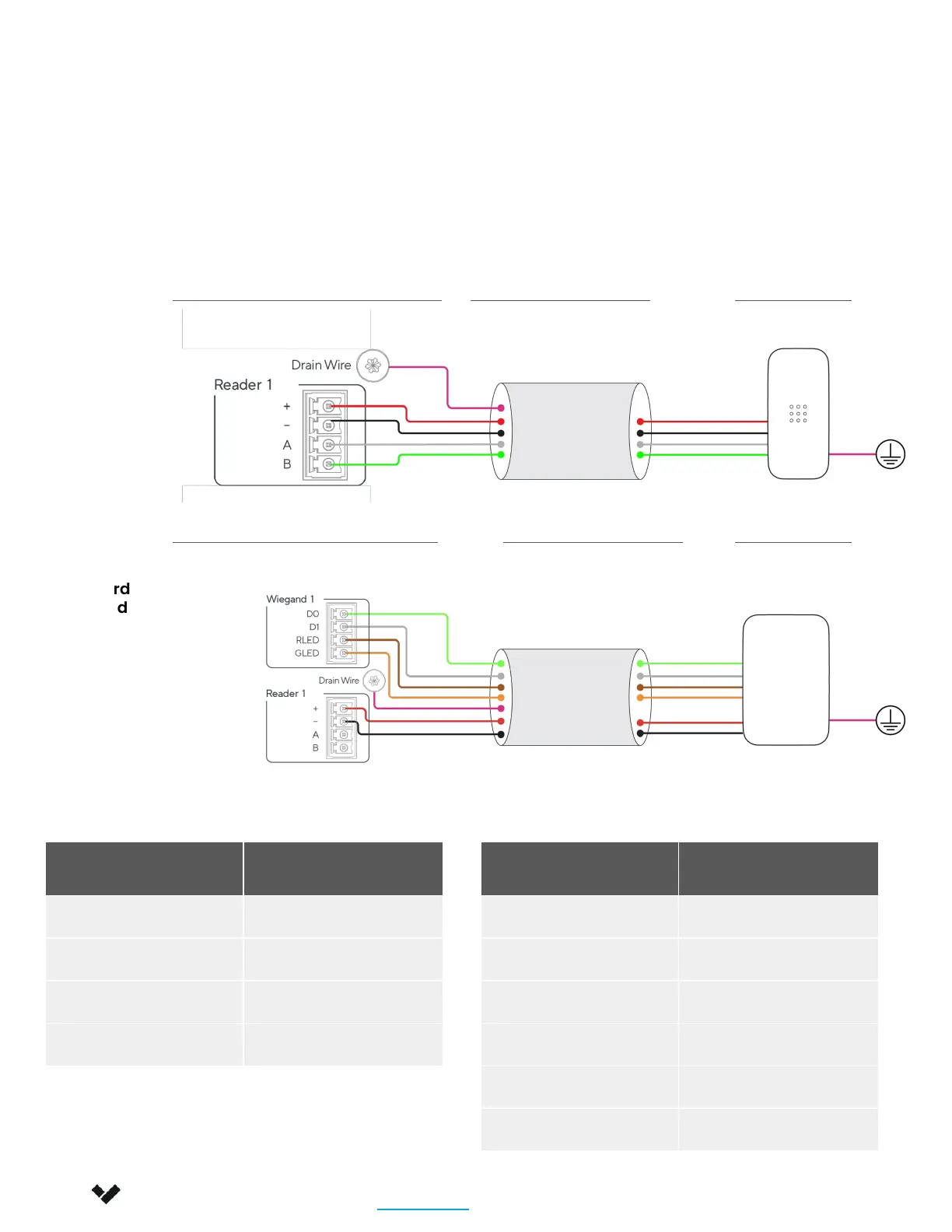

3. Connect the Reader
The AC12 is rated to power readers at 12V up to 250mA via the + (VIN) and – (GND) connection.
Reader power outputs are fuse protected up to 750mA. The reader cable shield should be secured
to the nearest drain wire screw on the AC12.
Installation
Connecting a Door 3/5
AC12
Shielded LV Cable
Verkada Reader
AC12 Shielded LV Cable Wiegand Reader
