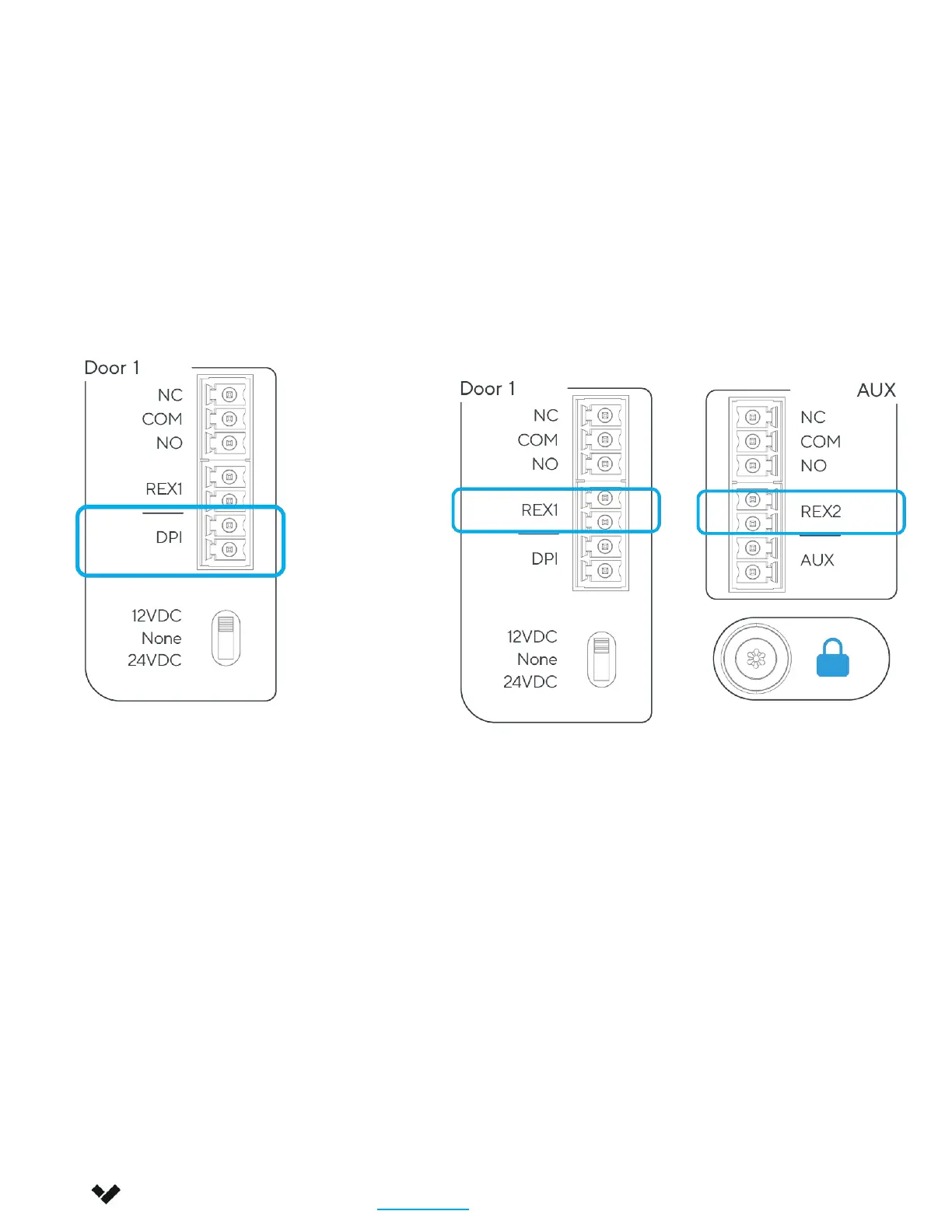

Door Position Indicator (DPI)
Verkada AC12 expects the DPI to be
NORMALLY CLOSED (NC)
Request-to-Exit (REX)
Verkada AC12 expects the REX to be
NORMALLY OPEN (NO)
The REX can be configured in Verkada Command to release the lock; this is most commonly seen in
electromagnetic locks. The REX unlock time and normal state can be configured.
Note: If using AC12 in an exit configuration, you will need to support a form of physical security egress.
4. Connect the Inputs
Both the Door Position Indicator (DPI) and the Request-to-Exit (REX) inputs are dry contacts.
Installing these inputs is optional. They can be configured in Verkada Command.
Installation
Connecting a Door 4/5
