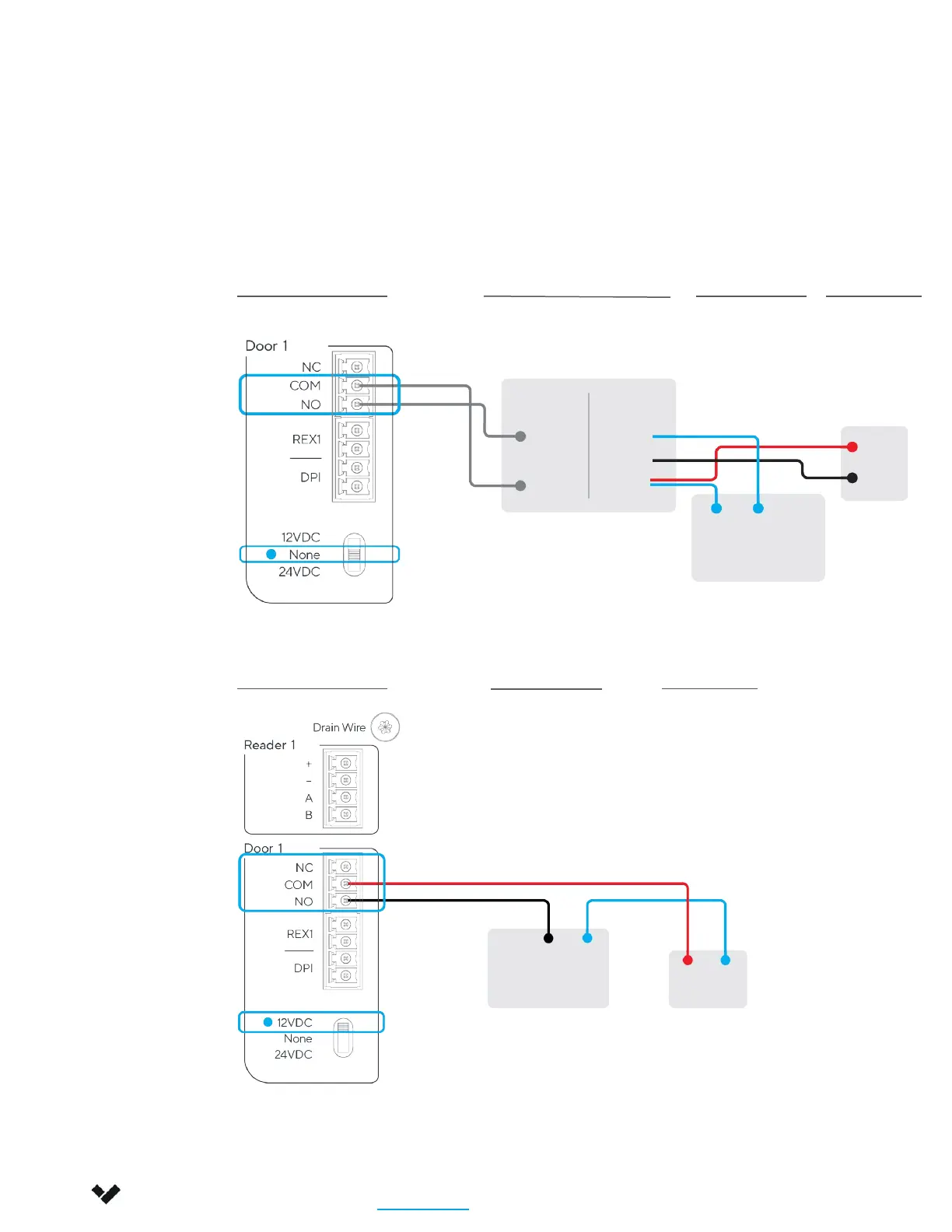

5a. Wire the REX with the Door Strike
For safety-related applications, wire the REX in parallel with the Door Strike. You can wire additional
REX switches and sensors to the door cassette if needed.
Installation
Connecting a Door 5/5
Verkada Inc. 406 E 3rd Ave, San Mateo, CA 94401
sales@verkada.com
All specifications are subject to change without notice
Copyright © 2023 Verkada Inc. All rights reserved.
Door Strike
Input Output
IN
GND
NC
NO
COM
NO COM NC
+
-
NO COM NC
+ -
AC12
REX Door Strike
Access Power Controller REXAC12
