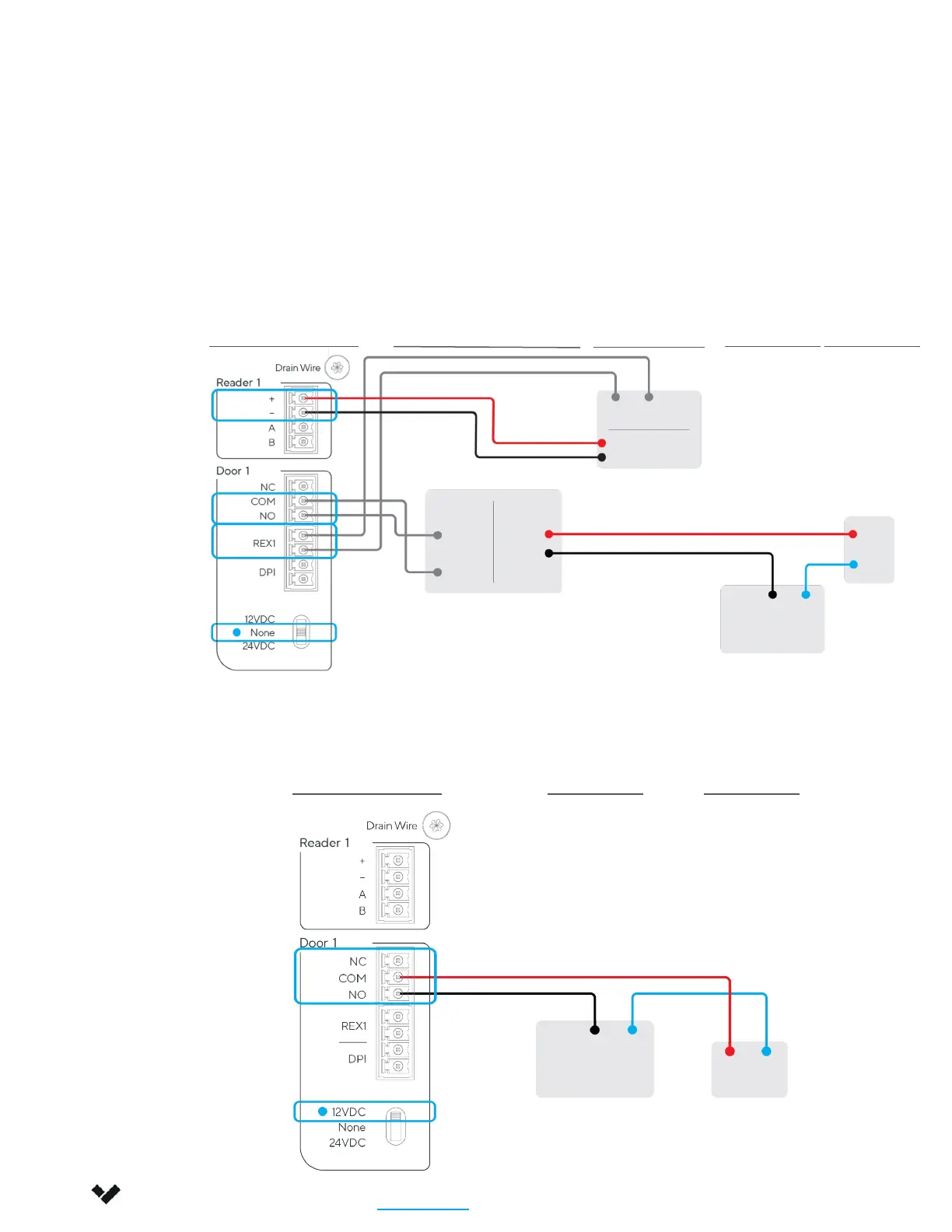

23
Dry
Configuration
Wet
Configuration
5b. Wire the REX with an Electromagnetic Lock
For safety-related applications, wire the REX directly to the maglock. You can wire additional REX
switches and sensors to the door cassette, if needed.
Installation
Connecting a Door 5/5
Verkada Inc. 406 E 3rd Ave, San Mateo, CA 94401
sales@verkada.com
All specifications are subject to change without notice
Copyright © 2023 Verkada Inc. All rights reserved.
REX ButtonAccess Power ControllerAC12 Maglock
Input Output
IN
GND
NC
NO
COM
REX Motion PIR
COM NC
NO
+
-
COM
NCNO
+
-
Power
REX ButtonAC12 Maglock
COM NCNO
+
-
To Next Page
