40- The assembly process is almost complete. Ensure that all the connections and fittings are properly
tightened and closed. Improper connections and/ or assembly will cause leaks that can result damage to
your system and/ or property. Do not use excessive force.
41- Remove the Needle-Valve from the Box. Insert the Valve into its dedicated slot behind the Primary
Chamber’s manifold.
42- There are 3 sets of LLPDE tubing provided with the unit. Different Colors can be used to code incoming,
internal connections and/ or Effluent tubes.
43- Further to that small holes have been milled into the Bubble-Counter’s holder than can help you achieve
a neat set up assembly. You can simply run any tube through any of the 5 machined holes.
44- Use a sharp knife to cut the tubing in desired lengths. It is Imperative to cut the tubes with clean and
straight ends/ edges. Angled cuts will possibly be the cause of leaks immediately or after some time.

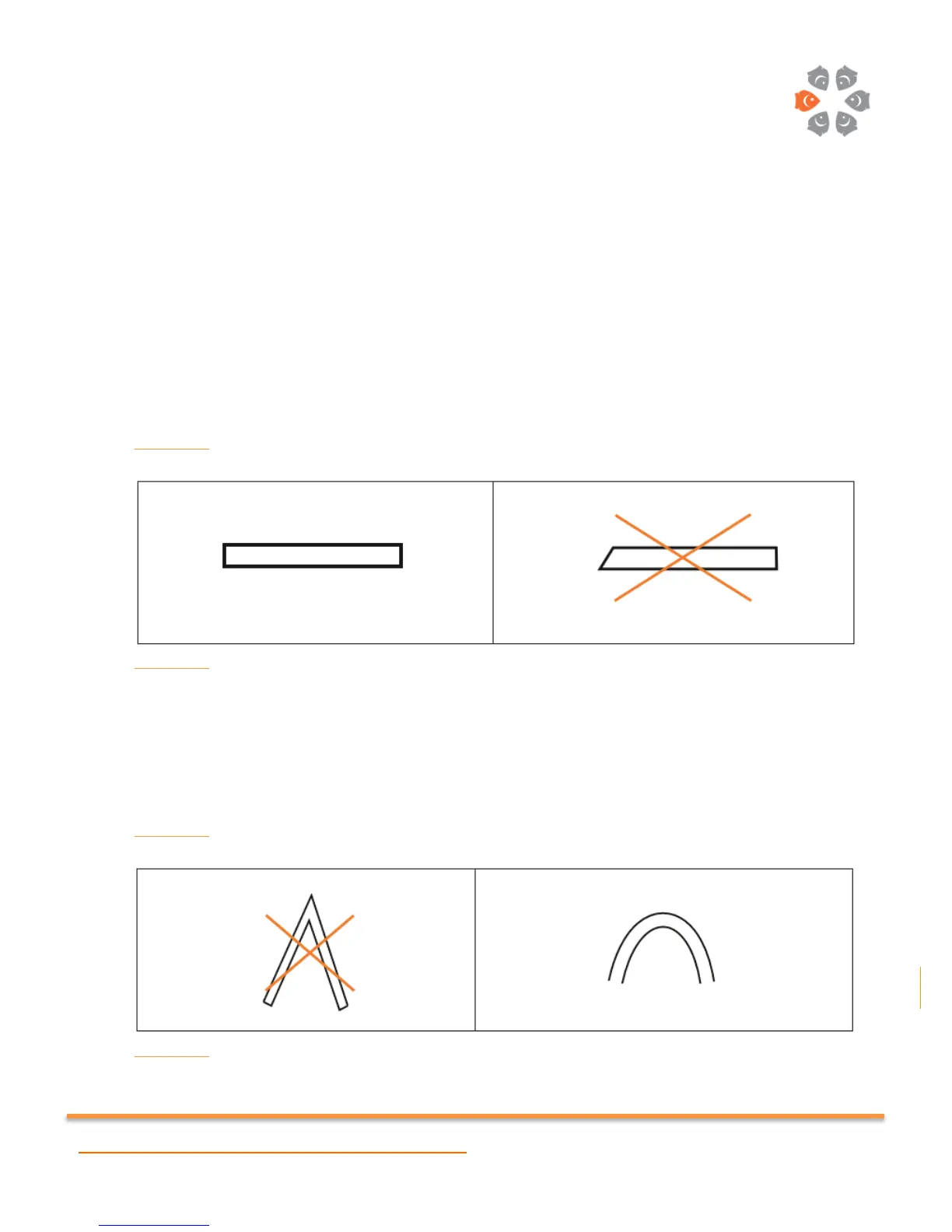

Diagram 2 exhibits how the tubes should be cut.
Diagram 2
45- When connecting the tubes to the fittings; insert the tube in and push firmly to make a tight seal. If not
pushed in properly the connection will leak. If you notice a leak from any Push to connect fittings; remove
the tubing, ensure that the cut is clean and firmly reinsert back into the fitting until the tube stops.
Avoid cutting the tubes too short or fold, tie or close the tubes. Closed tubing can pressurize the
chambers, damage the reactor, cause explosion and/ or significantly reduce performance.
Diagram 3 exhibits how the tubing must be looped in order to avoid blockages.
Diagram 3
