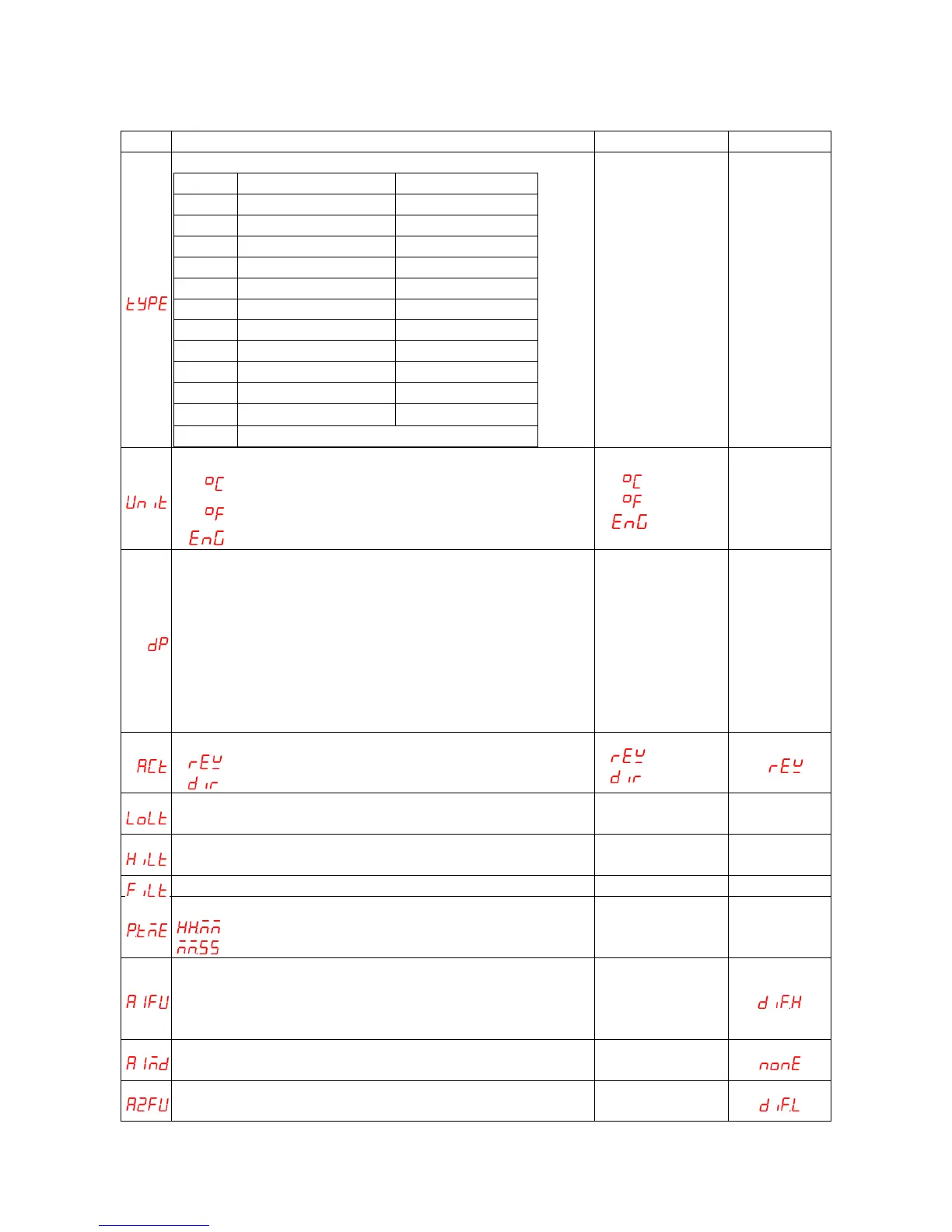

Vertex VT7226+ User Manual

7
OPTION LEVEL
Code
Description
Range
Default
Input type selection.
TYPE
RANGE(℃)
RANGE(℉)
J
-50~1000
-58~1832
K
-50~1370
-58~2498
T
-270~400
-454~752
E
-50~950
-58~1742
B
0~1800
32~3272
R
-50~1750
-58~3182
S
-50~1750
-58~3182
N
-50~1300
-58~2372
C
-50~1800
-58~3272
D-PT
-200~850
-328~1562
J-PT
-200~600
-328~1112
LINE
-1999~9999
Refer to figure.
K
Unit of process value
：Degrees C.
：Degrees F.
: Engineer unit for linear input.
℃
Decimal point selection.
0000：No decimal point.
000.0：0.1 resolution
00.00：0.01 resolution, used for linear input only.
0.000：0.001 resolution, used for linear input only.
After change decimal point, please reconfirm the
parameter.
0000
000.0
00.00
0.000
0000
Output 1 control action.
: Reverse action for heating.
: Direct action for cooling.
Low limit of span or range. Set the low limit lower
than the lowest expected SV and PV display.
Full range
0
High limit of span or range. Set the high limit higher
than highest expected SV and PV display.
Full range
1000
Software filter.
0.0-99.9
10.0
Time scale for timer alarm.
Hours:Minutes;
Minutes:Seconds
00.00~99.59
00.00
Alarm 1 function. Refer to alarm function section for
detail.
If A1FU=None, it means alarm function is cancelled.
None, Hi, Lo,
dif.H, dif.L,
bd.Hi , bd.Lo
t.on, t.oFF
Alarm 1 mode. Refer to alarm mode section for
detail..
none, Stdy,
Lath, St.La
Alarm 2 function. Refer to alarm function section for
detail
none, Hi, Lo,
dif.H, dif.L,
