Mounting the Wings

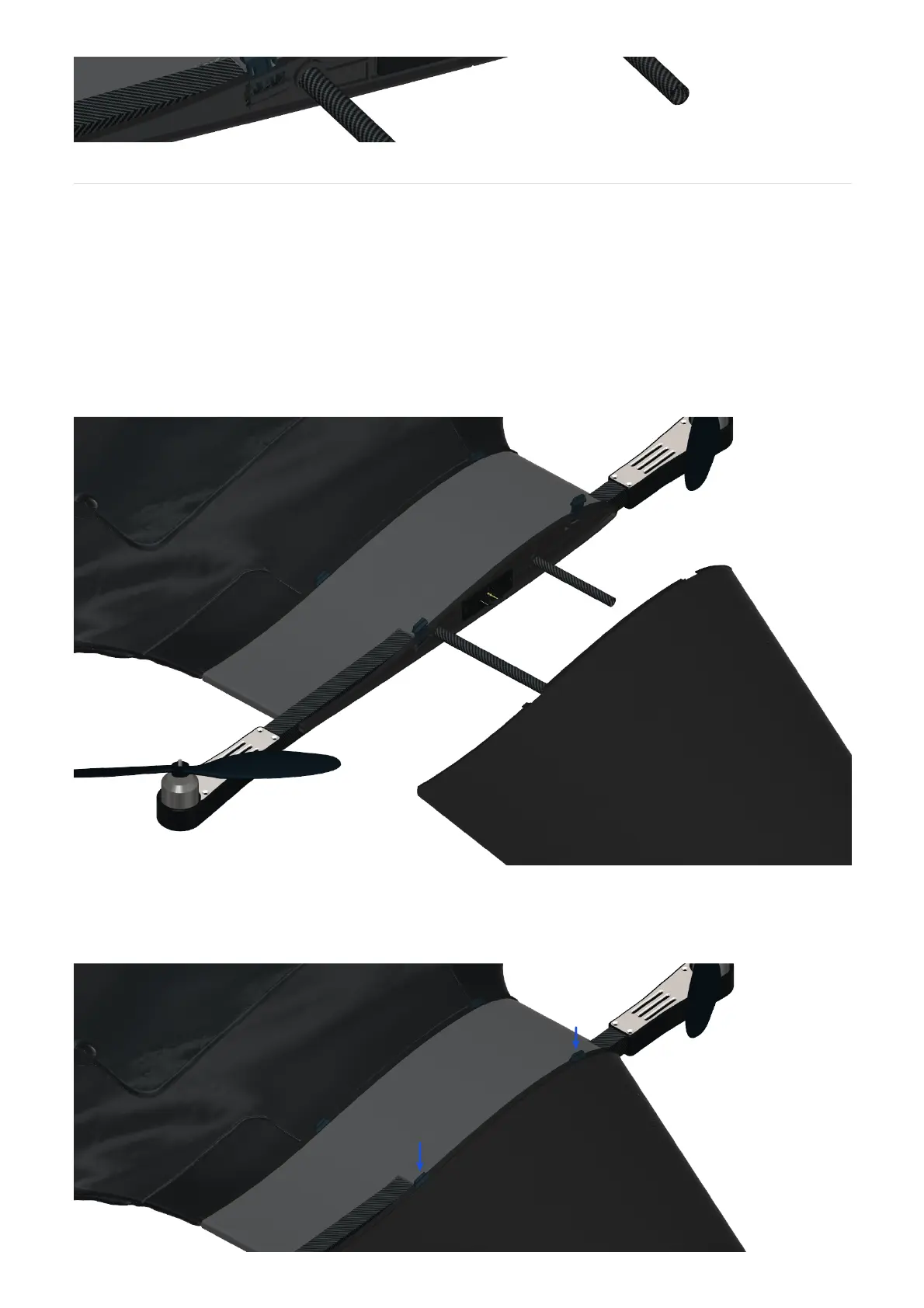

After attaching the modules, make sure the lock pins on the wing side are in the open (up) position as shown
on the image above.
Slide the wings over the carbon spars and press them firmly against the VTOL module. If you feel any
resistance it is possible that the carbon spars are not properly centered.
Lock the wings by pushing down the lock pins on the VTOL module, and confirm the wings are securely
fastened.
