7
AC1
6-GB75
AD1
AC2
M773
5-GB173
6-GB959
6-GB91
4-GB173
4-GB959
4-GB91
1.As the unit has a large size, please assemble it in a space which is big enough.
2.Open the packing box, take out the parts and remove packing materials.
Classify all parts and tidily put them on vacant oor.
3.Ensure that it's correctly assembled and the parts are complete according to
assembly steps.
4.It requires at least three people.

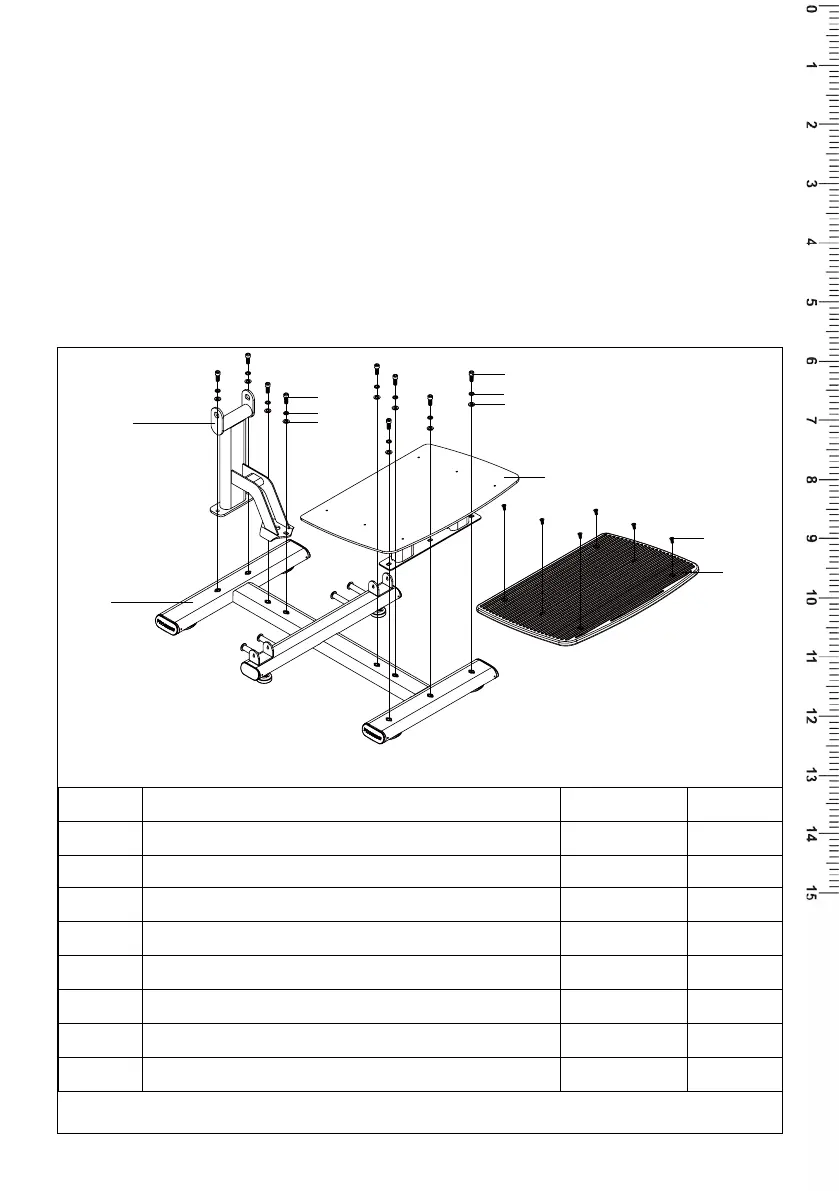

Main Frame Assembly Step
ASSEMBLY INSTRUCTIONS
REF# DESCRIPTION SPEC. QTY.
AC1 Frame 1
AC2 Footrest Assembly 1
AD1 Back Cushion Assembly M12*30 1
M773 Footrest Plate 1
GB75 Hexagonal Socket Countersunk Head Screw M8*20 6
GB173 Hexagon Socket Button Head Screw M12*30 9
GB91 Flat Washer M12 9
GB959 Spring Washer M12 9
To Next Page
