ITEM# DESCRIPTION SPEC. QTY.
AD2 Back Cushion Assembly 1
J01 E1 Seat Cushion Assembly 1
D20 Back Cushion Supporting Assembly M12*30 1
D25 Spacing Ring φ35*4.5 1
D35 Stationary Cover, Axle φ49*5 2
H35 Limit Sleeve φ68*40 2
M51 Shock Absorber Pad φ80*37 2
M1282 Stop sleeve 64*38 2
GB49 Hexagon Socket Button Head Screw M8*20 2
GB99 Hexagon Socket Set Screw with Flat Point M8*10 4
GB118 Deep groove ball bearing GB6005 2
GB163 Flat Washer M5 2
GB165 Hexagon Socket Button Head Screw M5*10 2
GB50 Hexagonal Socket Head Cap Screw M8*25 4
GB89 Flat Washer M8 4
GB92 Spring Washer M8 4

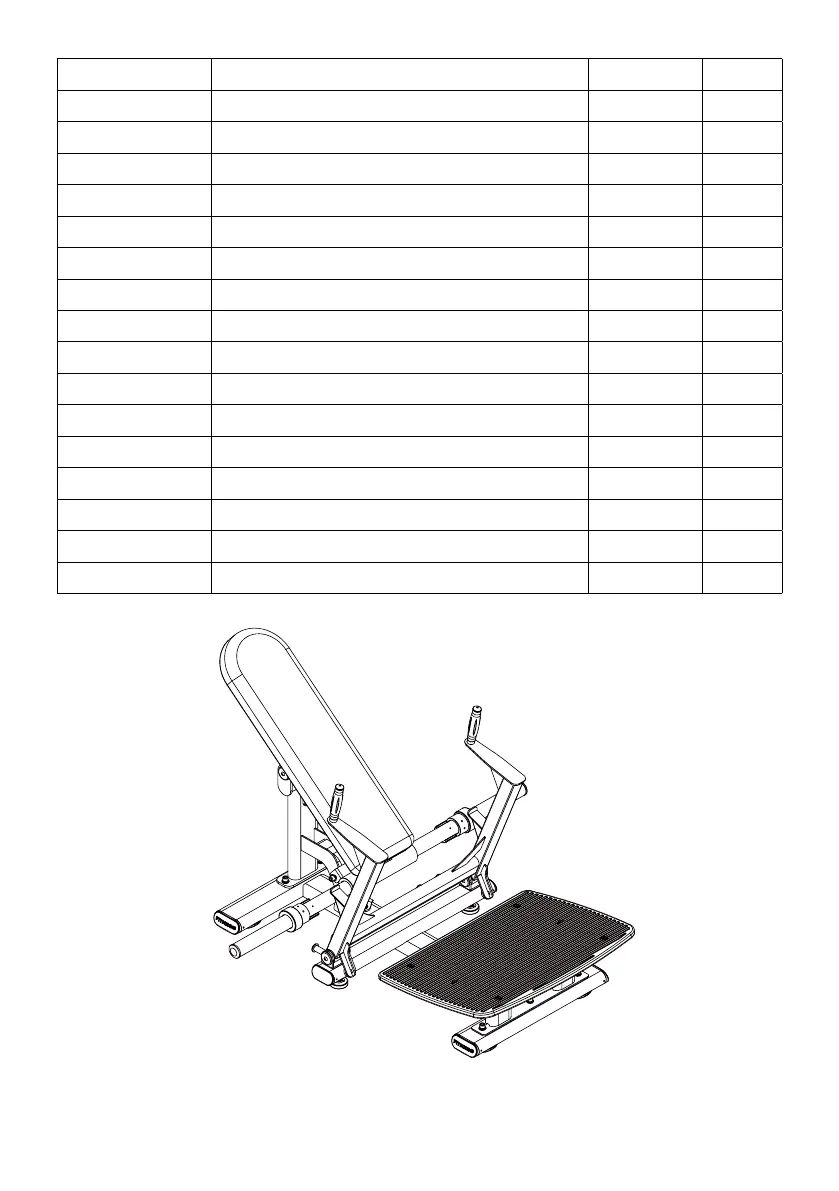

Assembly View(Cushion)
Reinspect all connecting parts, tighten all screws in case of slack. Finally,
prior to use, a trial workout must be taken by professional to ensure it’s correctly
assembled.
