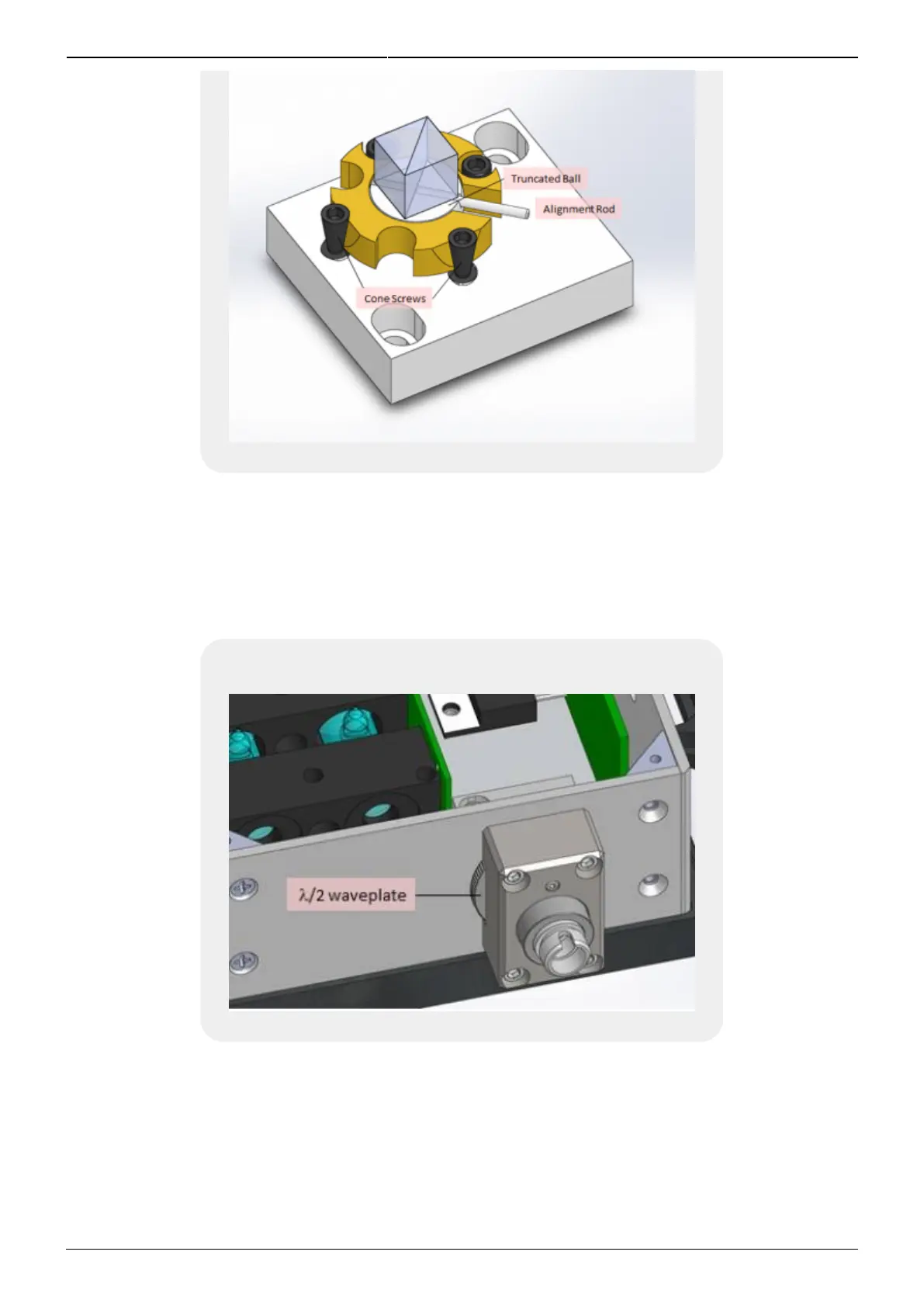

Fig. 4: Input beam tilt plate adjustment
λ/2 Waveplate
A waveplate attached to the front plate by magnets can be used to select the splitting fraction of the
Tilt Plate PBS.
Fig. 5: Half wave plate adjuster
Quick Setup Guide
Set the D2-210 in the beam path of the laser so that the beam goes through the center of the1.
input and output holes. Loosely apply the four 1/4-20 mounting screws and washers to affix the
