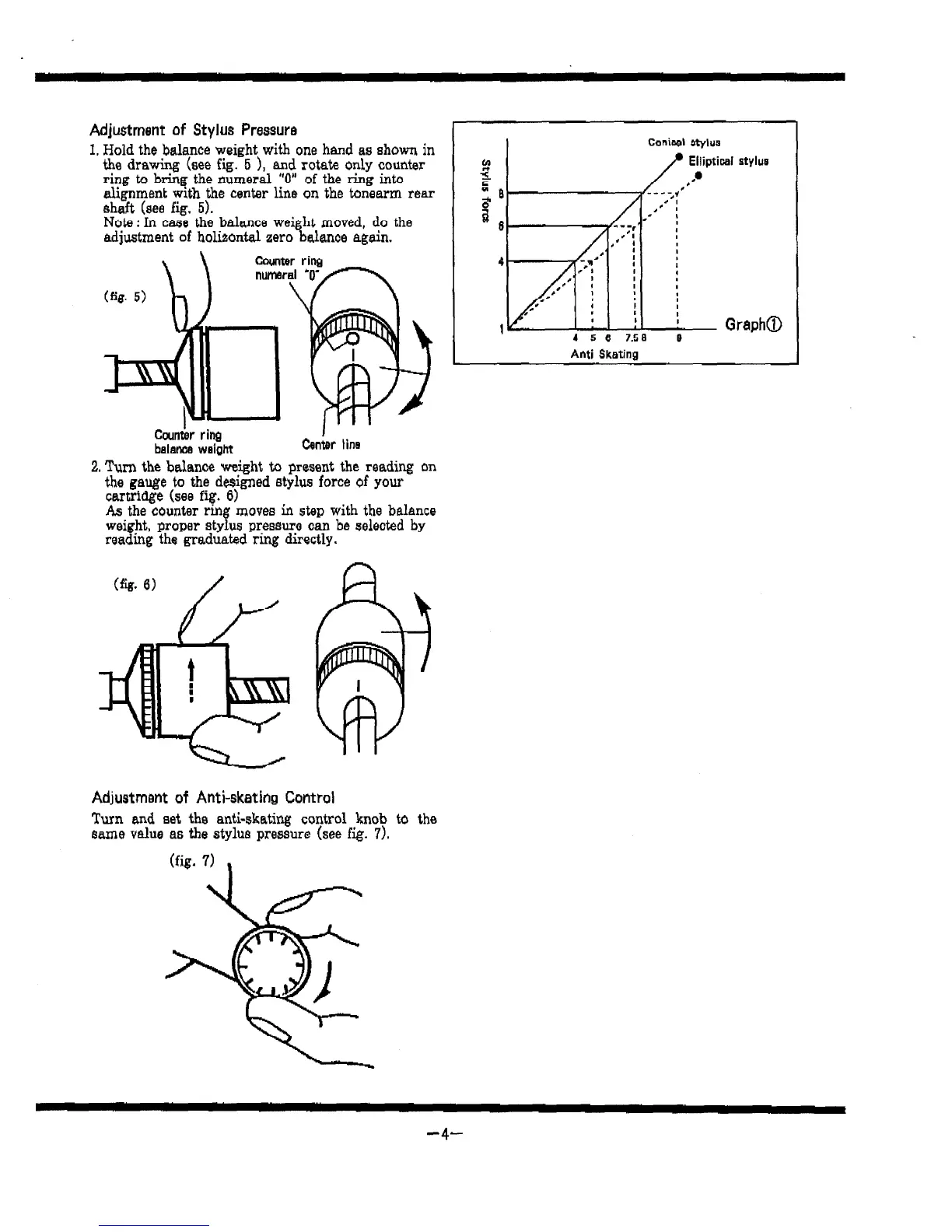

Adjustment af Stylus Pressure
1. Hold the balance weight with one hand as shown in
the drawing (see fig. 5 1, and rotate only counter
ring to bring the numeral “0” of the ring into
alignment with the center line an the tonearm tear
shaft (see fig. 5).
Note : In case the balance weight moved, do the
adjustment of holiaontal zero balance again.
Counkr ring
balance weight
J
Center line
2. Turn the balance-weight to prosent the reading on
the gauge to the designed stylus force of your
cartridge kee fii. 6)
As the counter ring moves in step with the balance
weight, proper stylus presauro can be selected by
reading the graduated ring directly.
Adjustment of Anti-skating Control
Turn and set the anti-skating control knob to the
Bame value as the stylus pressure (see fig. 7).
(fig. 7)
,
I
Conical stylus
5
6.
i:
B
%3
4
4
5 6 7.5 a e
Anti Sketinn
-
-4-
