VESTEL 230 - Assemble and Disassemble; Changing The Door Swing Direction

WHITE GOODS
DOUBLE DOOR – 230 – 260 – 280
CUSTOMER
SUPPORT

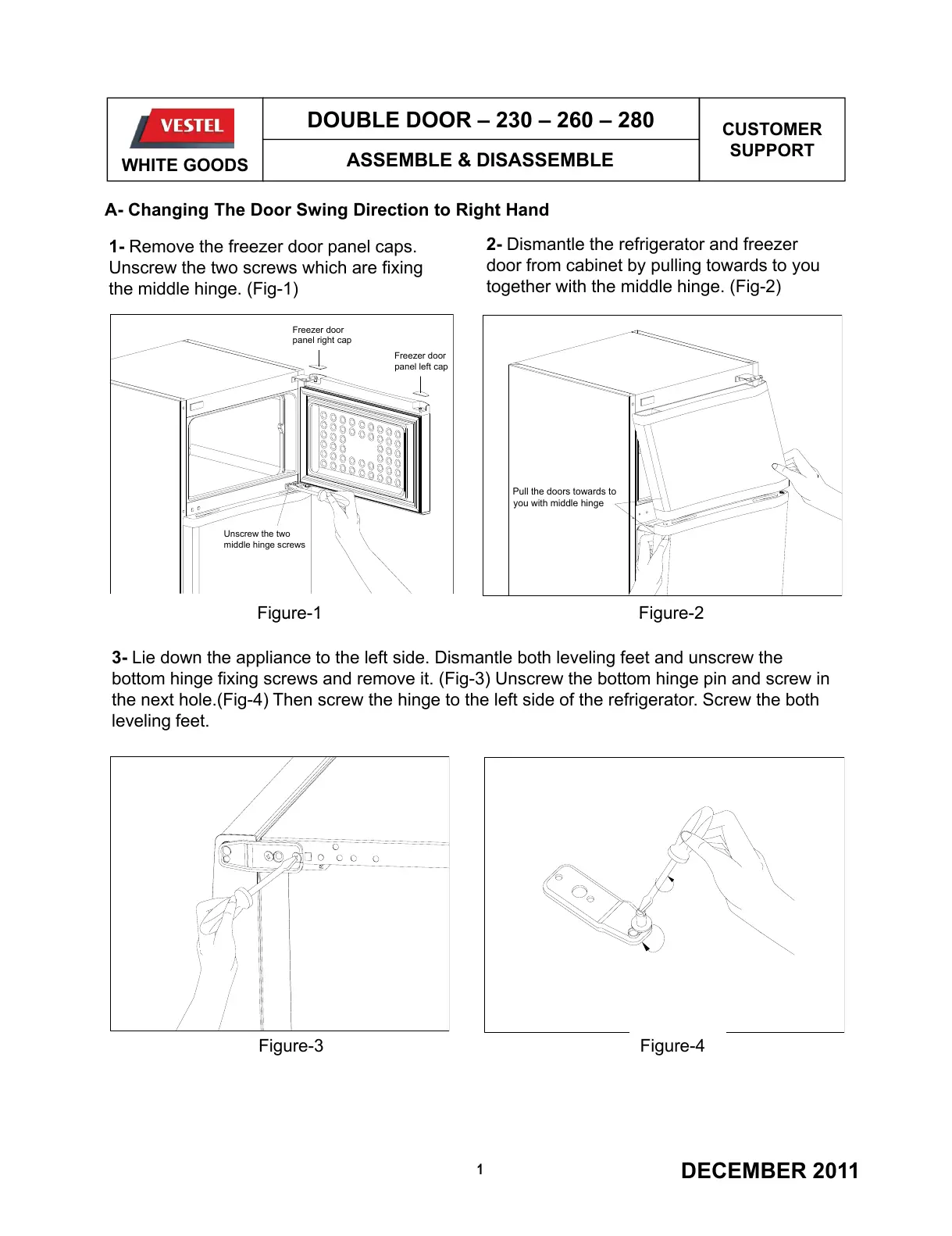

ASSEMBLE & DISASSEMBLE
1- Remove the freezer door panel caps.
Unscrew the two screws which are fixing
the middle hinge. (Fig-1)
2- Dismantle the refrigerator and freezer
door from cabinet by pulling towards to you
together with the middle hinge. (Fig-2)
Freezer door
A- Changing The Door Swing Direction to Right Hand
Freezer
door
panel right cap
Freezer door
panel left cap
Unscrew the two
middle hinge screws
Pull the doors towards to
you with middle hinge
Figure
-
1
Figure
-
2
Figure
1
Figure
2
3- Lie down the appliance to the left side. Dismantle both leveling feet and unscrew the
bottom hinge fixing screws and remove it. (Fig-3) Unscrew the bottom hinge pin and screw in
the next hole.(Fig-4) Then screw the hinge to the left side of the refrigerator. Screw the both
leveling feet.
Figure
-
3
Figure
-
4
DECEMBER 2011
1
Figure
-
3
Figure
-
4
