Ventilation

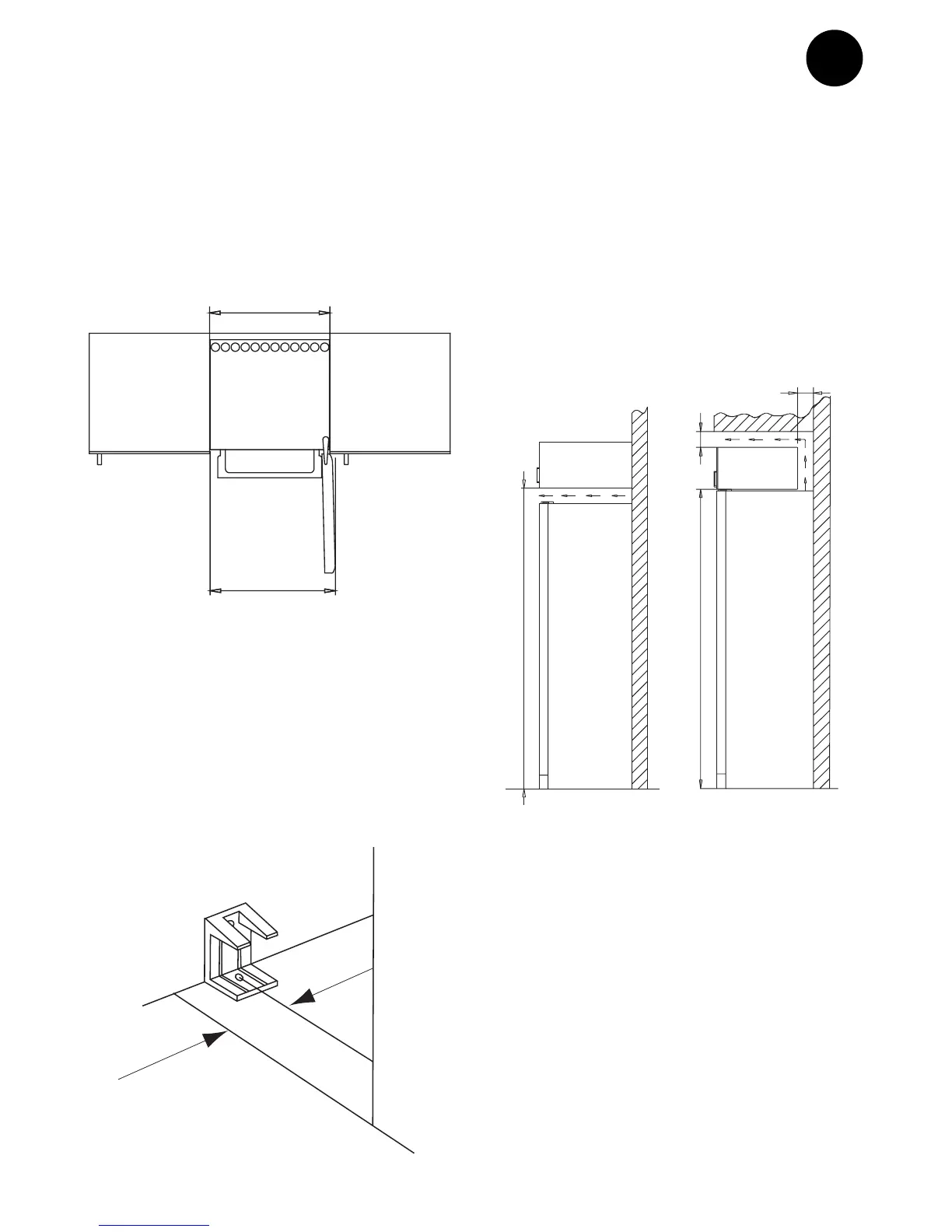

It is important that the appliance be
well ventilated and that air can circulate
unhindered above, below and around it. The
fi gures below illustrate how the necessary
air circulation can be ensured (fi gs 6 and
7). If two fridge/freezers are placed side
by side, there must be at least 30 mm
clearance between them.
1650/1950
100
100
1560/1860
fi g. 6
fi g. 7
The appliance
viewed from above
If the appliance is placed beside a wall,
there must be suffi cient room for the freezer
door to be opened wide enough to allow the
drawers to be pulled out (fi g. 4).
600
610
fi g . 4
Fitting the tilt-stop
A tilt-stop can be fi tted to prevent the
unit from tilting forwards when the door
is opened. Mount the tilt-stop on the wall
behind the appliance 80-100 mm from the
left or right side of the appliance depending
on the side on which the door is hinged.
The tilt-stop must always be fi tted on the
side opposite to the hinge (fi g. 5).
80 - 100 mm
fi g. 5
