This document is a user manual for the VEVOR Model: K5001, which appears to be an induction or ceramic cooktop.

Function Description

The VEVOR Model: K5001 is a cooktop designed for heating and cooking food. It features multiple furnace areas, each with independent power control. The cooktop operates by heating, with digital displays indicating the heating level. It includes a timing function for setting a shutdown time, a child lock for safety, and a high-temperature warning to prevent scalding. The cooktop is designed for household use and is not intended for industrial or medical applications.

Important Technical Specifications

Model: K5001
Power Distribution (approximate, +/-10%):
- Upper left: 240V/2000W
- Lower left: 240V/1500W
- Middle: 240V/2000W
- Upper right: 240V/2000W
- Lower right: 240V/1500W
Product Dimensions: 770 x 520 x 82 mm (30.3 x 20.47 x 3.34 inches)
Fuselage Thickness (without feet): 65 mm (2.55 inches)
Opening Roar Size (Cut-out Dimensions): 760 x 500 x 150 mm (29.92 x 19.68 x 5.9 inches)
Heating Stages: 10 stages (1-9 and P for rapid heating)
Temperature Range (Celsius): 60-80-100-120-140-160-210-240-270 degrees C
Temperature Range (Fahrenheit): 140-176-212-248-284-320-356-410-464-518F
Timing Function: Up to 99 minutes
Voltage Adaptation Range: 90-270 VOLTS
Power Supply (US): Three-phase, 240V 50A (voltage between two live lines is 240VAC)
Power Supply (Europe/China): Single-phase, 220V 50A

Usage Features

Power On: Open the power supply knife of the machine cable. All display units light up once, and the buzzer sounds.
Power Button: Each furnace area has an independent power button. Press to turn on and enter standby state (displays '0').
Standby State: Displays '0' (no heating). Automatically exits if no operation for a long time.
Heating Adjustment: Push the regulator to adjust firepower from 1 to 9. 'P' indicates rapid heating, which returns to '9' after 3 minutes. Turn to '0' to stop heating.
Shutdown: Long press the power button for two seconds to exit heating and return to shutdown state.
Child Lock: Long press the child lock key for 2-3 seconds to lock or unlock. 'Lo' is displayed when locked. When locked, no operations are possible except child lock.
Timing Function: In heating mode, press the timing button to enter preset timing. Default time is 00 minutes. Push the adjustment time (progressive 1 minute, up to 99 minutes). The small dot at the lower right corner of the display digital number in the furnace area flashes to indicate active timing. Time display switches automatically between furnace areas every 5 seconds.
High Temperature Warning: After use, the furnace panel may still have residual heat. A warning display 'H' indicates high temperature, cautioning against scalding.
Usable Pans: All flat-bottom pots are suitable. Food weight should be limited to within 4kg.
Installation: Requires 30-50mm heat dissipation space on left, right, and behind. The counter interior should be large enough for cold air intake. Inlet air (cold air) must be separated from outlet air (hot air) space. The air inlet and outlet space of the counter should have an air roar. The electric hob should be installed by a professional into a cabinet made of wood, marble, resin, etc. The wall and heating area above the table surface must withstand heat.

Maintenance Features

Cleaning:
- Shut off power and unplug before cleaning.
- Clean the appliance only after it has cooled down completely.
- Use a litmusless detergent to remove dirt.
- Use a neat wet cloth to clean the unit after removing dirt.
- Do not clean directly with water, as it may cause malfunction.
- Keep the ceramic plate and pan clean before cooking to prevent dirt charring and discoloration.
- Clean air vent/entry dirt with a vacuum cleaner. For oily dirt, use a little litmusless detergent with a toothbrush.
- Do not use caustic impregnates, benzine, scrubbing brushes, or polishing powder, as they may damage the cooker or cause chemical reactions.
Troubleshooting: The manual provides a troubleshooting guide for common issues like no indicator light, "buzz" noise, no heating, sudden stops during operation, and no response from keys. It advises against opening and repairing the unit oneself and to contact after-sales service if the problem cannot be identified.
Safety Reminders:
- If the surface is cracked, turn off the appliance to avoid electric shock.
- Do not overheat an empty pan.
- Do not carry the induction cooker with the appliance loaded.
- Keep children away from the appliance to avoid scalding and other risks.
- Avoid touching the black crystal plate and appliance surface during operation due to high temperatures.
- Do not use in bathrooms, near gas stoves, or in damp/inflammable/explosive areas.
- Do not place metal objects (knives, forks, spoons, lids) on the cooking area to prevent them from getting hot.
- Place horizontally, at least 30 cm away from walls/objects.
- Do not heat indirectly with paper, cloth, or other articles on the panel to prevent combustion.
- Do not directly heat canned or sealed containers to avoid explosion.
- Do not heat aluminum foil directly or indirectly.
- Unplug the power cord when not in use to prevent damage from long-term electricity use or fire.
- Do not touch the panel immediately after cooking due to residual heat.
- Damaged cords must be repaired by the manufacturer's maintenance department or qualified personnel.
- Do not use pots/pans with painted bottoms to avoid high temperature burns.
- Do not heat plastic containers or paper on panels to prevent burning.
- Avoid hitting or touching the black crystal panel with hard or sharp objects to prevent cracking.
- Do not use on carpets or tablecloths to avoid blocking exhaust/suction ports, which hinders heat dissipation.
- Do not heat food directly on the panel, especially high-fat food, as overheating oil may ignite.
- Cannot be operated by external timer or independent remote control system.
- Do not place on iron, stainless steel, aluminum, or other metal panels, as magnetic field lines may burn out the bottom of the induction cooker.
- Do not flush with water directly to prevent internal electronic component failure.
- A dedicated power protection air switch must be incorporated into the fixed wiring.
- Never operate the cooker without food in the pot to avoid affecting performance and potential danger.
- Do not place rough or uneven appliances, which may damage the ceramic surface.
- Never wash the ceramic cooker hob directly with water; steam cleaners are not to be used.
- The appliance is not intended for use by unsupervised children or handicapped persons.
- Do not put detergents or flammable materials in the equipment installed under the ceramic cooker hob.
- If used on a table, ensure the table material is high-temperature resistant (e.g., marble) due to heat generated at the bottom.

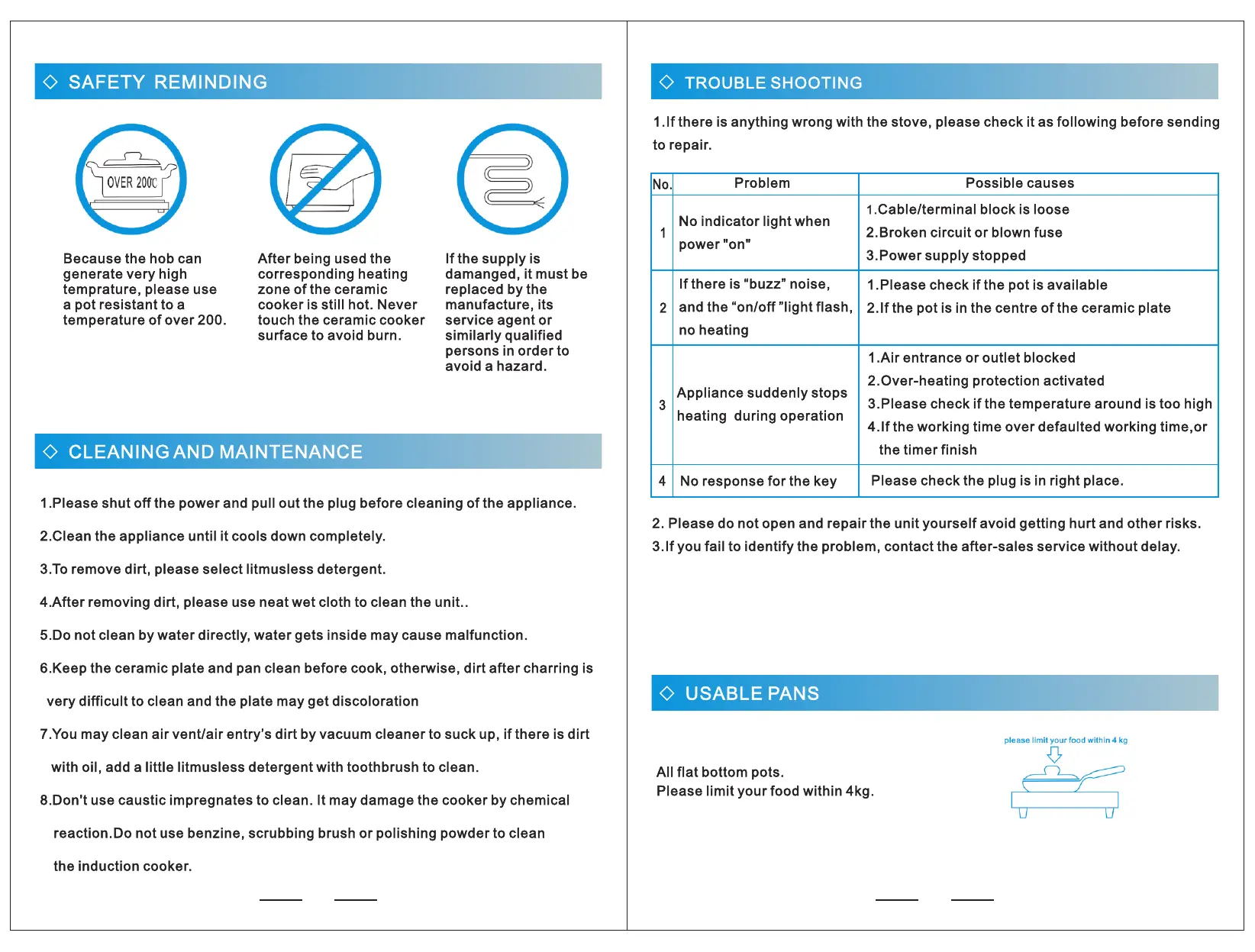

VEVOR K5001 - Safety Reminding; Trouble Shooting; Cleaning and Maintenance; Usable Pans
