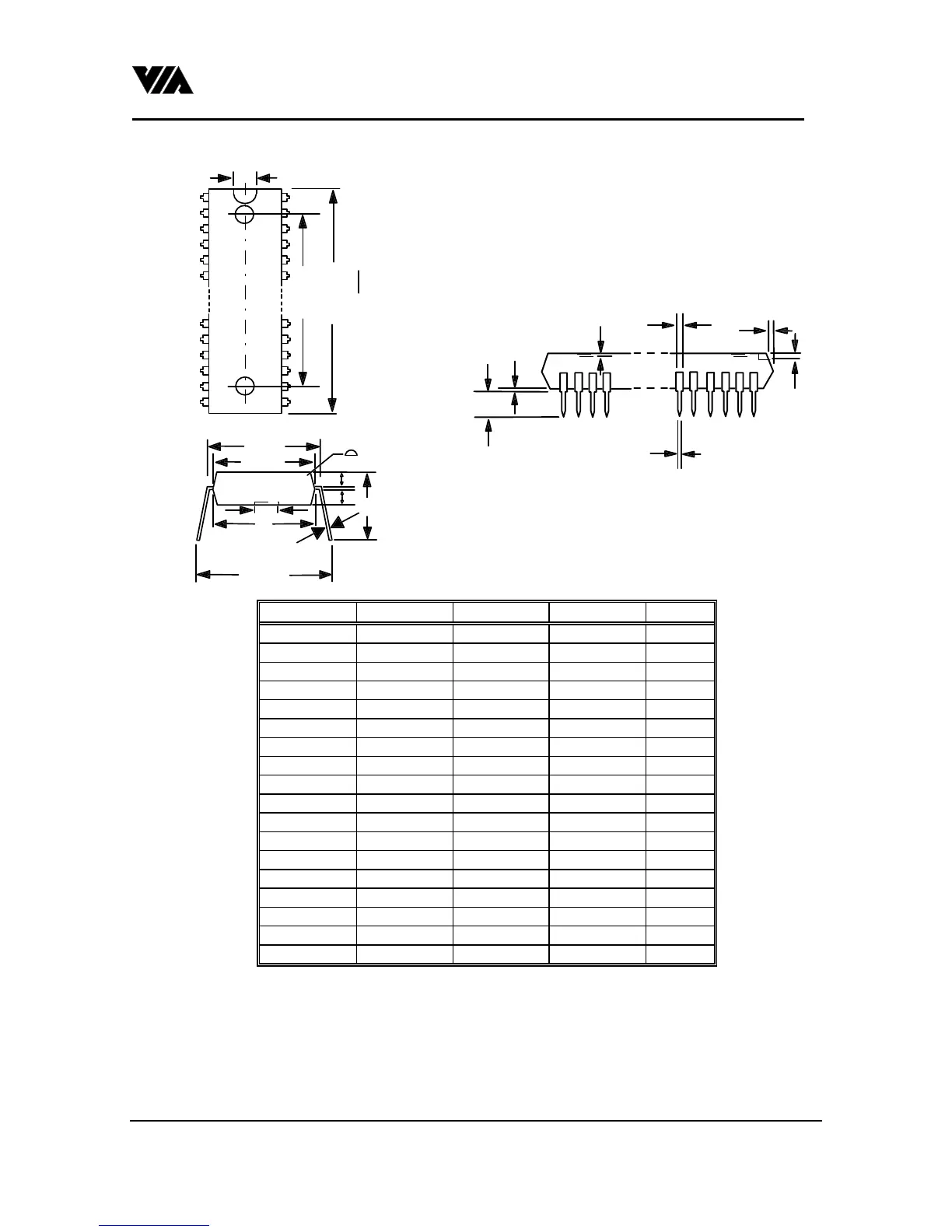

Fig 12.
40-Pin P-DIP
Table 6.
Dimension Minimum Typical Maximum Units
A 2.040 2.050 2.060 inches
B 1.530 1.540 1.550 inches
C 0.065 0.070 0.075 inches
D 0.546 0.550 0.554 inches
D1 0.550 0.554 0.558 inches
D2 0.130 0.150 0.170 inches
E 0.600 0.612 0.624 inches
F 0.630 0.650 0.670 inches
G - 0.010 - inches
H 0.066 0.070 0.074 inches
I - - 0.310 inches
J 0.015 - - inches
K - - 0.100 inches
L 0.016 0.018 0.02 inches
M - 0.050 - inches
N - 0.015 - inches
O - 0.007 - inches
P 0.030 0.035 0.040 inches
AB
C
E
F
G
D
D1
H
H
I
D2
0.01
