7

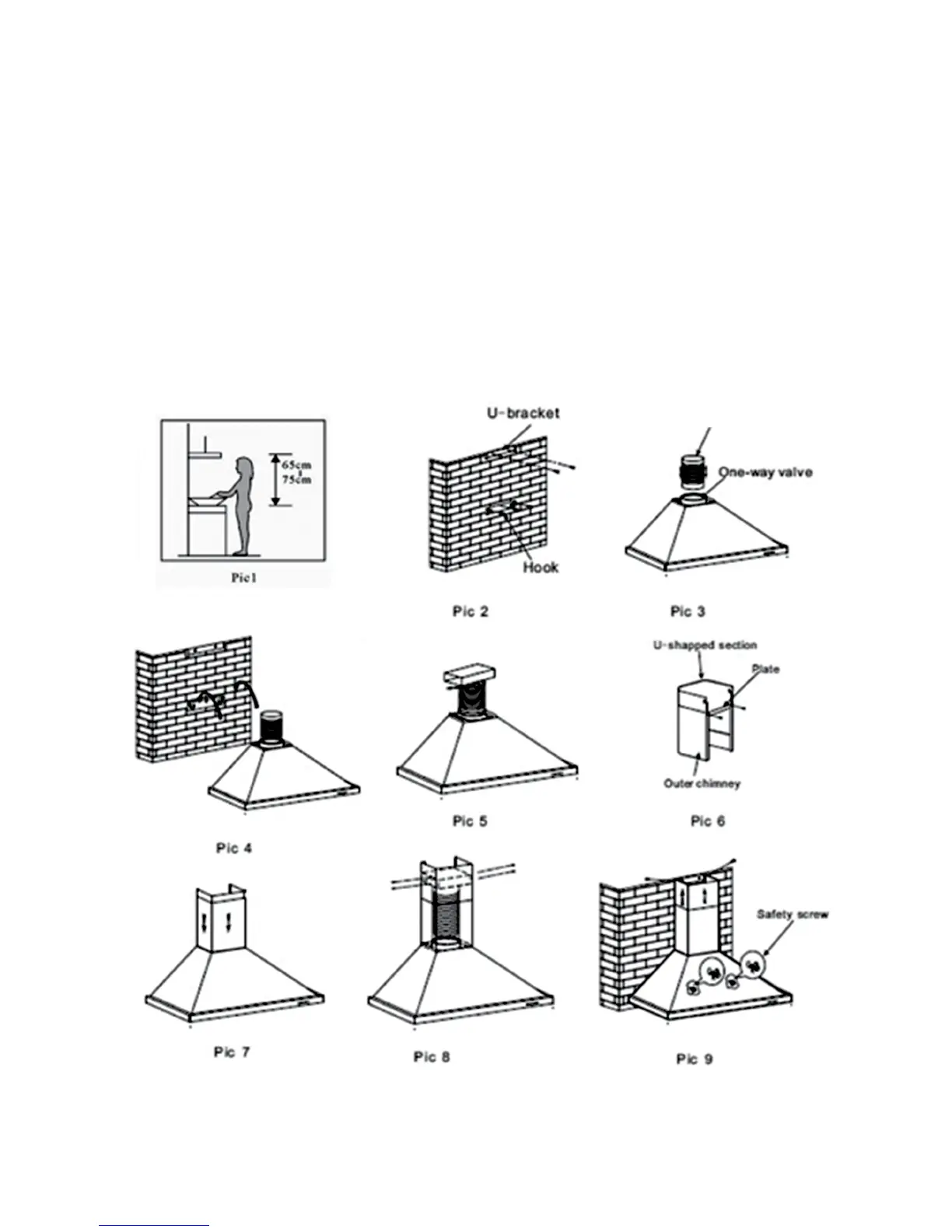

7. Install the chimney and screw the T-piece metal outlet to the inside chimney,
See Pic 7 and 8.
8. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it by screw, after adjusting the position, fix the body with safety screw.
See Pic 9.
NOTE: The two safety vents are positioned on the back casing, with diameter of 6mm.
T-piece valve and ducting are optional extras.
WARNING: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.
Ducting
