☆ Transmitter Setup For The JR DSX11
JR-CCPM plays a critical role in coordinating the simultaneous activating of multiple servos to control
the swashplate. Activation of just a single servo would not lead to control of the swashplate - the three
swashplate servos must be controlled in a coordinated fashion. The setup of these servos di󱐯ers from that for
other control functions which control just one servo (for example, the Rudder).
The initial settings given here must be conrmed on the bench, and then ne tuned after test ying the
helicopter. Prior to commencing this process, conrm all the trim levers and trim knobs on the transmitter are in
their neutral (zero) positions. Also shift all switches to position”0” (switches moved away from the operator).
Please also be familiar with the instructions for the transmitter. The initial settings can be entered into the
transmitter without turning power on to the receiver. Please note that ne adjustment will be needed after test
ying the helicopter.

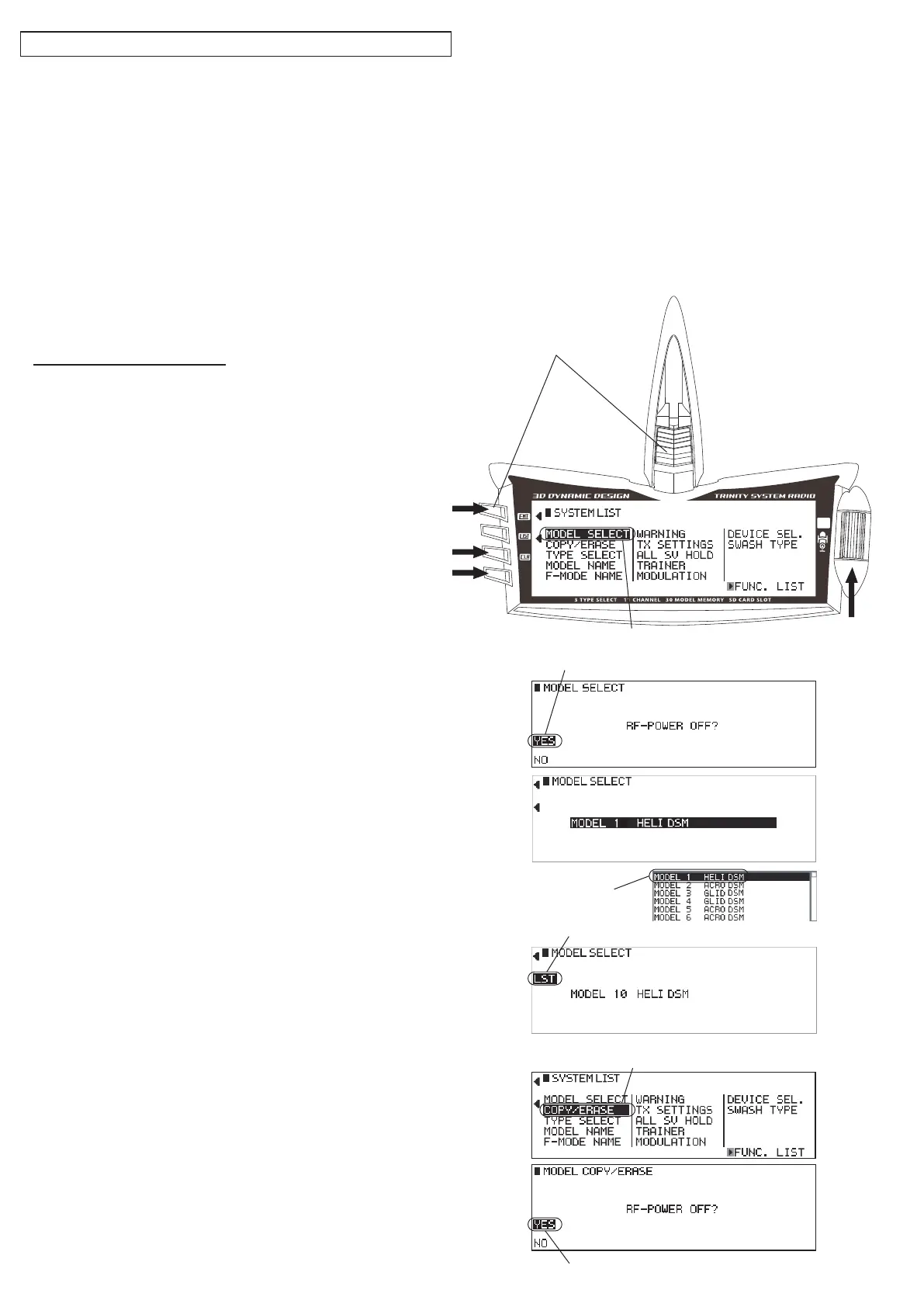

1. Initial Radio Setup
① Press (and hold) the 【ENT】key located on the
lower left of the Transmitter, then turn on the power
switch.
(「SYSTEM LIST」, List screen displayed)
② Turn the dial on the right side of the Transmitter to
select 「MODEL SELECT」 and press the dial.
* If your radio is new or if you are selecting a model
number which has no data in it, No.11 display will
be shown automatically.
③ Turn the dial to select 「YES」 and press the dial.
④ Turn the dial to select the model number you wish
to resete and press the dial again to select it.
⑤ Turn the dial to select the【LIST】key to return to
「SYSTEM LIST」 .
⑥ Turn the dial to select 「COPY/ERASE」 and press
the dial.
⑦ Press the 【CLR】Key to select YES.
③ Select「YES」
⑦ Select「YES」
② Select「Model SELECT」
⑤ Select「LST」
①【ENT】+【ON】
④ Select the model to be
reset.
⑨
⑭
③,⑦
⑩,⑯
② , ④〜⑥
⑧ , ⑩〜⑬ , ⑮
⑥ Select「COPY/ERASE」
