CONNECTORS AND CONTROLS - 8 @ continued

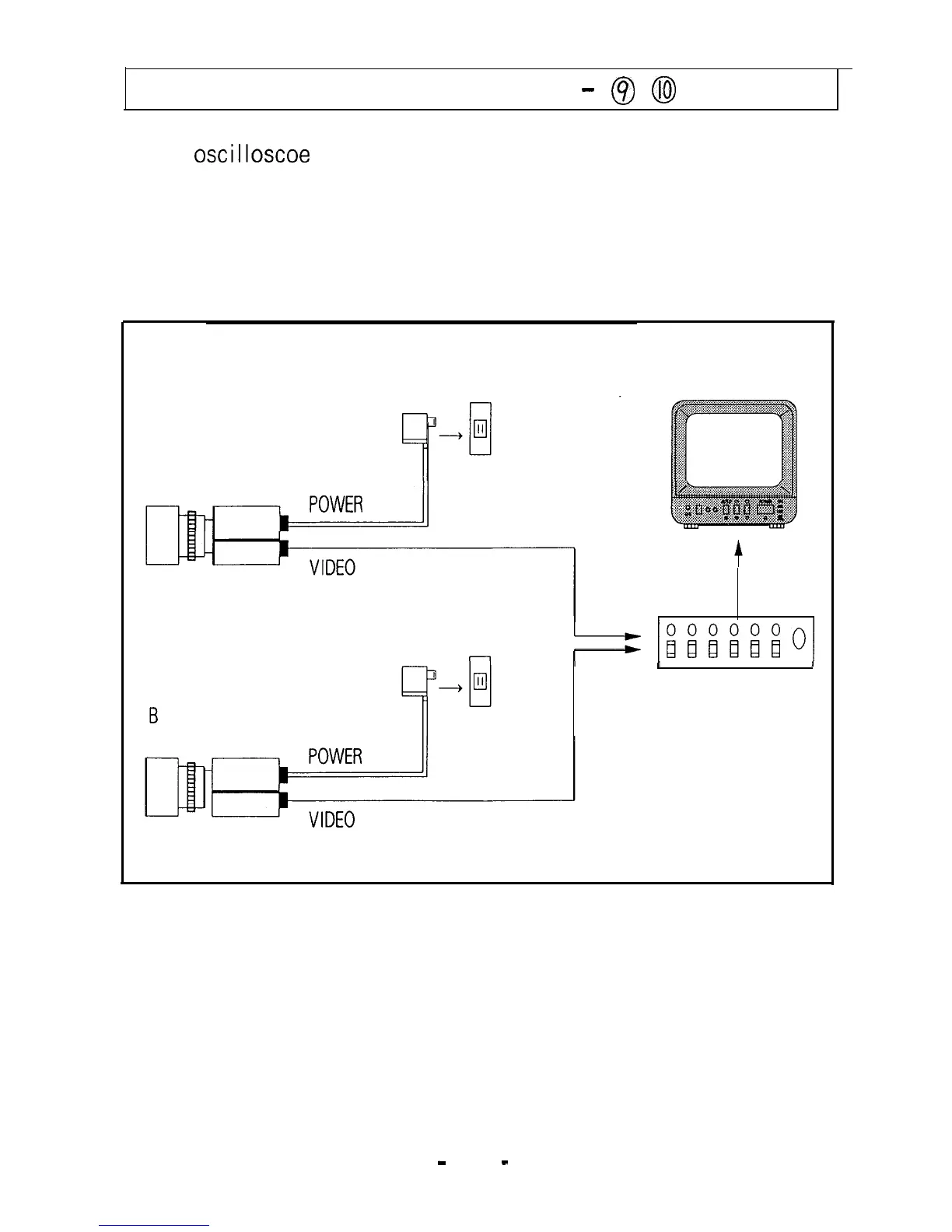

If no oscilloscoe is available, a less accurate adjustment can be
made by observing the monitor and adjusting the V-phase control
push button until no roll occurs on the monitor when switching
back and forth between cameras A and B,
A
MONITOR
AC ADAPTOR
VIDEO
I I
SEQUENTIAL
SWITCHER
