VICSONIC S7 - Product Component Description; Vacuum Cleaner Parts Schematic

2

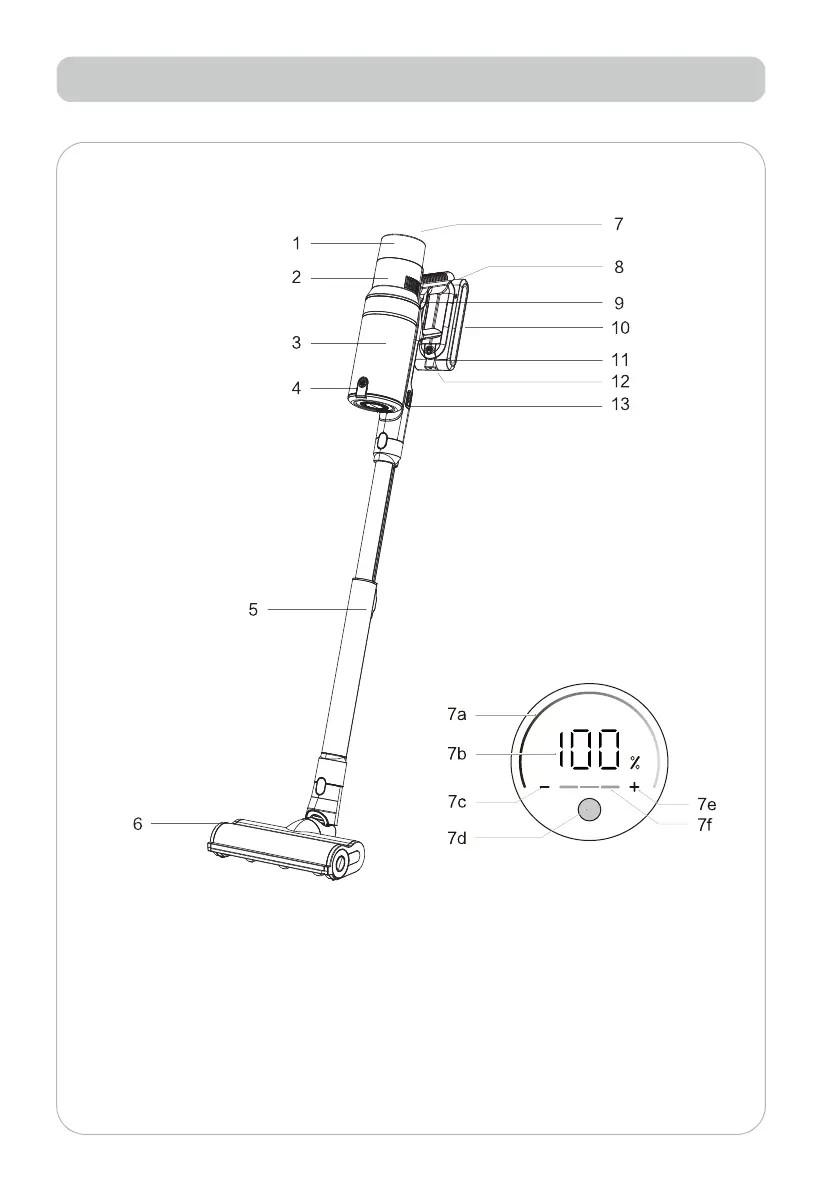

Schematic diagram of vacuum cleaner parts
1.Dustindicator 2.Airoutlet 3.Dustcollectioncup
4.Dustcupopenbutton 5.Takeoverthetube 6.Electricfloorbrush
7.LEDdisplaymodule 7a.Powerdisplaybar 7b.Battery/alarmdisplay
7c.Manualdownshifttouchbutton 7d.Self/manualswitchbutton
7e.Manualupshifttouchbutton 7f.Manualgearpositionindication
8.Handle 9.Switchbutton 10.Batterypack
11.Batterypackreleasebutton 12.Chargingport
13.Dustcupreleasebutton
Product component description
