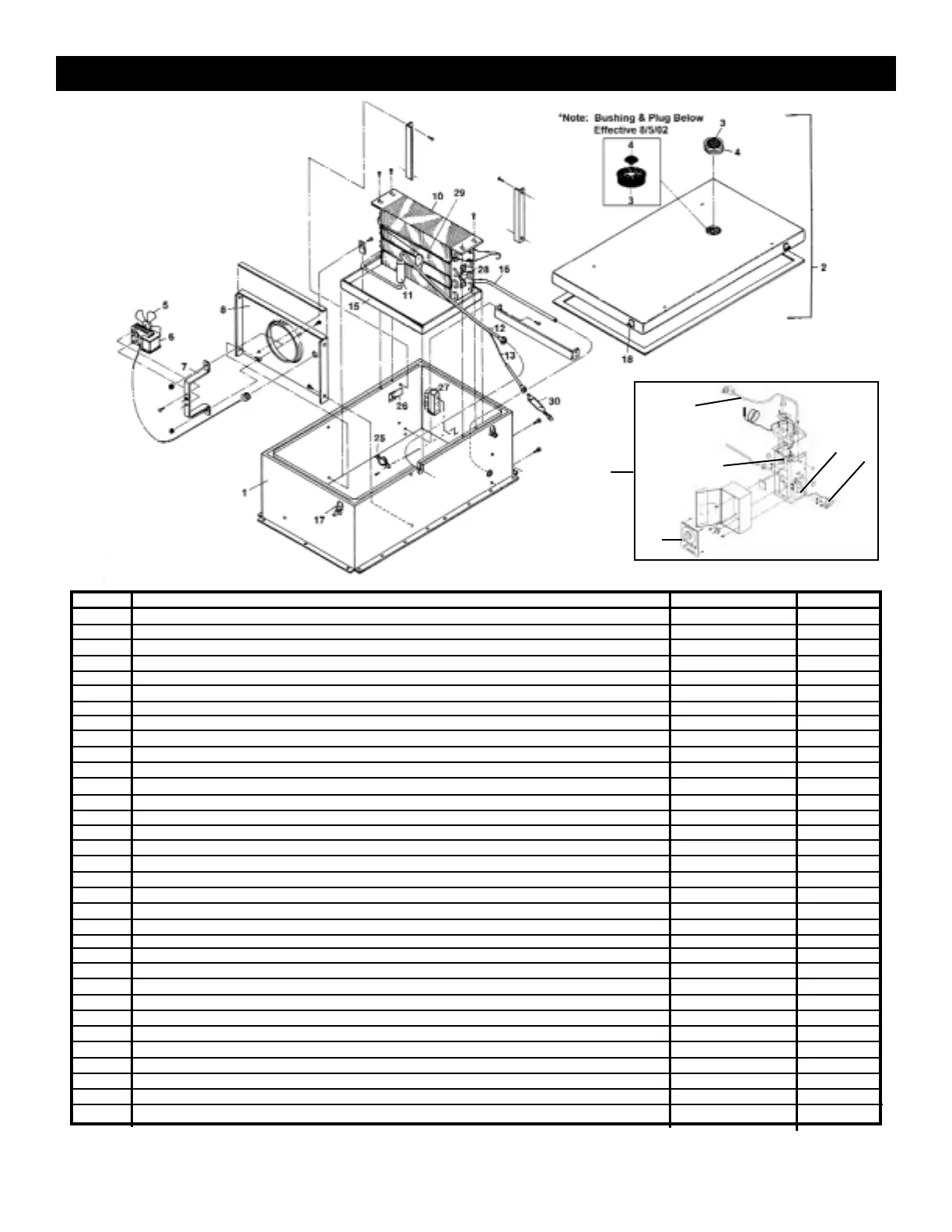

One Section Freezer Components
Electrical Box Assembly
Item Description Part Number Quantity
1 Evaporator Housing Assembly 10534201 1
2 Evaporator Housing Assembly Cover 10534102 1
3 Screen, Vent - * for Cabinets Built Prior to 8/5/02 50177401 1
3 Bushing, Snap - * for Cabinets Built After 8/5/02 50880201 1
4 Vent, Breather - * for Cabinets Built Prior to 8/5/02 50097901 1
4 Bumper, Rubber - * for Cabinets Built After 8/5/02 50240301 1
5 Fan Blade, Evaporator 50598001 1
6 Fan Motor, Evaporator 50639801 1
7 Bracket, Evaporator Fan Motor 04415201 1
8 Fan Panel 04404803 1
9 Electrical Box Assembly 10806301 1
10 Coil, Evaporator 50617201 1
11 Accumulator 50180701 1
12 Heat Exchanger 10723101 1
13 Capillary Tube 50793601 2
14 Temperature Control 50616101 1
15 Drain Pan, Evaporator 10511103 1
16 Drain Line 50245001 1
17 Latch, Lock 50554302 4
18 Latch, Strike Hook 50554303 4
19 Terminal Board, 1 to 4 50684401 1
20 Cordset, Heater and Light 50836801 1
21 Harness, Cord and Plug 115v/15A 50828201 1
22 Harness, Condenser Unit Receptacle 50837101 1
23 Drain Pan, Condensate (not shown) N/A -
24 Defrost Timer 50197302 1
25 Heater Safety (2 wire) 50599401 1
26 Probe Bracket 50244101 1
27 Junction Block 50606001 1
28 Fan Delay (3 wire) 50599501 1
29 Defrost Heater 50620501 1
30 Liquid Line Dryer 50730801 1
31 Power Relay 50369401 1
9
19
20
21
22
24
10
*Note: All field replacement parts
may not be stated on this
parts list. For additional
information or assistance,
contact the factory.
To Next Page
