(*NOTE: WARRANTY DOES NOT COVER GLASS BREAKAGE! THE GLASS PANEL IS NOT SERVICEABLE. ENTIRE DOOR MUST BE REPLACED.)
Vision panel door is interchangeable with standard solid door. Door is left / right reversible
by inverting hinge mounting.
*Vision panel door is intended for operation in maximum 85
°°
F, 55% RH environment for
refrigerated case (38
°°
F) applications only!

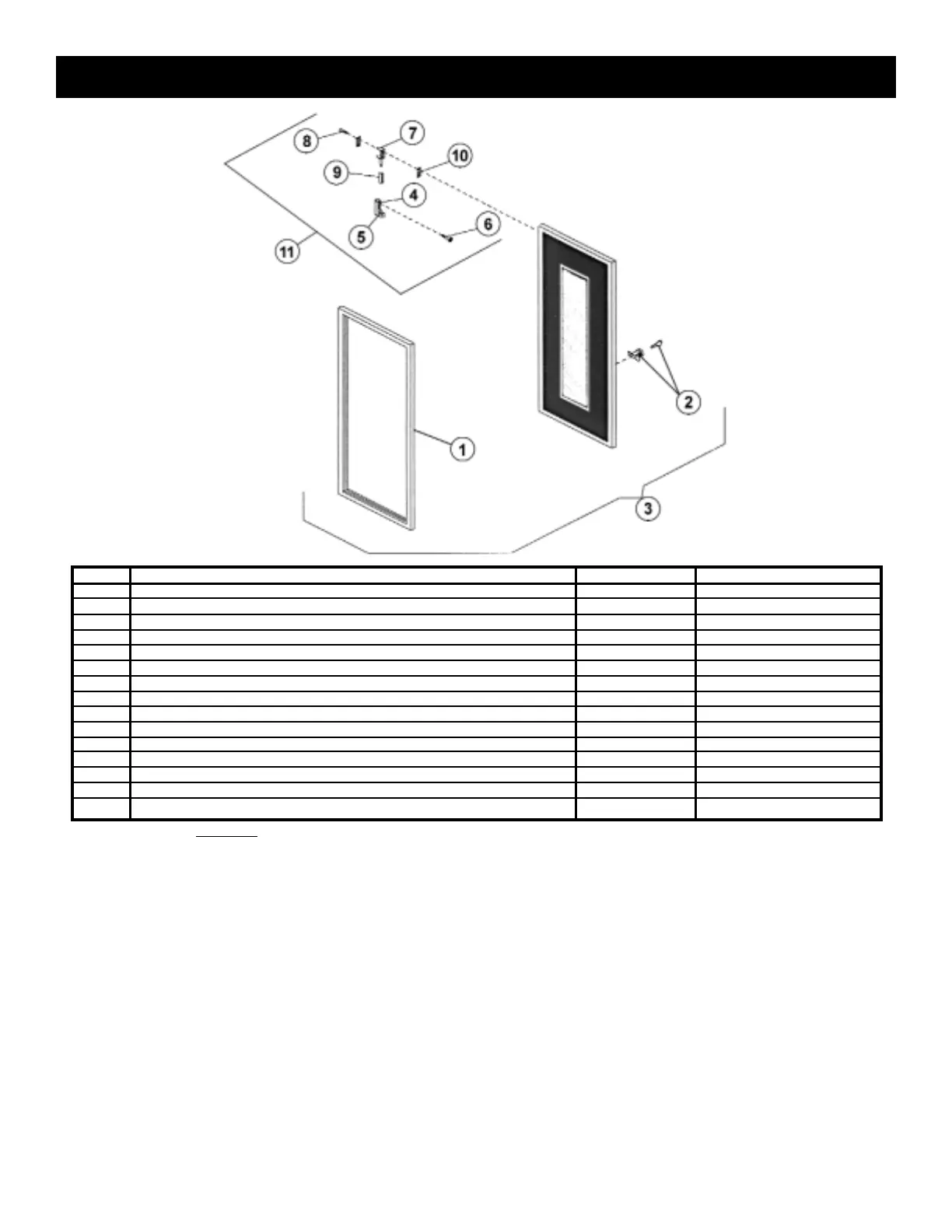

Hinged Vision Panel Door Parts
Item Description Part Number Quantity
1 Door Gasket, Full
- * Cabinets Built Prior to 9/3/02 50827801 1 per full length door
1 Door Gasket, Full -* Cabinets Built After 9/3/02 50879501 1 per full length door
2 Lock & Key Set 50597107 1 per door
3
Ass’y, LH Full Door w/ Vision Panel & Rectangular Handle - * Prior to 9/3/02 10791107 1 per cabinet section
3
Ass’y, LH Full Door w/ Vision Panel & Coved Handle -
* After 9/3/02 10818301 1 per cabinet section
3 Ass’y, RH Full Door w/ Vision Panel & Rectangular Handle - * Prior to 9/3/02 10791108 1 per cabinet section
3 Ass’y, RH Full Door w/ Vision Panel
& Coved Handle -
* After 9/3/02 10818302 1 per cabinet section
4 Base, Hinge 50520103 1 per hinge assembly
5 Cam, Hinge 50520106 1 per door
6 Base Screw, Hinge 50678801 3 per hinge assembly
7 Barrel, Hinge 50520102 1 per hinge assembly
8 Barrel Screw, Hinge 50678801 2 per hinge assembly
9 Cover, Hinge 50520105 1 per hinge assembly
10 Shim, Door 05312701 *available upon request
11 Hinge Assembly, Top or Bottom 10685101 2 per door
