Viessmann OpenTherm Installation And Service Instructions For Contractors

15

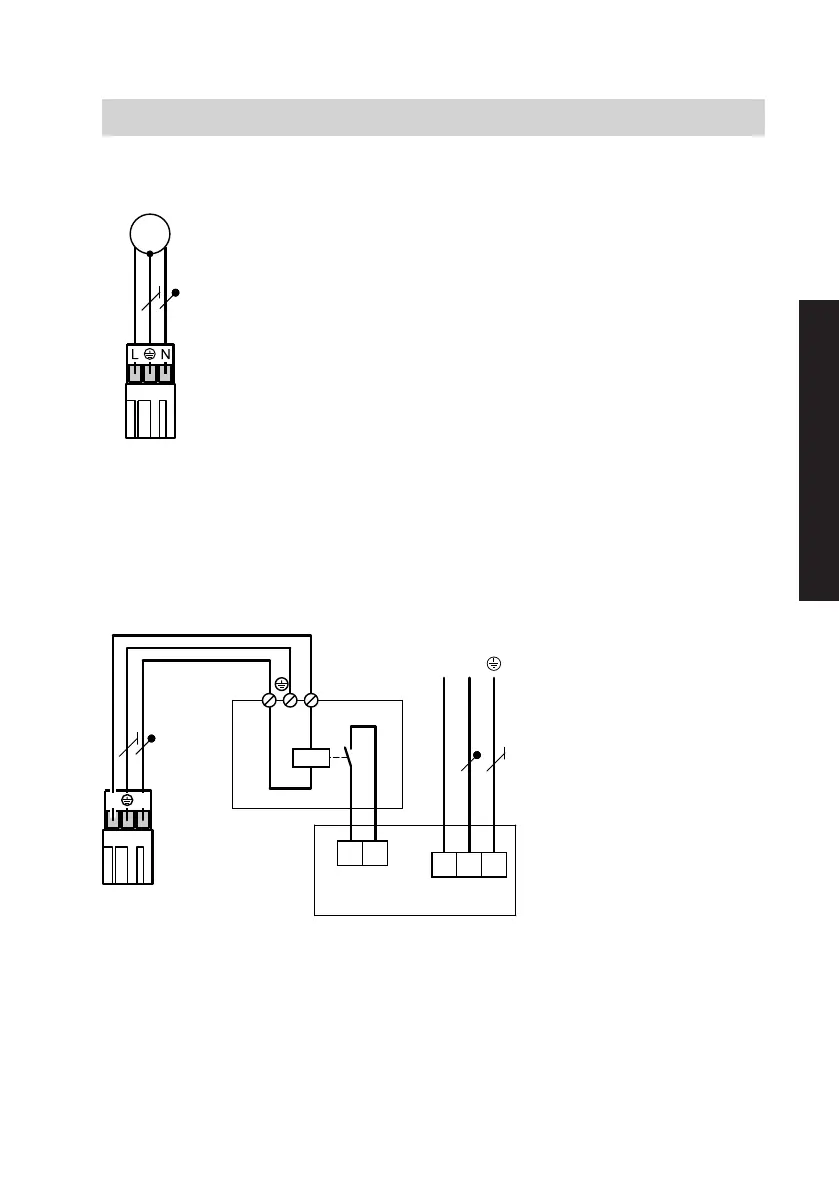

Heating circuit pump 230 V~
sÖ
A
1~
M
A/B
A
Heating circuit pump
sÖ A/B
Mains connection on extension
kit
For allocation of the heating circuit
pumps see page 12.
Specification
Rated current 2(1) A
Recommended
connecting cable
H05VV-F3G 0.75
mm
2
or
H05RN-F3G 0.75
mm
2
Heating circuit pump with power consumption greater than 2 A
LN
Ext.
ON/OFF
L
N
N PE
NL
L
C
B
A
sÖ
sÖ A/B
Plug on extension kit
A
Heating circuit pump
B
Contactor
C
Separate power supply
(observe manufacturer's
instructions)
For allocation of the heating circuit
pumps see page 12.
Installation sequence
Connecting the heating circuit pump
(cont.)
5837721
