Fitting the Solar−Divicon (cont.)
1. Pull the upper section of the
thermal insulation forwards.
2. Secure the valve assembly
together with the lower part of the
thermal insulation.
3. Installation with copper pipes
Insert the support sleeves into the
interconnecting pipes of the solar
circuit.
Alternative:
Installation with stainless steel
solar circuit pipe
Trim (free of burrs) in the valley of
the corrugation; do not damage
the peak of the corrugation. Fit the
union nut, half washer (in the fifth
valley) and O−rings (in the first and
third valley).
4. Insert a support sleeve into the
connection pipe to the expansion
vessel and secure on the safety
assembly.
5. Secure the blow−off line with the
safety valve from the safety
assembly; ensure the correct
orientation of the locking ring.
Note
The blow−off line must terminate
in an open container.
6. Route the connecting cable for the
circulation pump downwards
through the cable duct and
connect to the solar control unit.
Installation and service
instructions  solar
control unit

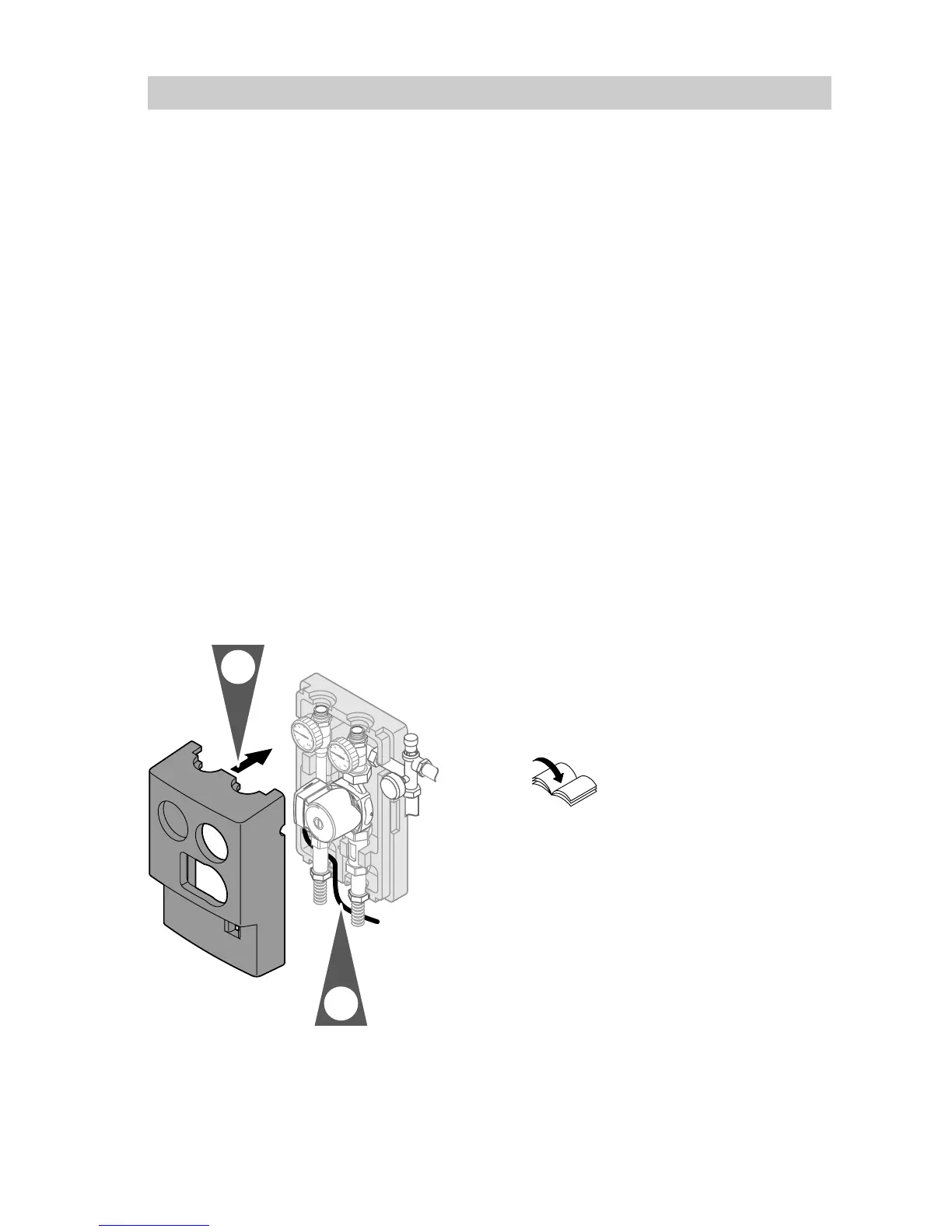

7. Push the thermal insulation over
the valve assembly.
8. Push the thermal insulation of the
pipework into the recesses of the
thermal insulation of the
Solar−Divicon.
5862810GB
6.
7.
