Viessmann VITOCAL 111-S - Page 38

38
Outdoor units
Heat pumps with 230 V~ outdoor unit
Types Cable Max. cable length Max. fuse rating
111.B04
111.B06
3 x 2.5 mm
2
31 m B13A
Or
3 x 4.0 mm
2
32 m
111.B08
3 x 2.5 mm
2
20 m B20A
Or
3 x 4.0 mm
2
32 m
111.A12
111.A14
111.A16
3 x 4.0 mm
2
25 m B32A
Or
3 x 6.0 mm
2
39 m
Heat pumps with 400 V~ outdoor unit
Types Cable Max. cable length Max. fuse rating
111.A12
111.A14
111.A16
5 x 2.5 mm
2
60 m 3 x B13A

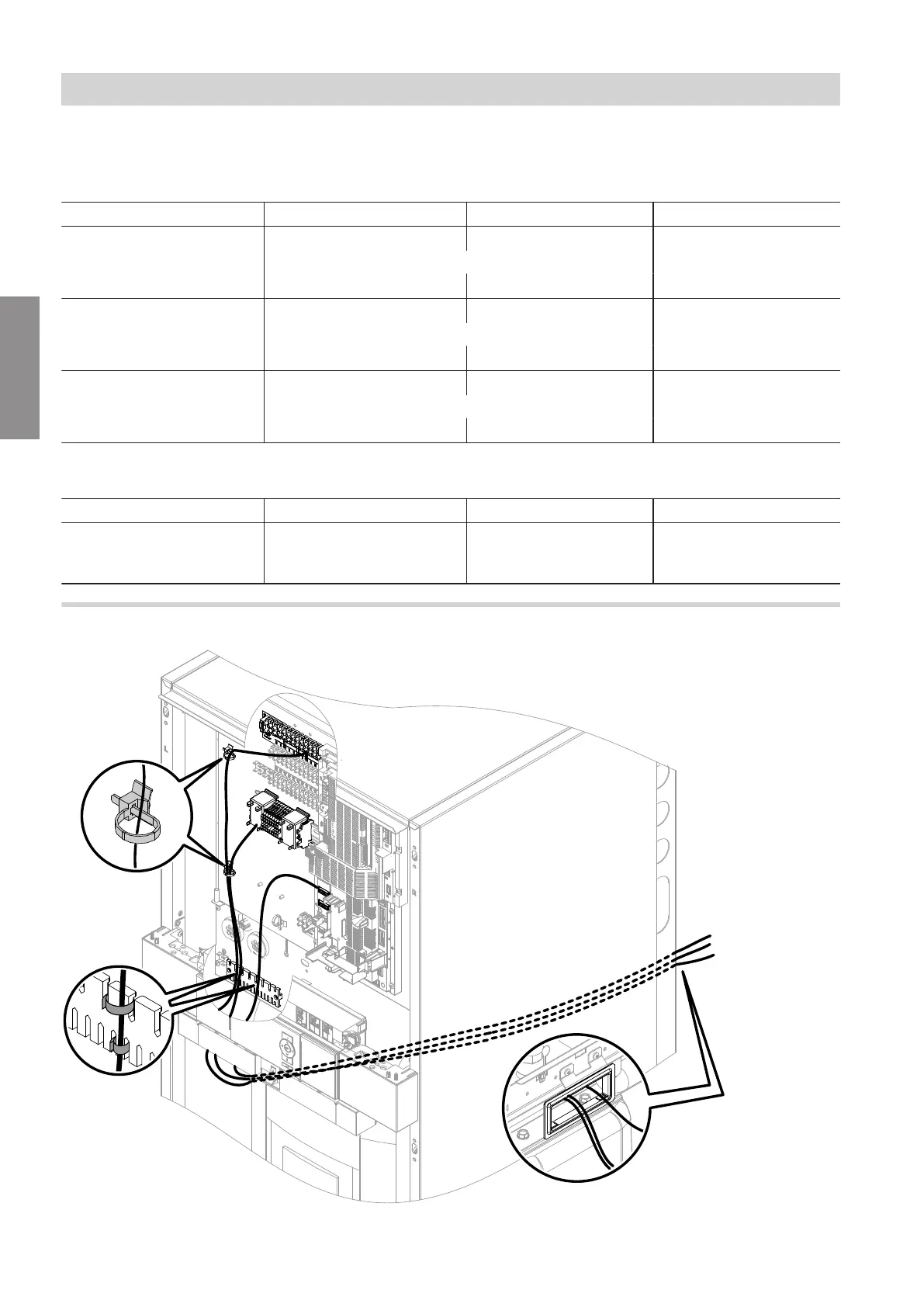

Indoor unit: Routing cables to the wiring chamber
230 V/400 V
< 42 V
Fig. 28
Installation sequence
Electrical connection (cont.)
6199592
Installation
