89
E
Hot gas temperature sensor (discharged, RT16)
F
Safety high pressure switch (pHi)
G
High pressure switch (pHi)
H
Defrost temperature sensor (defrosting, RT14)
K
Electronic expansion valve
L
Filters
M
Low pressure switch (pLo)
N
Filter
O
Hot gas line
P
Liquid line
R
Compressor
S
Liquid separator
T
Fan
U
Evaporator

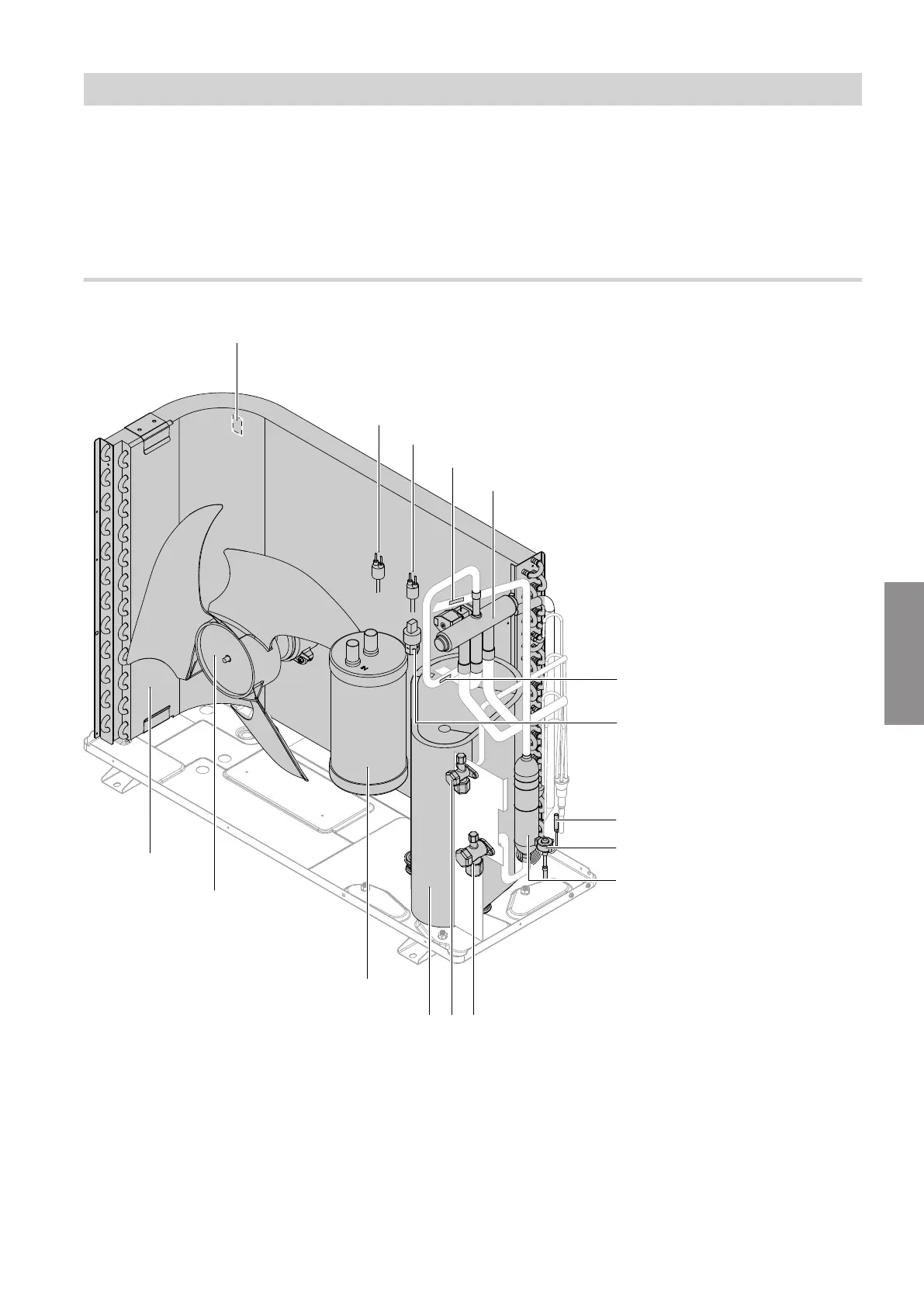

Outdoor unit with 1 fan: Types 111.B08
G
H
K
L
M
N
P
R
S
F
E
D
C B A
O
Fig. 73
A
Liquid line
B
Hot gas line
C
Compressor
D
Liquid separator
E
Fan
F
Evaporator
G
Air inlet temperature sensor (outdoor, RT15)
H
Low pressure switch (pLo)
K
High pressure switch (pHi)
L
Suction gas temperature sensor (suction, RT17)
M
4-way diverter valve
N
Hot gas temperature sensor (discharged, RT16)
O
High pressure sensor
P
Defrost temperature sensor (defrosting, RT14)
R
Electronic expansion valve
S
Oil separator
Maintenance
Outdoor unit: Overview of internal components (cont.)
