2.4 Install Mounting Part
9.
(1) Find out the arrow on the gimbal which indicating the yaw heading
of the payload (i.e. the lens direction when the camera power on), and
synchronize with the direction specified by the UAV.

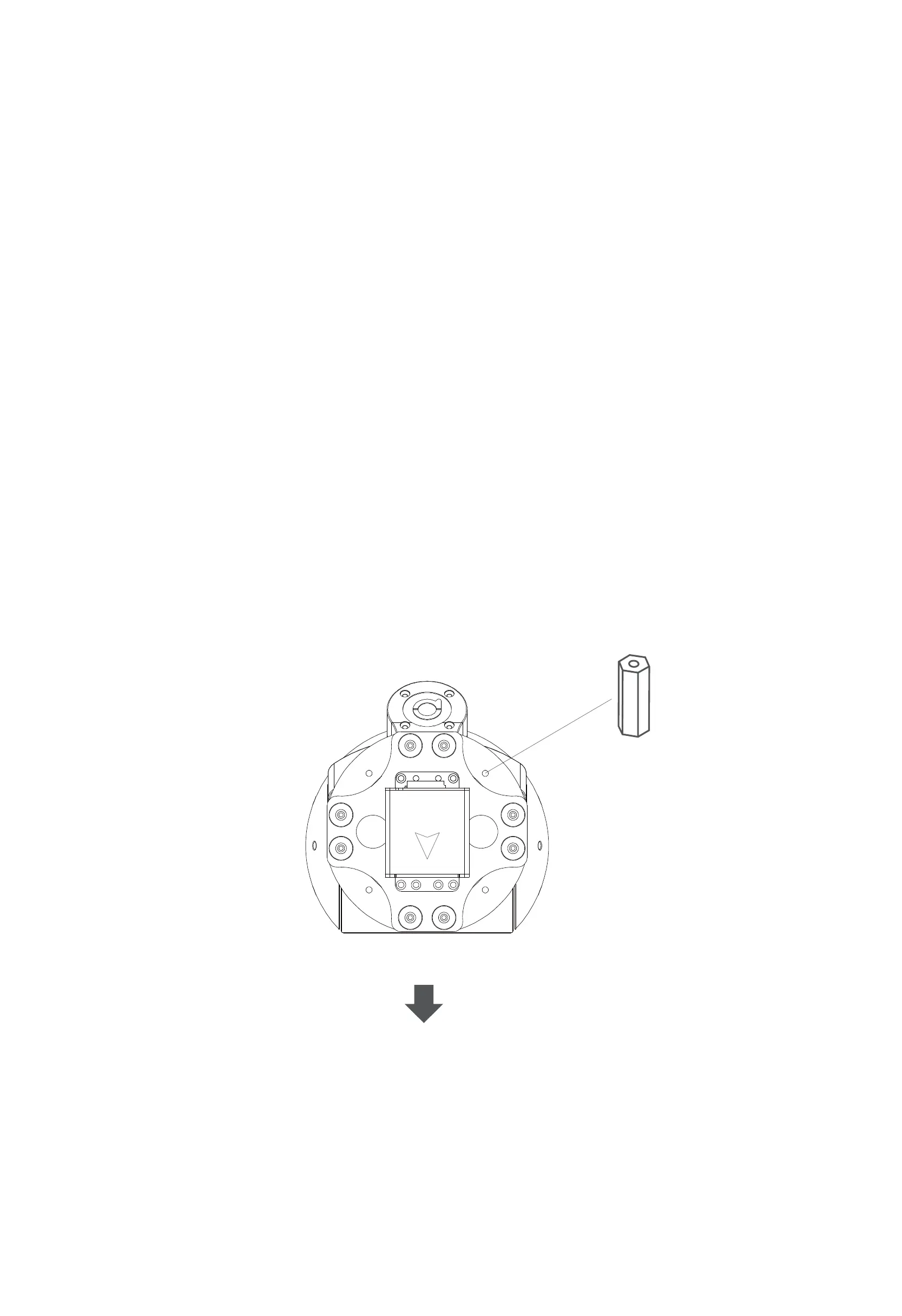

(2) Fix one end of the copper cylinder on the screw hole of lower damp-
ing board, and use M3 screw to fasten it.
(3) According to the provided screw hole dimension you can make suit-
able mounting holes on the UAV mounting board, and fixes the other
end of the copper cylinder on the mounting board of the UAV (Viewport
version is the same).
Front
To Next Page
