GND
5V
S.BUS
TTX
RXD
GND
TXD
20.
S.Bus control mode: default S.Bus signal channel 9-15 to control
gimbal camera functions (the function of channel is consistent with
corresponding channel in PWM function description)
Channel 9: Yaw Control
Channel 10: Pitch Control
Channel 11: Mode Control
Channel 12: Zoom Control
Channel 13: Focus Control
Channel 14: Pic/Rec Control
Channel 15: Multi Backup

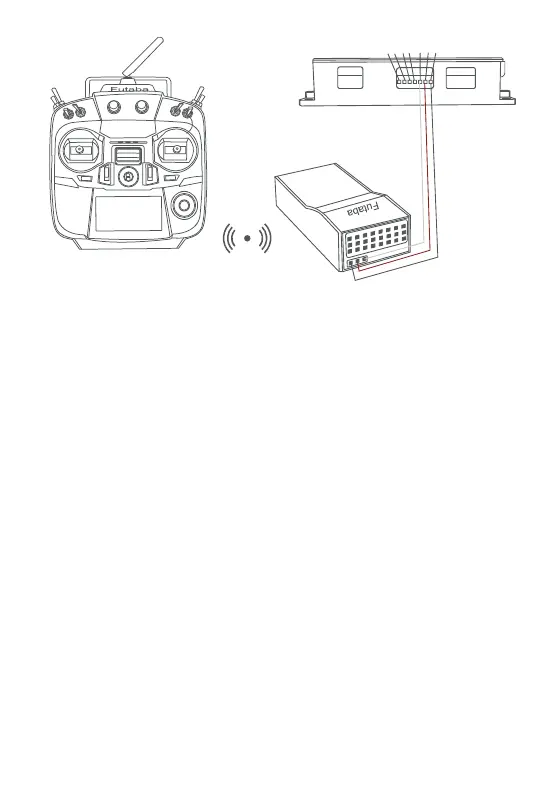

Remote Control
Receiver
Wiring Diagram Viewport Version
