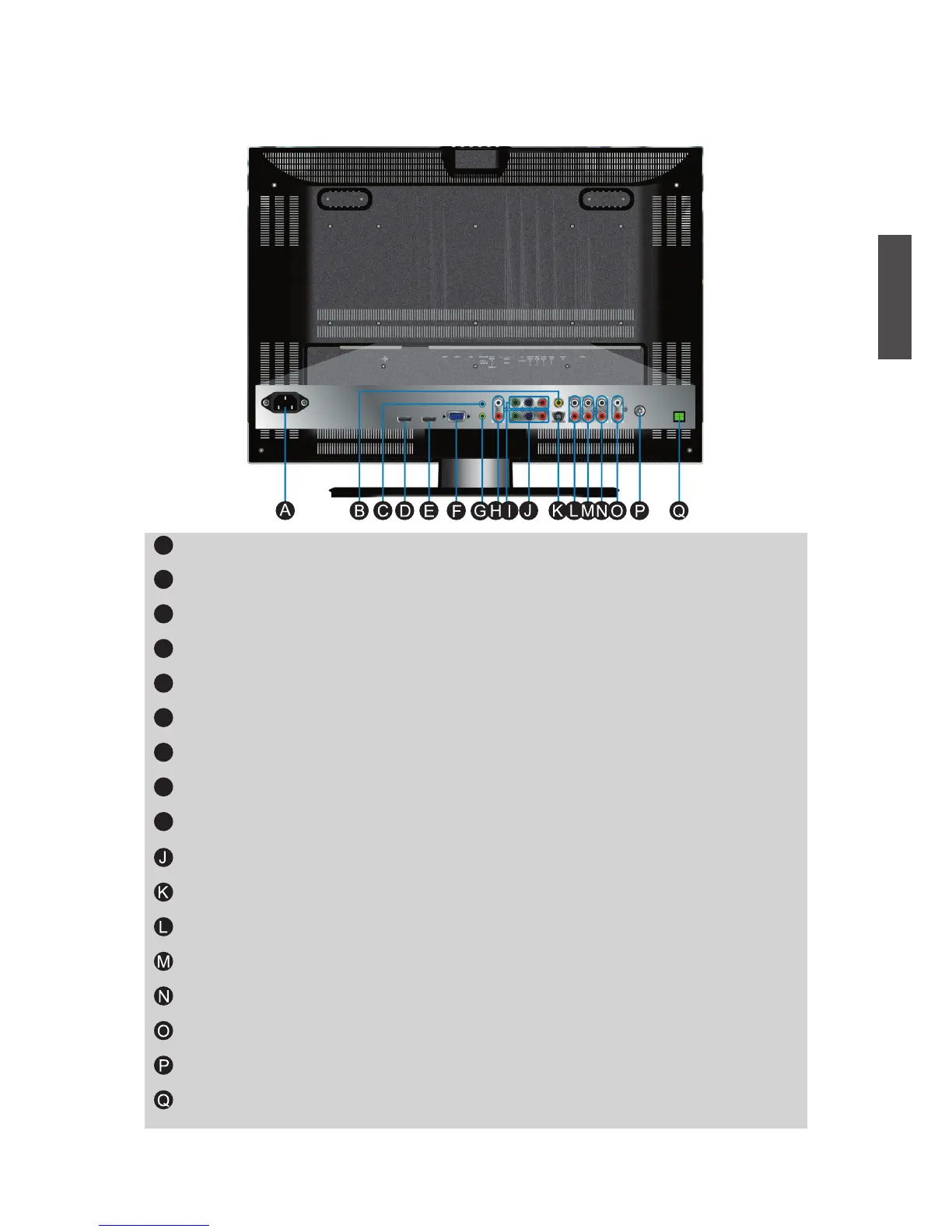

Rear View of the Product
Power (AC input)
Using power cord provided, connect to a power source.
Composite Video input
Connect this port to the composite video output of A/V device.
Headphone Jack
Connect this port to your headphone.
HDMI 2 / DVI 2 Input Terminal
Connect this port to the HDMI output of A/V device.
HDMI 1 / DVI 1 Input Terminal
Connect this port to the HDMI output of A/V device.
VGA signal input
Connect this port to the VGA output of your PC.
VGA/ DVI 1 Audio input
Connect this port to PC line out jack.
DVI 2 signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
YPbPr 2 signal input
Connect this port to the YPbPr output of A/V device.
YPbPr 1 signal input
Connect this port to the YPbPr output of A/V device.
S-Video input
Connect this port to the S-Video output of A/V device.
YPbPr 2 signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
YPbPr 1 signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
AV/ S-Video signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
Audio output
Connect this port to your A/V device with audio in (RCA) connectors or to audio amplifier.
Air/Cable input jack
Connect the coaxial (RF) connector from Antenna/ Cable/ Digital cable.
SPDIF Optical output
Connect this port to the SPDIF input of A/V device.
