ViewSonic VB-STND-009 User Manual

9

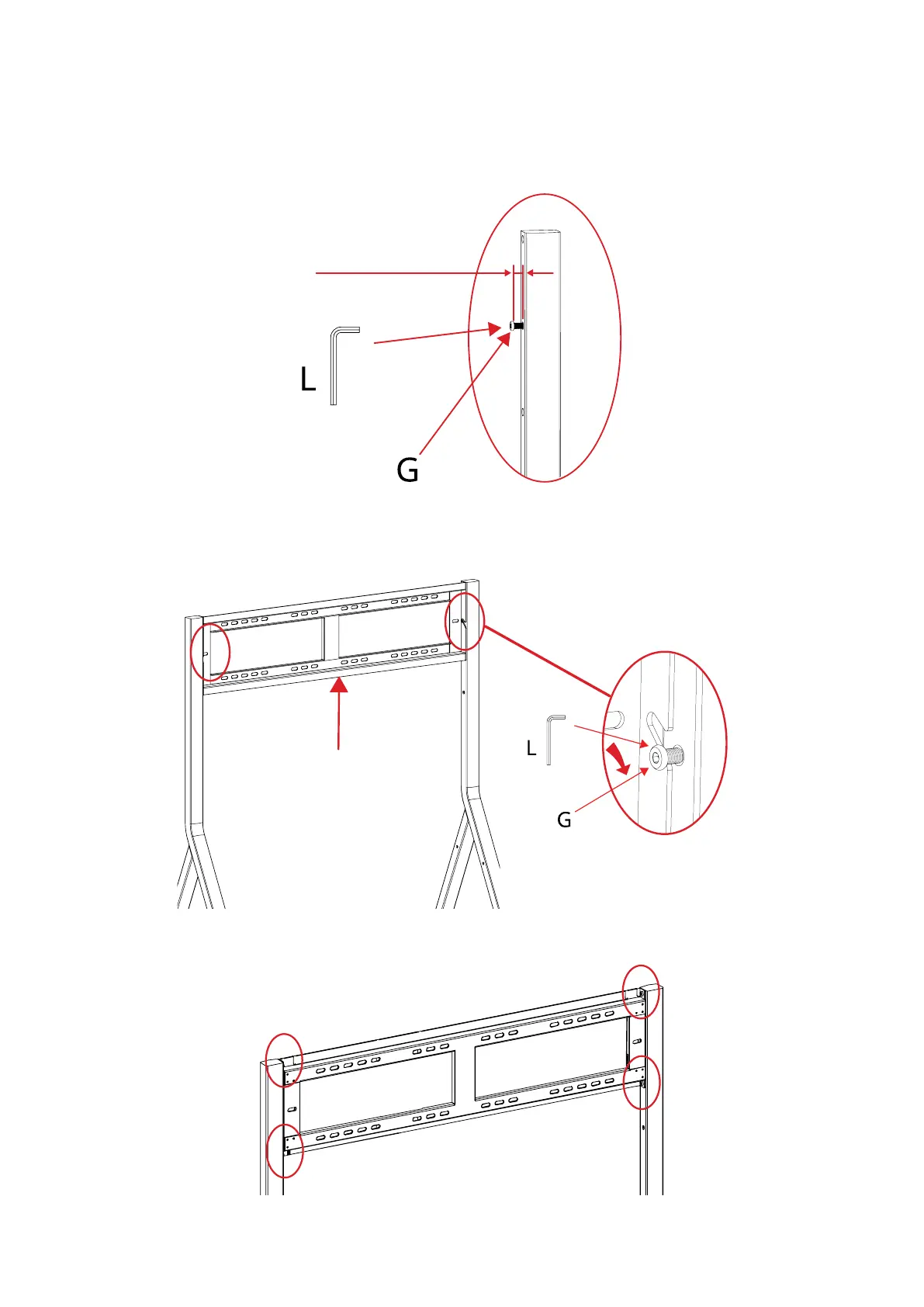

4. Aer choosing the appropriate combinaon, screw one M8x16 mm Screw (G)
halfway into the middle mounng hole of the chosen combinaon into each
Column (A & B).
NOTE: Ensure at least 8 mm of the M8x16 mm Screw (G) is scking out.
Reserve 8 mm
D
5. Hang the Wall Plate (D) onto the two halfway screwed M8x16 mm Screws (G).
Once hung, fully ghten both M8x16 mm Screws (G).
Reserve 8 mm
D
Reserve 8 mm
D
6. Screw in the remaining four M8x16 Screws (G) to fully secure the Wall Plate (D).

ViewSonic VB-STND-009 Specifications

General

Brand	ViewSonic
Model	VB-STND-009
Category	Racks & Stands
Language	English
